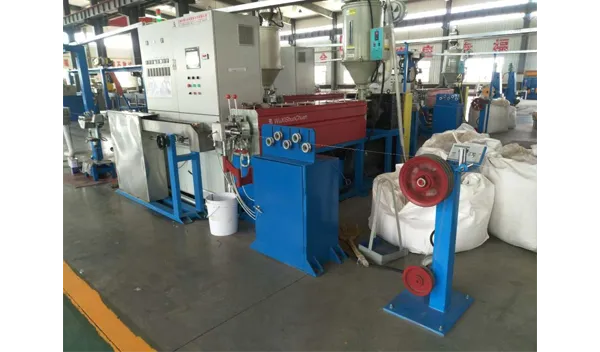

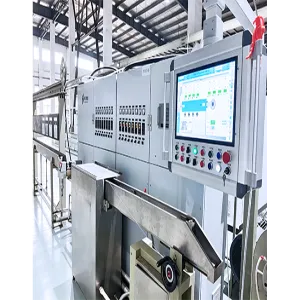

1. What Is a 30 Insulation Extrusion Production Line?

The 30 Insulation Extrusion Production Line is an industrial extrusion system used to apply an insulation layer around a conductor or form an extruded insulating product continuously. The basic principle is easy to understand. The conductor or material moves through the production line, insulation material is processed by the extruder, and the material is formed around the product through an extrusion die.

After extrusion, the insulated product passes through the downstream section for cooling, guiding, inspection, and take-up. The exact configuration depends on the type of wire or cable being produced.

The number “30” is part of the product model name. I do not recommend treating it as a guaranteed production speed, output, or product diaMeter without checking the complete technical specification. In industrial extrusion, actual performance depends on many factors, including the material, conductor size, insulation thickness, die design, extrusion conditions, line configuration, and production requirements.

This is an important point when comparing an insulation extrusion machine. A larger or smaller model is not automatically better for every product. The correct machine is the one that matches the product and production process.

What Does the Line Actually Do?

In simple terms, the production line performs several connected jobs:

• It supplies the insulation material to the extrusion system.

• It processes the material under controlled operating conditions.

• It forms the insulation layer around the conductor or product.

• It cools and stabilizes the extruded insulation.

• It guides the finished wire or cable through the downstream equipment.

• It takes up the finished product for storage or the next production stage.

These steps may sound basic, but they need to work together smoothly. If one part of the line is not properly matched with another, operators may have difficulty maintaining stable production.

That is why we treat the 30 Insulation Extrusion Production Line as a complete system rather than simply selling an individual extruder.

Typical Production Flow

A typical insulation extrusion process can be understood as:

Material Preparation → Feeding → Extrusion → Die Forming → Cooling → Product Guiding → Take-Up

The exact arrangement can change according to the customer's product and equipment configuration. For example, a photovoltaic cable may have different requirements from an electronic wire, while an automotive wire may require another production setup.

Source: Wuxi Shuochuan product information and general extrusion production process structure. Actual equipment configuration is confirmed according to each customer's requirements.

2. How Does the 30 Insulation Extrusion Production Line Work?

One of the questions I often receive is how an insulation extrusion line actually works. The answer is not complicated. The line continuously moves the conductor or base product forward while the extruder processes the insulation material and applies it around the product.

Step 1: Preparing the Material

Every extrusion project starts with the material. The insulation material must be suitable for the intended wire or cable product. Depending on the application, manufacturers may use different types of insulating materials.

The machine configuration should therefore be considered together with the material. I always recommend confirming the exact material before finalizing the production line because different materials can behave differently during extrusion.

Step 2: Feeding the Extruder

The insulation material enters the extrusion system through the feeding section. Stable feeding is important because irregular material supply can influence the extrusion process.

For continuous wire and cable production, operators normally want the material flow to remain as steady as possible. This helps the extruder maintain a more consistent production condition.

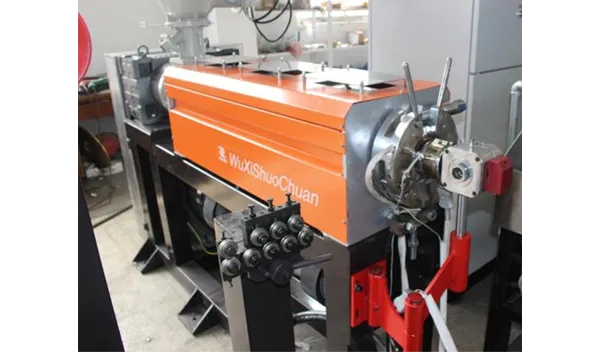

Step 3: Extrusion

Inside the extruder, the material is processed and moved forward continuously. Depending on the material and equipment design, process conditions such as temperature and pressure need to be controlled appropriately.

I do not recommend using one fixed parameter set for every wire product. The correct extrusion conditions depend on the insulation material, conductor structure, product dimensions, and production requirements.

Step 4: Die Forming

The processed insulation material reaches the extrusion die. The die is responsible for forming the insulation around the conductor or base product.

This is one of the most important areas of the process because the finished insulation thickness and shape depend on the relationship between the conductor, material flow, die design, and operating conditions.

For a manufacturer producing different wire sizes, die selection and changeover should be considered carefully. A production line that is easy to adjust can make daily production more practical.

Step 5: Cooling

After the insulation leaves the die, it needs to be cooled and stabilized. Cooling helps the newly formed insulation maintain its shape as the wire or cable continues through the line.

The cooling method and equipment arrangement depend on the product and complete production configuration. The goal is simple: the insulation should remain stable as the product moves toward the take-up section.

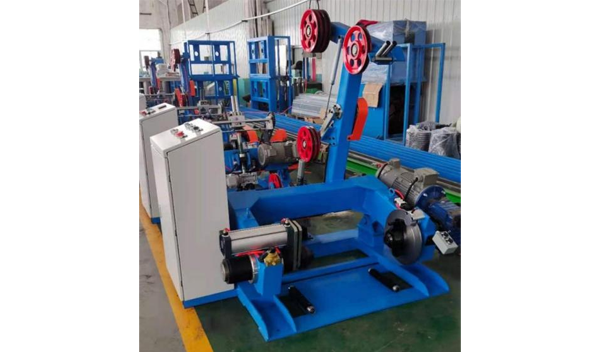

Step 6: Take-Up

At the end of the process, the insulated wire or cable is collected. A suitable take-up system allows continuous production and keeps the finished product organized.

For me, this is where the value of a complete wire insulation extrusion production line becomes clear. The extruder creates the insulation, but the downstream equipment helps turn the extrusion process into a complete manufacturing workflow.

3. Main Features of Our 30 Insulation Extrusion Production Line

When customers ask me about the main features of the 30 Insulation Extrusion Production Line, I normally focus on practical points rather than complicated technical language.

Continuous Production

The line is designed for continuous extrusion. This is important for manufacturers producing wire and cable in long lengths because continuous processing can provide a more efficient production workflow than producing short sections separately.

Stable Material Processing

Reliable material feeding and controlled extrusion are important parts of stable production. The line is designed to support consistent material processing so operators can maintain a predictable working condition.

Consistent Insulation Forming

For insulated wires and cables, the insulation layer needs to meet the product design requirements. Stable extrusion and suitable die configuration help manufacturers work toward consistent product forming.

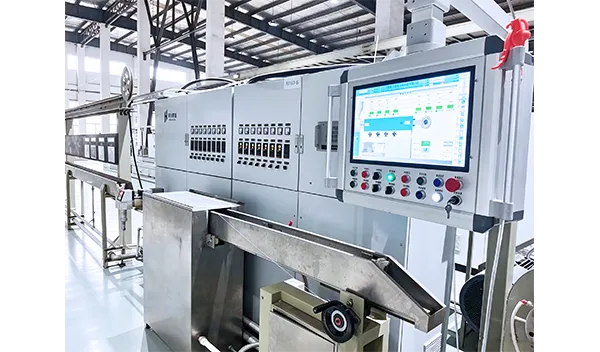

Practical Automation

Our company focuses on automated equipment that is efficient, energy-conscious, and friendly for operators. We believe automation should reduce unnecessary manual work while keeping the production process understandable.

In a real factory, operators still need to monitor the machine, adjust parameters, perform routine checks, and respond to production changes. Good equipment should support these tasks rather than make them harder.

Flexible Configuration

Not every wire or cable product requires the same production setup. The configuration can be discussed according to product structure, material, dimensions, production requirements, downstream equipment, and factory conditions.

Suitable for Different Wire and Cable Applications

The insulation extrusion process is used in many areas, including photovoltaic wires, automotive wires, electronic wires, network communication cables, charging cables, and other insulated wire products.

The final machine configuration should always be confirmed according to the actual product instead of assuming that one configuration is suitable for every application.

Human-Friendly Operation

We put practical operation into the equipment design. A machine may contain technical systems such as temperature control, extrusion control, electrical control, and process monitoring, but the operator still needs to use the machine comfortably during a normal working day.

Source: Wuxi Shuochuan equipment design information and general industrial extrusion practices. Specific features depend on the final machine configuration.

4. Technical Advantages: What I Check Before Choosing an Insulation Extrusion Machine

There is no single machine that is automatically suitable for every wire and cable factory. When I help customers consider an insulation extrusion machine, I prefer to start with the product and then work backward toward the equipment.

Material Comes First

The first question is usually: what insulation material will you use?

This matters because material behavior can affect feeding, extrusion, temperature control, die design, cooling, and other parts of the process. Before confirming the machine, we need to understand the actual material used in production.

Product Size Matters

The conductor diameter, finished wire diameter, insulation thickness, and product structure all influence equipment selection.

A small electronic wire and a larger industrial cable may both require insulation extrusion, but their production conditions can be quite different. The machine should be configured according to the actual product.

Production Requirements Need to Be Clear

Customers often ask about production capacity first. That is understandable, but capacity should not be considered alone.

Required output, line speed, product quality, material behavior, product dimensions, and operating conditions are connected. A machine that runs very fast but cannot maintain stable product quality is not necessarily a good production solution.

Temperature Control

Temperature is an important part of extrusion. The correct processing temperature depends on the insulation material and production process.

Our approach is to confirm the actual material and process requirements before deciding on the final equipment configuration. This is safer and more practical than publishing one general temperature range for every application.

Die Design

The die is directly related to the final shape of the insulation layer. For wire and cable applications, die selection should match the conductor, insulation material, finished dimensions, and production requirements.

If a customer produces several different products, we also need to discuss how often the products change and how the production team handles die changes.

Cooling and Take-Up

These two areas are sometimes overlooked because the extruder receives most of the attention. In continuous wire production, however, the downstream process can have a direct impact on production stability.

Cooling needs to stabilize the insulation, while take-up needs to collect the finished wire without creating unnecessary problems.

Maintenance

I also recommend considering maintenance before buying the machine. Production equipment will eventually need cleaning, inspection, adjustment, and replacement of wear parts.

Operators should have reasonable access to important components, and the manufacturer should provide useful technical documents for installation and operation.

Factory Layout

A complete production line needs sufficient space for installation, operation, material supply, product movement, finished-product collection, and maintenance.

Before manufacturing, we can discuss the available factory conditions with the customer. This helps avoid unnecessary changes after the equipment reaches the production site.

Source: Wuxi Shuochuan equipment selection practice. Final technical specifications are confirmed individually with each customer.

5. Applications of the 30 Insulation Extrusion Production Line

The 30 Insulation Extrusion Production Line is mainly related to insulated wire and cable manufacturing. Because wire and cable products are used almost everywhere, the potential application areas are broad.

Photovoltaic Wire and Cable

Photovoltaic systems require specialized wires and cables for electrical connections. Manufacturers producing these products need stable extrusion processes to form the insulation or protective layer around the conductor.

Our company provides photovoltaic wire and cable production lines, so we understand that photovoltaic cable production needs to be considered as a complete process rather than only an extrusion step.

Automotive Wire

Modern vehicles contain a large number of electrical circuits. Automotive wire products need suitable insulation and reliable production quality.

An automotive wire extrusion production line may include extrusion, cooling, take-up, and other supporting processes depending on the product design.

Electronic Wire

Electronic equipment uses many types of small and flexible wires. The finished products may have different dimensions and insulation requirements.

For these products, stable material flow and controlled extrusion are important because even small changes in the insulation layer can affect the finished wire.

Network Communication Cable

Communication networks depend on cable systems for signal transmission and equipment connections. Manufacturers producing communication cables need production equipment that can maintain stable and repeatable processing conditions.

Charging Pile Cable

Electric vehicle charging infrastructure requires suitable power and signal cables. Charging cables can involve specific material and construction requirements, so the extrusion configuration should be matched to the actual cable design.

General Cable Manufacturing

Beyond these specific applications, insulation extrusion equipment can be used in many other cable production processes. The suitable machine depends on the insulation material, conductor, finished cable structure, production requirements, and applicable product standards.

Electrical Products

Electrical equipment and components can use insulated wires for power connections, control systems, and internal wiring. Manufacturers may choose different insulation materials depending on the operating environment and product requirements.

New Energy Equipment

The growth of new energy equipment has created demand for many types of specialized wires and cables. Battery systems, charging systems, power equipment, and related electrical products may all require insulated conductors.

For these applications, the production line needs to be matched to the actual cable design rather than simply selected by industry name.

Source: Wuxi Shuochuan product range and application information supplied for wire and cable production equipment. Actual product suitability depends on the specific application and applicable standards.

6. How We Manufacture, Test, Package, and Deliver the Production Line

For an industrial production line, the manufacturing process does not begin when the machine is switched on. It begins much earlier, with technical communication.

Technical Discussion Before Production

Before we start manufacturing, we confirm the customer's product information and equipment requirements. We normally need to understand the material, product structure, product size, expected production conditions, equipment configuration, factory requirements, and delivery schedule.

This step may take some discussion, but I believe it saves time later. It is much easier to solve a technical question before manufacturing than after the machine has already arrived at the customer's factory.

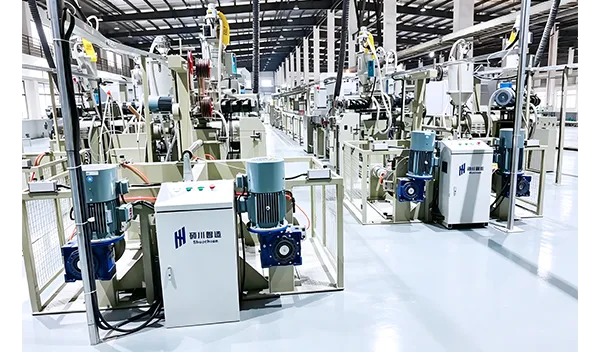

Equipment Manufacturing

After the technical requirements are confirmed, the production line is manufactured according to the agreed configuration.

Our company integrates research and development, manufacturing, and sales. We have obtained more than ten utility model patent certificates, reflecting our ongoing investment in equipment development and technical improvement.

Our goal is not simply to make an extruder that runs. We want to develop equipment that can support efficient production and practical daily operation.

Assembly and Testing

Before shipment, the complete equipment is assembled, tested, and inspected according to the agreed specifications.

Testing is particularly important for a production line because several sections need to work together. It is not enough to check only the main extruder. The feeding, extrusion, downstream handling, control, and other necessary sections need to be considered as part of the complete system.

Production Lead Time

The production period depends on the machine model, configuration, customization requirements, and order quantity. A relatively standard machine may have a different schedule from a customized production line.

For this reason, I do not recommend promising the same delivery time for every project. After we confirm the technical details, we can provide a project-specific production schedule.

Standard Delivery

Standard delivery generally includes the complete 30 Insulation Extrusion Production Line, necessary components, technical documents, accessories, and other items specified in the confirmed order.

The exact delivery list depends on the contract and final equipment configuration. A detailed packing list should be checked before shipment.

Payment Terms

Payment terms are normally arranged according to the contract. A common arrangement is a deposit before production and the balance before shipment.

For customized industrial equipment, the final payment arrangement should always follow the signed commercial agreement between the customer and our company.

Transportation

We can arrange transportation by sea, air, or land depending on the destination, equipment size, delivery schedule, and project requirements.

For international shipments of large production equipment, sea transportation is often a practical option. However, the best method depends on the specific project.

Packaging

Industrial equipment can face vibration, humidity, impact, and repeated handling during transportation. We therefore normally use moisture-resistant materials, protective cushioning, strong export wooden cases, or pallets.

Good packaging is not just about appearance. It is part of equipment protection. The machine needs to remain properly protected during loading, transportation, unloading, and temporary storage before installation.

7. Why Choose Shuochuan for Your Insulation Extrusion Production Line?

There are many equipment manufacturers in the extrusion industry, so I understand why customers want to know what makes a supplier worth considering.

For us, the answer starts with technical experience and continues with communication, manufacturing, testing, and service.

R&D, Manufacturing, and Sales in One Company

Wuxi Shuochuan Electromechanical Equipment Manufacturing Co., Ltd. is an innovative technology enterprise integrating R&D, manufacturing, and sales.

This structure allows us to stay close to the equipment throughout the project. We can discuss technical requirements, manufacture the equipment, test the machine, and communicate with customers during delivery and use.

More Than Ten Utility Model Patent Certificates

We have obtained more than ten utility model patent certificates. For us, patents are not simply numbers for a brochure. They reflect our effort to improve machine structure, functions, and production solutions.

Experience Across Wire and Cable Applications

Our product range covers high-speed extruders, BV extrusion automatic production lines, BVVB automated production lines, photovoltaic wire and cable production lines, automotive wire production lines, electronic wire production lines, network communication wire production lines, charging pile cable production lines, take-up and unwinding equipment, and auxiliary equipment.

This broader product background helps us understand how an insulation extrusion machine fits into a complete wire and cable factory.

Focus on Efficient and Practical Equipment

We aim to create equipment that supports efficient production while keeping operation practical. Energy use, automation, production stability, and operator experience all matter when a machine runs for long hours.

I believe a production machine should not be unnecessarily complicated. Operators need to know what the machine is doing and what they need to check during normal operation.

Quality First, Continuous Improvement, and Honest Service

“Quality First, Continuous Improvement, and Honest Service” is the corporate spirit we follow at Shuochuan.

In practical terms, this means we prefer clear technical communication and realistic equipment recommendations. If a customer has a special requirement, we discuss it. If more information is needed before confirming a configuration, we ask for it.

The company has also provided information about ISO 19001 quality management system certification. For formal procurement, compliance, or contractual use, customers should verify the current certificate and applicable certification standard directly with Shuochuan before relying on this information for official purposes.

We Think About the Whole Production Process

When I discuss an insulation extrusion production line, I do not want to talk only about the extruder. The final result depends on the complete production path.

Material feeding, extrusion, die forming, cooling, guiding, take-up, operator control, factory layout, and maintenance all have a role.

This whole-line approach is especially useful for customers who are building a new wire and cable production line or upgrading an existing factory.

8. FAQ About the 30 Insulation Extrusion Production Line

What is the 30 Insulation Extrusion Production Line used for?

The 30 Insulation Extrusion Production Line is designed for continuous insulation extrusion applications. It can be considered for insulated wires, cables, photovoltaic wires, automotive wires, electronic wires, communication cables, charging cables, and other suitable products.

What does “30” mean in the product name?

“30” is part of the equipment model name. It should not automatically be interpreted as a guaranteed production speed, output, or finished wire diameter. The actual technical specifications need to be confirmed according to the complete machine configuration.

What materials can the line process?

The suitable insulation material depends on the specific equipment configuration and production application. Customers should provide the exact material information before ordering so we can evaluate the required processing conditions and configuration.

Can it be used for photovoltaic wire production?

It can be considered for suitable photovoltaic wire and cable applications. However, the final equipment configuration needs to match the actual photovoltaic cable structure, insulation material, product dimensions, and applicable production requirements.

Can it produce automotive wires?

Automotive wire is one of the application areas for insulation extrusion equipment. The exact machine setup depends on the automotive wire structure, material, dimensions, insulation requirements, and production conditions.

Can the production line be customized?

Yes, equipment configuration can be discussed according to the customer's actual requirements. Customization may involve the extrusion system, downstream equipment, control arrangement, take-up section, product requirements, or other parts of the production line.

How do I choose the correct insulation extrusion machine?

I recommend starting with the finished product. Provide the conductor information, insulation material, product drawing or sample, finished dimensions, expected production requirements, and available factory information. These details give us a much better basis for recommending a suitable configuration.

How long is the production lead time?

Production lead time depends on the model, equipment configuration, customization requirements, and order quantity. Once the technical requirements are confirmed, we can discuss a specific production and delivery schedule.

How is the machine tested before shipment?

Before shipment, the equipment is assembled, tested, and inspected according to the agreed requirements. We also check the complete production system and the cooperation between the necessary equipment sections.

What is included in standard delivery?

Standard delivery generally includes the complete production line, necessary components, technical documents, accessories, and other items specified in the confirmed order. The exact list depends on the final contract and configuration.

What payment terms do you accept?

Payment terms are normally arranged according to the contract. A common arrangement includes a deposit before production and the balance before shipment. Specific terms should be confirmed for each project.

How will the production line be transported?

Transportation can be arranged by sea, air, or land according to the destination, machine size, delivery schedule, and project requirements.

How is the machine packaged?

We normally use moisture-resistant materials, protective cushioning, export wooden cases, or pallets to help protect the equipment during loading, handling, transportation, and storage.

Can you provide auxiliary equipment?

Yes. Our product range includes various take-up and unwinding series, auxiliary equipment, and related equipment for wire and cable production. The exact supporting equipment can be discussed according to the complete production process.

Why should I consider a complete production line instead of only an extruder?

A complete production line allows the extrusion process and downstream handling to be considered together. Feeding, extrusion, die forming, cooling, guiding, and take-up all affect continuous production. Looking at the complete process can make equipment selection more practical.

Final Thoughts on the 30 Insulation Extrusion Production Line

The purpose of an insulation extrusion production line is quite simple: produce insulated wire and cable in a stable, continuous, and practical way.

But achieving that goal requires more than an extruder. The material needs to be suitable. The extrusion process needs to remain controlled. The die needs to match the product. Cooling needs to stabilize the insulation. The take-up system needs to handle the finished wire properly. And the operator needs a machine that is practical to use.

That is how I look at our 30 Insulation Extrusion Production Line.

For manufacturers working with photovoltaic wires, automotive wires, electronic wires, communication cables, charging cables, and other insulated wire products, the production line can provide a foundation for continuous extrusion manufacturing.

At Wuxi Shuochuan Electromechanical Equipment Manufacturing Co., Ltd., we combine R&D, manufacturing, and sales with a product range focused on wire and cable production equipment. We continue to improve our equipment with attention to efficiency, automation, energy use, production stability, and operator experience.

If you are searching for a 30 Insulation Extrusion Production Line, insulation extrusion machine, wire insulation extrusion production line, cable insulation extrusion machine, insulation extrusion equipment manufacturer, or wire and Cable Extrusion Production Line, the first step is to tell us what you are actually producing.

Share the insulation material, conductor structure, finished product size, production requirement, and any available product drawing or sample information. From there, we can discuss the suitable machine configuration and complete production process.

Our approach remains straightforward: Quality First, Continuous Improvement, and Honest Service. We want to build equipment that makes sense on paper and, more importantly, works in the customer's real production environment.
