When a plastic extrusion project needs to run continuously, the extruder is usually the part that deserves the most attention. A good machine does more than push melted plastic through a die. It needs to feed material steadily, control heat, keep the melt moving smoothly, and work well with downstream equipment such as cooling, traction, and take-up systems.

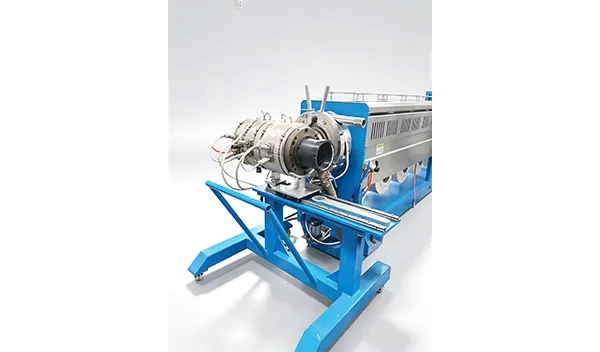

Our 65 Extruder is designed around this practical idea. At Wuxi Shuochuan Electromechanical Equipment Manufacturing Co., Ltd., we develop and manufacture extrusion equipment for industrial production, with a particular focus on wire and cable applications and automated extrusion lines. We do not treat the extruder as an isolated machine. Instead, we look at the complete Production Process and configure the equipment according to the material, product structure, output target, production conditions, and automation requirements.

The 65 Extruder can be used in different thermoplastic extrusion applications, including wire and cable manufacturing, photovoltaic Cable Production, electronic Wire Production, automotive wire production, plastic profiles, and other continuous plastic processing applications. The final configuration depends on the customer's product and process requirements.

One point is worth making clear from the beginning: the number “65” should not automatically be understood as the machine's production output. In extrusion equipment, a model number can represent a particular machine configuration or nominal size. Actual output depends on many factors, including material, screw design, screw speed, die design, temperature settings, cooling conditions, product size, and the complete line configuration.

1. What Is a 65 Extruder?

A 65 Extruder is an industrial Plastic Extrusion Machine used to process thermoplastic materials continuously. In a typical production process, plastic material enters the feeding section, is heated and plasticized inside the barrel, moves forward through the screw, and is finally pushed through a die to form the required product shape.

It sounds simple, but stable extrusion is actually a combination of several small things working correctly. Feeding needs to remain steady. Heating needs to match the material. The screw needs to move the melt without creating unnecessary process problems. The die needs to produce the required shape. After extrusion, the product normally needs cooling, sizing, traction, take-up, or other downstream treatment.

That is why we normally discuss a 65 Plastic Extruder together with the complete production process rather than looking only at the main machine.

For example, a customer making electrical wire may care about insulation thickness and line stability. A customer producing plastic profiles may focus more on dimensional consistency and die performance. A photovoltaic cable manufacturer may have different material and production requirements again. The basic extrusion principle is similar, but the machine configuration can be quite different.

Our approach is therefore straightforward: first understand what the customer wants to produce, then determine how the extrusion system should be configured.

The table above describes a general extrusion process rather than a fixed specification of every 65 Extruder configuration. Actual equipment arrangement should always be matched to the customer's product.

2. How Does the 65 Extruder Work?

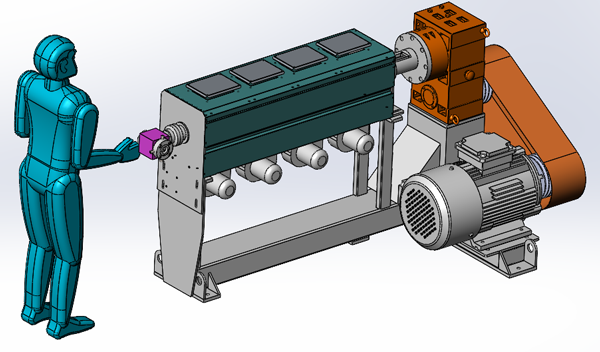

The working principle of our 65 Extruder Machine is based on continuous thermoplastic processing. The process starts with feeding. Plastic pellets, compounds, or other suitable thermoplastic materials are supplied to the machine through the feeding system.

Once inside the barrel, the material is exposed to controlled heat and mechanical movement. The screw rotates and carries the material forward. At the same time, heat and shear help the material soften and melt. The goal is not simply to make the plastic hot. The goal is to create a stable melt condition that can be processed through the die.

After plasticizing, the melt continues toward the extrusion section. The screw provides the conveying force required to move the material forward. The melt then enters the die, where it takes the required shape.

For cable production, the die and downstream equipment may be arranged to coat insulation or sheath material around a conductor. For profile production, the die may create a specific cross-sectional shape. For other plastic products, the tooling can be designed according to the product geometry.

After leaving the die, the hot product normally needs to be cooled. Depending on the application, water cooling, air cooling, sizing equipment, or a combination of these methods may be used. The cooled product is then pulled through the line by traction equipment and collected by a take-up system or sent to the next production stage.

This is also why we pay close attention to line matching. If the extruder works well but the traction system is poorly synchronized, the final product can still have problems. The same applies to cooling, take-up tension, and die selection.

A Simple Example

Imagine producing an insulated wire. The conductor enters the extrusion line, while plastic insulation material is fed into the extruder. The 65 Extruder melts and conveys the insulation material. The die applies the material around the conductor. The coated wire then passes through a cooling section before being pulled and collected.

If the extrusion conditions are stable, the insulation layer can remain more consistent. If the material feed, temperature, die, or traction conditions change too much, the product may show variations in diaMeter or insulation thickness.

This is where practical machine design matters. We focus not only on whether the extruder can produce plastic melt, but also on whether it can become a reliable part of the complete Production Line.

3. Main Features of Our 65 Extruder

Continuous Production

The 65 Extrusion Machine is designed for continuous processing. This makes it suitable for applications where long and stable production runs are required, particularly wire, cable, pipe, profile, and other continuous extrusion products.

Continuous production can reduce the need for repeated manual handling. It also gives operators a more stable process to monitor and adjust.

Controlled Material Processing

Different plastics behave differently during extrusion. PVC, PE, PP, and other thermoplastic materials do not necessarily require the same processing conditions.

For this reason, we consider material characteristics when configuring the machine. Temperature control, screw configuration, feeding conditions, die design, and cooling arrangements should work together instead of being selected independently.

Flexible Line Integration

A 65 Industrial Extruder can be combined with different auxiliary systems according to the application. These may include cooling equipment, traction systems, take-up equipment, unwinding systems, diameter control equipment, and other line components.

This flexibility is particularly useful for manufacturers that produce several types of products or want to build a more automated production line.

Practical Operation

Industrial equipment should be powerful, but it should not be unnecessarily difficult to operate. We therefore pay attention to operator interaction, process monitoring, control arrangement, and the overall working flow.

Our goal is to make daily operation understandable and practical for production teams.

Suitable for Customized Applications

There is no single extrusion configuration that is perfect for every factory. Product diameter, material, production capacity, die structure, line speed, and factory layout can all influence the final equipment arrangement.

For this reason, our 65 Plastic Extruder can be configured according to confirmed project requirements instead of forcing every customer into exactly the same setup.

4. Technical Factors That Influence Extrusion Quality

In our experience, customers sometimes focus too much on the machine model and not enough on the complete process. The model matters, but it is only one part of the equation.

Material Selection

The first question we normally ask is simple: what material will you process?

Different thermoplastics have different melting behavior, viscosity, thermal sensitivity, and processing windows. Material suppliers may also provide recommended processing conditions that should be considered during machine configuration.

For example, a material that is easy to process at one temperature may become unstable if overheated. Another material may require a different screw design or cooling arrangement. Good extrusion starts with understanding the material.

Screw Configuration

The screw is one of the key working components inside an extruder. It helps transport, compress, melt, mix, and push the material forward.

Different products may require different screw configurations. Screw geometry can affect plasticizing behavior, melt uniformity, throughput, pressure, and residence conditions.

That is why we do not recommend selecting a screw simply because another factory uses the same model. The correct choice depends on the material and application.

Temperature Control

Temperature control is another important part of extrusion. The barrel normally contains several heating zones, allowing operators to control different sections of the process.

Stable temperature does not mean every zone must have the same setting. In many extrusion processes, the temperature profile is adjusted according to the material and processing stage.

Good temperature control helps the operator maintain a more predictable melt condition.

Die and Tooling

The die determines the shape of the extruded material. A machine may have stable extrusion conditions, but the final product can still be wrong if the tooling is not suitable.

For cable applications, die design is closely related to insulation or sheath thickness. For profile extrusion, the die must match the required cross-sectional shape.

We therefore treat die selection as part of the production solution rather than a separate afterthought.

Cooling and Traction

After extrusion, the product must normally be cooled and moved at a controlled speed. Cooling and traction influence the final shape and dimensions.

In wire and cable production, for example, excessive or unstable traction can affect the final coating condition. Cooling that is too weak may not stabilize the material quickly enough, while unsuitable cooling conditions can also create process problems.

In simple terms, extrusion quality is the result of the whole line working together.

5. 65 Extruder Applications in Different Industries

We supply extrusion equipment for a wide range of industrial applications. The exact configuration of a 65 Cable Extruder or plastic extrusion system depends on the product being manufactured.

Wire and Cable Manufacturing

Wire and cable production is one of the important application areas for extrusion equipment. The extruder can be integrated into insulation or sheathing lines to process suitable thermoplastic materials.

For these applications, dimensional consistency is especially important. Insulation thickness, outer diameter, material coverage, cooling, traction, and take-up all need to be considered.

IEC 60811-201 provides methods for measuring insulation thickness for common insulating compounds such as cross-linked materials, PVC, PE, and PP. IEC 60811-202 covers measurement of non-metallic sheath thickness for common sheathing compounds. These standards show why thickness measurement is an important part of cable manufacturing quality control.

Photovoltaic Cable Production

Photovoltaic cable production has specific material and product requirements. Extrusion equipment can be configured as part of a photovoltaic wire and Cable Production Line according to the required insulation and sheath materials.

We have experience developing production equipment for photovoltaic wire and cable applications, and we consider the entire production flow when planning the line.

Automotive Wire

Automotive wire production requires stable processing and careful control of product dimensions. A suitable extrusion system can be integrated with conductor feeding, cooling, traction, take-up, and other equipment to create a continuous production line.

Electronic Wire

Electronic wire applications often involve relatively controlled product dimensions and material requirements. The extrusion system can be configured according to conductor structure, insulation material, product size, and production capacity.

Network Communication Cable

Communication cable production can also use extrusion processes for insulation and other non-metallic layers. In this type of application, stable material flow and dimensional control are important because the finished cable must meet the required construction and performance specifications.

Plastic Profiles and Other Products

Outside the cable industry, extrusion machines can also be used for suitable plastic profiles, tubes, strips, packaging-related products, and other continuous thermoplastic products.

The key is not whether the product is called a “plastic profile” or a “cable.” The real question is whether the material, product shape, output target, die, and downstream process are compatible with the extrusion system.

6. Technical Comparison: What Should Buyers Look At?

When customers compare extrusion machines, price and model numbers are usually the first things they see. In our view, that is not enough.

A more useful comparison looks at the whole production requirement. The following table is a practical guide rather than a fixed specification sheet for our 65 Extruder.

For plastic material evaluation, testing conditions also matter. ASTM D638-22, for example, covers tensile properties of plastics under defined specimen preparation and testing conditions. ASTM notes that plastic tensile results can vary with specimen preparation, testing speed, and environment. This is a useful reminder that machine performance and material test results should always be evaluated under controlled conditions.

General Comparison of Extrusion Equipment Options

There is no universal winner in this comparison. The right choice depends on the production goal. For some customers, a standalone extruder is enough. For others, an integrated automatic line makes much more sense.

7. How We Manufacture and Deliver the 65 Extruder

At Wuxi Shuochuan, we see equipment manufacturing as a process rather than simply assembling parts together.

Step 1: Requirement Confirmation

Before production begins, we confirm the customer's material type, product specifications, target output, machine configuration, factory conditions, and delivery schedule.

This step sounds basic, but it prevents many problems later. A machine should be designed around the product instead of the other way around.

Step 2: Equipment Configuration

After understanding the application, we determine the appropriate extrusion arrangement. Depending on the project, this may include the extruder, screw and barrel configuration, heating and control system, die or tooling interface, cooling equipment, traction, take-up, unwinding, and other auxiliary equipment.

Step 3: Manufacturing and Assembly

The equipment is manufactured and assembled according to the confirmed configuration. During this stage, attention is given to mechanical assembly, electrical control, component matching, and overall line arrangement.

Because we also manufacture complete extrusion production lines, our engineering approach is not limited to one machine. We can consider how the extruder will communicate and work with other equipment in the line.

Step 4: Testing Before Shipment

Before shipment, the complete machine or production line is assembled, tested, and inspected according to the agreed requirements.

This gives us an opportunity to identify assembly problems, control issues, or equipment coordination problems before the machine leaves the factory.

Step 5: Packaging and Transportation

For export orders, we normally use moisture-resistant materials, protective cushioning, and strong wooden cases or pallets. The exact packaging method depends on equipment size, destination, transportation method, and customer requirements.

Transportation can be arranged by sea, air, or land. The choice depends on the destination, equipment dimensions, delivery schedule, and project requirements.

8. Why Choose Shuochuan for a 65 Extruder?

Buying an extruder is not only about buying a machine. For most industrial customers, it is a production decision that may affect product quality, operator workload, factory layout, maintenance, and future capacity.

That is why we focus on the complete project.

Wuxi Shuochuan Electromechanical Equipment Manufacturing Co., Ltd. integrates R&D, manufacturing, and sales. We have obtained more than ten utility model patent certificates, reflecting our ongoing work in equipment development and mechanical innovation.

The company also states that it has passed ISO 19001 quality management system certification. For procurement teams that require certification documentation, we recommend confirming the exact certificate number and standard edition against the original certification documents during the supplier qualification process.

Our product range includes high-speed extruders, three-in-one BV extrusion automatic production lines, three-in-one plus one BVVB automated production lines, photovoltaic wire and cable production lines, automotive Wire Production Lines, electronic wire production lines, network communication wire production lines, cable production lines, charging pile cable production lines, take-up and unwinding equipment, auxiliary equipment, and related raw materials.

This broader product range matters because many extrusion projects are not really “extruder-only” projects. Customers often need the extruder to work together with several other machines. Having experience with complete production lines helps us understand those connections.

Our working philosophy is simple: Quality First, Continuous Improvement, and Honest Service. We believe equipment should be practical, stable, understandable to operators, and matched to the customer's actual production needs.

What We Can Discuss Before Quotation

• Material type and material characteristics

• Product name and application

• Product dimensions

• Required production capacity

• Extrusion process and product structure

• Required automation level

• Existing upstream and downstream equipment

• Factory space and production layout

• Electrical requirements

• Delivery destination and expected schedule

Providing these details helps us avoid giving customers a generic quotation that looks attractive on paper but does not match the actual production requirement.

9. 65 Extruder FAQ

What does “65” mean in a 65 Extruder?

“65” is the model or nominal designation used for the extrusion equipment. It should not automatically be interpreted as the production output in kilograms per hour. The actual meaning and technical configuration should be confirmed in the equipment specification provided for the specific project.

What materials can a 65 Plastic Extruder process?

The suitable materials depend on the screw configuration, barrel design, temperature control, die, and other equipment settings. Suitable thermoplastic applications may include materials used for wire, cable, profiles, and other plastic products. We recommend confirming the exact material before equipment configuration.

Can the 65 Extruder be used for cable production?

Yes. A properly configured 65 Cable Extruder can be integrated into wire and cable production lines for suitable insulation or sheath applications. The final configuration depends on conductor size, insulation or sheath material, product dimensions, production capacity, die design, cooling, traction, and take-up requirements.

Can you customize the 65 Extruder?

Yes. Extrusion equipment can be configured according to material, product size, production capacity, automation requirements, factory conditions, and the required downstream equipment. We confirm these details before production.

What information do you need to provide a quotation?

We normally need the material type, product specifications, expected output, application, required equipment configuration, automation requirements, destination, and delivery schedule. If the project involves a complete production line, information about existing equipment and factory layout is also useful.

What is included in standard delivery?

Standard delivery generally includes the plastic extruder, necessary components, electrical controls, technical documents, accessories, and other items specified in the order. The exact scope is confirmed in the contract.

How long does production take?

Production time depends on the extruder model, screw configuration, production line arrangement, customization requirements, and order quantity. We confirm the expected delivery schedule before production starts.

How is the equipment shipped?

Depending on the destination and equipment size, transportation can be arranged by sea, air, or land. Export equipment is normally protected with moisture-resistant materials, cushioning, and strong wooden cases or pallets where appropriate.

Can the extruder be integrated with automatic production equipment?

Yes. Our extrusion equipment can be integrated with auxiliary systems such as cooling, traction, take-up, unwinding, and other production equipment. For complete automation projects, we configure the system around the required production process.

How should I choose between different extruder models?

Do not choose only by model number or price. Start with the material, product dimensions, required output, extrusion process, automation level, and downstream equipment. Once these requirements are clear, the appropriate extruder configuration becomes much easier to determine.

Conclusion: A 65 Extruder Should Be Chosen Around the Product

From our point of view, the most important thing about a 65 Extruder is not the number “65” itself. What matters is how well the machine matches the material, product, production capacity, and complete manufacturing process.

A stable extrusion system needs more than a rotating screw and a heated barrel. Feeding, plasticizing, temperature control, die design, cooling, traction, take-up, and process monitoring all have a role to play. When these parts are properly matched, the extrusion line becomes easier to operate and more predictable in daily production.

At Wuxi Shuochuan Electromechanical Equipment Manufacturing Co., Ltd., we combine equipment development, manufacturing, and complete extrusion-line experience to provide practical solutions for industrial customers. Whether the project involves a 65 Plastic Extruder, 65 Extrusion Machine, cable extrusion system, photovoltaic wire production line, automotive wire line, electronic wire line, or another customized plastic extrusion application, we start with the product requirement and work backward to the machine configuration.

That approach helps us build equipment for real production conditions rather than simply selling a standard machine. For customers planning a new extrusion project or upgrading an existing line, the first step is straightforward: tell us what material you use, what product you need to make, how much you want to produce, and how the finished product should be handled. From there, we can discuss the right 65 Extruder configuration and the supporting equipment required for the complete production process.
