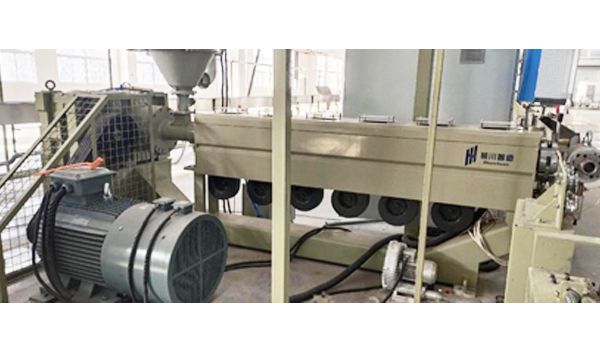

When we design and manufacture a 90 Extruder, our goal is not simply to build a machine that pushes melted plastic forward. In real production, an extruder needs to run steadily, respond to different materials, work with downstream equipment, and remain practical for operators and maintenance teams. That is the way we approach every 90 Extruder we supply.

Our 90 Extruder is designed for continuous plastic processing and can be used as an individual machine or integrated into a complete extrusion Production Line. Depending on the customer's material, product type, output requirement, automation level, and factory conditions, we can configure the machine for wire and Cable Production, plastic extrusion, profile processing, photovoltaic cable manufacturing, electronic Wire Production, automotive wire applications, and other continuous extrusion processes.

At Wuxi Shuochuan Electromechanical Equipment Manufacturing Co., Ltd., we combine equipment development, manufacturing, assembly, and sales. Our work is based on practical production needs. We understand that an extrusion machine may look simple from the outside, but stable operation depends on many details working together. Feeding, heating, screw rotation, temperature control, electrical control, cooling, traction, and downstream handling all need to match the actual Production Process.

The 90 Extruder can therefore be supplied as part of a customized 90 extrusion production line. Instead of forcing every customer to use the same configuration, we discuss the material and product requirements before production begins. This helps us select a suitable screw structure, heating arrangement, control system, Auxiliary Equipment, and production line layout.

1. What Is a 90 Extruder and What Can We Use It For?

A 90 Extruder is a plastic processing machine built around an extrusion system with a nominal size identified as 90. It is commonly used for continuous processing applications where plastic or other suitable thermoplastic materials need to be heated, plasticized, conveyed, and formed into a required product shape.

In a normal production process, raw material enters the machine through the feeding section. The material then moves through the barrel with the help of the rotating screw. During this process, controlled heating and mechanical shear help bring the material into a workable state. The processed material is then pushed toward the extrusion head or die, where it can be formed according to the product design.

That sounds straightforward, but the real challenge is keeping the process stable. A small change in material behavior can affect temperature, pressure, extrusion speed, surface quality, and final dimensions. For this reason, we pay close attention to the relationship between the screw, barrel, heating zones, drive system, electrical controls, and downstream equipment.

Our 90 Plastic Extruder can be considered for applications such as:

• Wire and cable insulation extrusion

• Cable sheath production

• Electronic wire manufacturing

• Automotive wire processing

• Photovoltaic cable production

• Plastic profile extrusion

• Plastic tube and related continuous products

• Packaging material processing

• Customized thermoplastic extrusion applications

The final application depends on the selected material, die system, downstream equipment, production speed, and customer requirements. For this reason, we normally confirm the application before recommending the final configuration.

2. How Our 90 Extruder Works

We prefer to explain the working process in a simple way. The 90 Extruder takes raw material from the feeding side and moves it through a controlled processing path until it reaches the forming section.

First, material is supplied into the feeding system. Depending on the production process, this may include manual feeding or an auxiliary feeding arrangement. Once the material enters the barrel, the rotating screw begins to convey it forward.

As the material moves through the barrel, it passes through different temperature-controlled areas. The material gradually changes from its original form into a softened and workable state. The screw does more than transport material. Its structure also affects mixing, pressure development, residence time, and the stability of the material flow.

After the material reaches the front section of the machine, it is pushed toward the extrusion head. A suitable die then gives the material its required shape. Depending on the application, the extruded product may continue through cooling equipment, a sizing system, traction equipment, printing equipment, measuring devices, take-up equipment, or other downstream units.

For wire and cable manufacturing, the extrusion process may be synchronized with conductor pay-off and take-up systems. For plastic products, the extrusion line may include cooling tanks, belts, rollers, or other forming and handling equipment.

The process can be summarized as:

Material Feeding → Conveying → Heating and Plasticizing → Stable Extrusion → Product Forming → Cooling or Downstream Processing → Collection or Take-Up

Each stage affects the next one. If material feeding is unstable, output can change. If temperature is not controlled properly, material quality may be affected. If the extrusion speed does not match the downstream equipment, the finished product may show dimensional variation or surface problems. This is why we look at the complete production process rather than only the extruder itself.

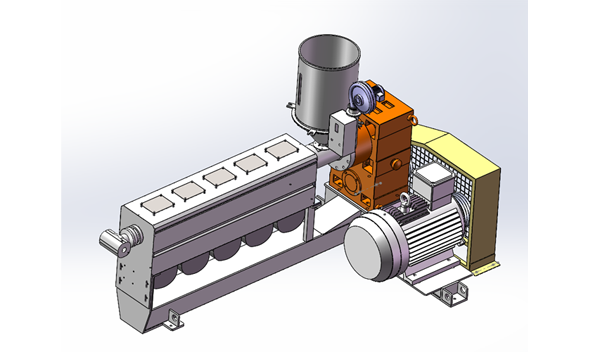

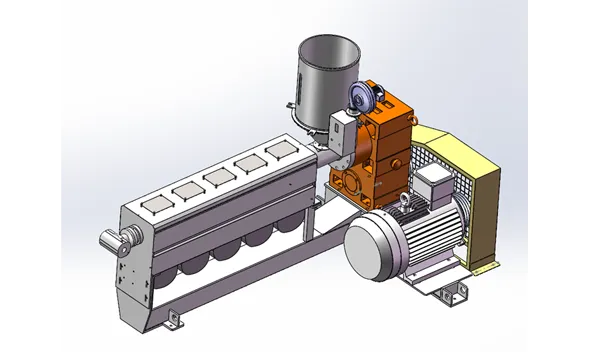

3. Main Features of Our 90 Extruder

The 90 Extruder is designed around continuous industrial production. We focus on practical operation, flexible configuration, and compatibility with complete extrusion lines.

Stable Material Conveying

The screw and barrel system is one of the central parts of the machine. Its configuration is selected according to the material and processing requirement. Different materials do not always behave in the same way during extrusion, so the machine configuration should reflect the actual production process.

Controlled Heating Process

The barrel can be divided into temperature-controlled zones to support gradual heating during processing. Instead of treating the entire extrusion process as one temperature point, separate control areas help operators manage different stages of material processing.

Flexible Electrical Control

The control system can be configured according to the required production process and automation level. Operators can monitor key operating conditions and adjust relevant paraMeters according to the agreed equipment configuration.

Compatibility with Downstream Equipment

A 90 Extruder can be connected with different auxiliary systems. Depending on the application, these may include cooling systems, traction equipment, take-up and pay-off equipment, measuring devices, printing units, or other customized production equipment.

Configuration Based on Production Requirements

We do not assume that every customer needs the same 90 Extruder configuration. Before manufacturing, we discuss the product, material, output target, production process, and installation environment. This allows us to match the equipment more closely with the actual application.

Source: Configuration principles based on product information and customization procedures provided by Wuxi Shuochuan Electromechanical Equipment Manufacturing Co., Ltd. Final equipment specifications are subject to the confirmed technical agreement.

4. Where Can the 90 Extruder Be Used?

The flexibility of a 90 Extruder machine makes it suitable for a range of continuous extrusion applications. The actual production line may look different from one industry to another, but the basic requirement remains the same: material needs to be processed steadily and formed consistently.

Wire and Cable Manufacturing

One important application is wire and cable production. The extruder can be integrated into a production line for insulation or sheathing processes. Depending on the product, the line may also include conductor pay-off equipment, cooling sections, spark testing equipment, printing units, traction devices, and take-up systems.

Photovoltaic Cable Production

Photovoltaic cable manufacturing requires stable production processes and suitable equipment coordination. We can configure extrusion equipment according to cable structure, material requirements, production speed, and other process conditions confirmed with the customer.

Automotive Wire Production

Automotive wire production may involve different conductor sizes and insulation requirements. A properly configured 90 Extruder can form part of a production line designed around the required product specifications.

Electronic Wire Applications

For electronic wire production, process consistency is important because product dimensions and insulation quality can affect the next stage of manufacturing. The extrusion equipment can be integrated with suitable control and downstream systems according to the product process.

Plastic Profile and Continuous Plastic Products

The 90 Plastic Extrusion Machine can also be used for selected profile and continuous plastic processing applications. The die, cooling method, traction arrangement, and auxiliary equipment need to match the final product.

Source: Application scope based on the manufacturer's product information for plastic extruders and extrusion production equipment. The final application suitability depends on material, tooling, product design, and confirmed machine configuration.

5. Why Configuration Matters More Than Simply Choosing a Machine Size

When customers ask about a 90 Extruder, one of the first things we need to understand is what they actually want to produce. Machine size alone does not tell the whole story.

For example, two customers may both request a 90 Extruder, but one may produce a cable sheath while another may process a different plastic product. Their material behavior, output target, die design, cooling requirements, line speed, and downstream equipment may not be the same.

This is why we normally ask practical questions before production:

• What material will be processed?

• What is the final product?

• What are the required dimensions?

• What production capacity is expected?

• Will the extruder work as a single machine or part of a complete line?

• What level of automation is required?

• What auxiliary equipment is needed?

• What power supply and factory conditions are available?

• Are there special requirements for the production layout?

Once these points are clear, we can move from a general 90 Extruder concept toward a more useful equipment solution.

This approach also helps customers compare equipment options more clearly. Instead of comparing machines only by name or appearance, we recommend comparing them according to production needs.

Source: Pre-production confirmation procedure described in the product information provided by Wuxi Shuochuan Electromechanical Equipment Manufacturing Co., Ltd.

6. How We Manufacture and Test the 90 Extruder

We believe that a reliable extrusion machine starts long before final assembly. The manufacturing process begins with confirming the technical requirements. We review the material, product specifications, expected production capacity, equipment configuration, and delivery schedule with the customer.

Once the technical requirements are confirmed, manufacturing and equipment preparation move forward according to the agreed configuration. The extrusion system, drive components, electrical controls, and supporting parts are assembled into the complete machine structure.

During assembly, practical details matter. Equipment alignment, component installation, electrical connections, heating systems, and control functions all need to be checked before the machine is prepared for testing.

Before shipment, the complete machine or production line is assembled and tested according to the agreed requirements. The purpose of this stage is to check equipment operation and confirm that the supplied system matches the confirmed order configuration.

For a complete 90 extrusion production line, testing may involve the coordination of the extruder with selected auxiliary equipment. This is especially important when the project includes cooling, traction, take-up, pay-off, or other connected production units.

We do not treat shipment as the first time the complete equipment comes together. Assembly and inspection before delivery help reduce unnecessary problems during installation at the customer's site.

7. Delivery, Payment, Transportation, and Packaging

Industrial extrusion equipment is usually supplied according to a confirmed order and technical agreement. The production cycle depends on several factors, including the extruder model, selected configuration, customization requirements, auxiliary equipment, and order quantity.

For this reason, we confirm the delivery schedule with the customer before production. If the project includes a complete line rather than a single 90 Extruder, the manufacturing schedule may also depend on the number and complexity of the connected machines.

Standard Delivery Scope

The final delivery scope is based on the confirmed order. Depending on the project, delivery may include the 90 Extruder, required machine components, electrical control equipment, technical documents, accessories, and other items listed in the agreement.

Payment Terms

Payment arrangements are normally made according to the contract. A common arrangement includes a deposit before production and the balance before shipment, although the final terms are determined by the confirmed commercial agreement.

Transportation Options

Transportation can be arranged by sea, air, or land depending on the destination, equipment dimensions, order requirements, and delivery schedule. For large industrial equipment, transportation planning also needs to consider loading, handling, and local delivery conditions.

Export Packaging

For export orders, we normally use moisture-resistant materials, protective cushioning, and strong wooden cases or pallets where required. The purpose is to help protect the equipment during loading, transportation, storage, and long-distance shipment.

Because different equipment configurations have different dimensions and packaging requirements, the final packing method is determined according to the actual machine and transportation plan.

8. Why Work with Us for a 90 Extruder?

We are not only focused on selling a machine. Our main work is connected with extrusion equipment and automated production solutions, including high-speed extruders, BV extrusion automatic production lines, BVVB automated production lines, photovoltaic wire and Cable Production Lines, automotive Wire Production Lines, electronic wire production lines, network communication wire production lines, charging pile cable production lines, take-up and unwinding equipment, auxiliary equipment, and related materials.

This broader equipment experience matters when we work on a 90 Extruder project. In many cases, the customer does not need only an extruder. The machine must work together with other parts of the production process.

Our company integrates research and development, manufacturing, and sales. We have obtained more than ten utility model patent certificates and operate under an ISO 19001 quality management system certification according to the information provided by our company.

More importantly, we try to keep the process practical. Before production, we discuss the application. During manufacturing, we follow the confirmed configuration. Before shipment, the equipment is assembled, tested, and inspected according to the agreed requirements.

For customers looking for a 90 plastic extruder manufacturer, a 90 extrusion machine supplier, or a customized 90 Extruder Production Line, we can discuss the project based on the actual material and production requirements rather than relying only on a general machine description.

Frequently Asked Questions About the 90 Extruder

1. What materials can the 90 Extruder process?

The suitable material depends on the confirmed machine configuration and production process. Before manufacturing, we confirm the material type and relevant processing requirements with the customer so that the equipment can be configured accordingly.

2. Can the 90 Extruder be customized?

Yes. We can discuss customization based on product specifications, material characteristics, output requirements, automation needs, auxiliary equipment, and factory conditions. The final scope depends on the confirmed technical agreement.

3. Can the machine be used for wire and cable production?

Yes. A 90 Extruder can be configured as part of a wire and cable extrusion line. Depending on the process, it can work with pay-off systems, cooling equipment, testing devices, traction equipment, take-up systems, and other auxiliary machines.

4. Can I purchase only the extruder instead of a complete production line?

Yes, the equipment scope can be discussed according to the project. Some customers require an individual extruder, while others require a complete extrusion production line with upstream and downstream equipment.

5. How long is the production cycle?

The production lead time depends on the machine model, configuration, customization requirements, order quantity, and complete project scope. We confirm the production and delivery schedule with the customer before manufacturing begins.

6. Is the machine tested before shipment?

Yes. Before shipment, the complete machine or production line is assembled, tested, and inspected according to the agreed requirements.

7. What documents are supplied with the equipment?

The delivery scope can include technical documents and other agreed items. The final document package depends on the confirmed order and equipment configuration.

8. What payment methods are available?

Payment terms are arranged according to the contract. A common arrangement includes a deposit before production and the remaining balance before shipment, subject to the final commercial agreement.

9. How is the 90 Extruder transported?

Transportation can be arranged by sea, air, or land depending on the destination, machine size, logistics requirements, and delivery schedule.

10. How is the equipment packed for export?

We normally use moisture-resistant protection, cushioning materials, and suitable wooden cases or pallets when required. The final packaging method is selected according to the machine structure and transportation conditions.

Talk to Us About Your 90 Extruder Project

If you are looking for a 90 Extruder for plastic processing, wire and cable manufacturing, photovoltaic cable production, automotive wire production, electronic wire manufacturing, or another continuous extrusion application, we recommend starting with the actual production requirement.

Tell us about your material, finished product, required dimensions, expected production capacity, existing equipment, automation requirements, and factory conditions. Based on this information, we can discuss a suitable 90 plastic extruder or 90 extrusion production line configuration.

For us, the important question is not simply, “Which extruder do you need?” A better question is, “What do you need the production line to do every day?” Once that is clear, we can work toward a machine configuration that makes sense for the real production process.

Contact Wuxi Shuochuan Electromechanical Equipment Manufacturing Co., Ltd. to discuss your 90 Extruder, customized extrusion equipment, or complete extrusion production line requirements.
