When I talk about a High-efficiency 80 Cable Insulation Sheath Production Line, I do not simply mean an extruder with a few machines connected together. In real cable manufacturing, a Production Line needs to work as one system. Material feeding, extrusion, cooling, sizing, take-up, control, and inspection all need to cooperate smoothly. If one part is not properly matched, the final cable can show problems such as uneven insulation, unstable diaMeter, poor surface quality, or production interruptions.

At Wuxi Shuochuan Electromechanical Equipment Manufacturing Co., Ltd., we focus on this practical side of extrusion equipment. We develop, manufacture, and sell automated equipment for wire and Cable Production. Our product range covers high-speed extruders, photovoltaic wire and Cable Production Lines, automotive Wire Production lines, electronic Wire Production Lines, network communication wire production lines, charging pile cable production lines, take-up and unwinding equipment, Auxiliary Equipment, and related production systems.

The High-efficiency 80 Cable Insulation Sheath Production Line is designed around the same idea: stable processing, controlled extrusion, reliable feeding, consistent product forming, and practical operation. The exact configuration can be adjusted according to the customer's cable structure, insulation or sheath material, product size, production requirements, and factory conditions.

I believe this is important because there is no useful “one configuration fits everything” answer in cable extrusion. A line making a small electronic wire is not necessarily configured in the same way as a line making a photovoltaic cable or industrial cable. Good equipment starts with understanding the product.

1. What Is a High-efficiency 80 Cable Insulation Sheath Production Line?

The High-efficiency 80 Cable Insulation Sheath Production Line is a continuous extrusion system used to apply insulation or a protective sheath around a wire or cable. The “80” in the product name identifies the equipment configuration or extruder class used in the line. It should not be treated as a universal statement about output capacity, cable diameter, or production speed because these values depend on the complete configuration and material being processed.

In simple terms, the process is straightforward. Cable material enters the extrusion system, the material is processed and pushed through the extrusion head, and the molten insulation or sheath material is formed around the conductor or cable core. The newly coated cable then passes through cooling and sizing equipment before being collected by the take-up system.

What sounds simple on paper actually requires careful coordination. The conductor must remain stable while passing through the extrusion head. Material feeding needs to be consistent. The extrusion process needs to match the material. Cooling needs to be controlled. The pulling and take-up systems also need to work at a suitable speed.

That is why I look at the complete line rather than only the extruder itself.

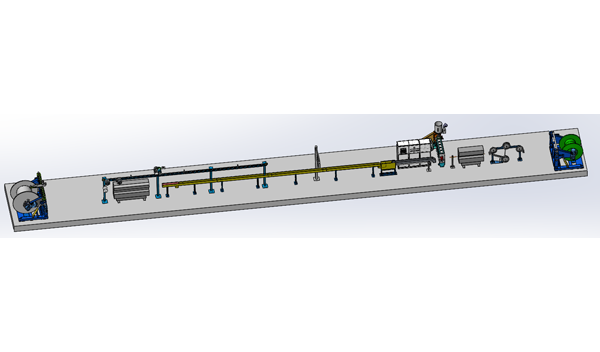

The line can therefore be understood as a complete production workflow rather than a single machine. This approach is especially useful when a customer is planning a new cable production line and needs to consider not only the extruder, but also the equipment before and after extrusion.

2. How Does the 80 Cable Insulation Sheath Production Line Work?

The working principle of the 80 Cable Insulation Sheath Production Line follows the basic extrusion process used in wire and cable manufacturing.

Material Preparation and Feeding

First, the selected insulation or sheath material is prepared according to the cable production requirements. Different cable products may use different materials, and the material choice directly affects the extrusion process.

The material enters the extruder through the feeding system. Stable feeding matters because changes in material supply can affect the extrusion process and the consistency of the finished cable. In an automated production environment, the feeding system should work together with the extruder and control system rather than operate as an isolated unit.

Plasticizing and Extrusion

Inside the extruder, the material is transported and processed before entering the extrusion head. The screw, barrel, heating or cooling arrangements, and control system work together to create a stable extrusion condition.

The goal is not simply to push material forward. The material needs to reach a suitable processing state and flow evenly through the extrusion system. This is one reason why the extruder configuration needs to match the material and product requirements.

Insulation or Sheath Forming

The extrusion head forms the material around the conductor or cable core. Depending on the product structure, the line may be used for insulation, sheathing, or other continuous extrusion applications.

At this point, the relationship between the cable core, extrusion head, material flow, and line speed becomes very important. A stable process helps maintain a consistent outer surface and product geometry.

Cooling and Sizing

After extrusion, the newly formed insulation or sheath needs to cool and stabilize. Cooling equipment helps the material retain its intended shape as the cable moves through the line.

For cable manufacturers, this section should not be overlooked. A good extrusion system needs a suitable downstream arrangement because the quality of the finished product depends on the complete process, not only on the extruder.

Take-up and Production Handling

Finally, the finished cable is collected by the take-up system. The take-up speed needs to coordinate with the extrusion process so that the cable can move smoothly through the line.

This is where automation becomes especially useful. When feeding, extrusion, cooling, traction, and take-up are properly coordinated, operators can spend less time dealing with basic adjustments and more time monitoring the Production Process.

3. Main Features of the High-efficiency 80 Cable Insulation Sheath Production Line

From my experience with cable production equipment, customers usually care about several things before they care about fancy specifications. They want stable production, easy operation, consistent product quality, reasonable maintenance, and equipment that matches their actual products.

Continuous Production

The line is designed for continuous extrusion processing. This makes it suitable for manufacturers producing wires and cables in repeated production runs rather than handling each cable section separately.

Controlled Material Processing

Material feeding and extrusion control are important parts of the system. The line can be configured according to the selected material, cable structure, and production process.

Consistent Insulation and Sheath Forming

The extrusion system is intended to provide stable material forming around the cable. Consistency is especially important for manufacturers that need repeatable cable dimensions and surface quality.

Integrated Production Operation

The extruder works together with downstream equipment such as cooling, traction, and take-up systems. This creates a more coordinated production process than using individual machines without system-level integration.

Practical Automation

We pay attention to human-machine operation when designing equipment. The purpose of automation is not to make the control panel look complicated. It is to make daily production easier to manage and help operators understand the operating condition of the line.

Configurable Equipment

A cable extrusion line should be selected according to the product. Material, conductor structure, insulation thickness, sheath requirements, cable diameter, production capacity, and factory layout can all affect the final configuration.

4. Technical Advantages and How I Recommend Selecting the Line

When a customer asks me, “Which cable insulation extrusion line should I buy?” I usually avoid answering too quickly. The right starting point is the product, not the machine name.

For example, a manufacturer producing photovoltaic wire may have different requirements from a manufacturer producing network communication cable. Automotive wire can also have different material and dimensional requirements from ordinary industrial wire.

So I normally recommend confirming several basic points first.

Start With the Cable Product

Tell us what cable you plan to produce. If possible, provide the conductor structure, finished cable size, insulation or sheath material, required insulation structure, and target production range.

This information gives us a much better starting point than simply saying, “I need an 80 extruder.”

Confirm the Material

The material is another major factor. Different thermoplastic materials behave differently during extrusion. Material characteristics influence feeding, plasticizing, extrusion, cooling, and final product forming.

For this reason, we do not recommend choosing the configuration only from the machine model. The processing material should be part of the technical discussion.

Consider the Complete Line

It is tempting to compare extruders only by model, but this can lead to an incomplete decision. A cable extrusion line includes upstream and downstream equipment, control systems, tooling, take-up and unwinding equipment, and other supporting components.

Two lines with similar extruder names can still have different configurations depending on the customer's production requirements.

Think About Future Production

If the customer expects to produce several cable sizes or several related products, I recommend discussing this before the equipment is finalized. It is often easier to consider future product changes during the design stage than after installation.

For manufacturers building a long-term production system, flexibility can be just as important as today's production target.

5. Where Can This Cable Insulation Sheath Production Line Be Used?

The High-efficiency 80 Cable Insulation Sheath Production Line can be configured for a wide range of extrusion-related applications. The actual suitability depends on the cable structure, material, product dimensions, and process requirements.

Photovoltaic Wire and Cable

Photovoltaic cable production is one of the important areas we serve. Solar cable manufacturers need stable insulation and sheath processing because the finished cable is expected to operate in demanding outdoor environments.

The production line can be configured according to the required photovoltaic cable structure and material. The exact process parameters should be confirmed based on the selected cable material and applicable product standard.

Automotive Wires

Automotive wire is another important application. Vehicle wiring systems use many different wire structures and sizes, so production equipment needs to be matched to the specific product range.

Our automotive wire production solutions focus on stable extrusion, controlled forming, and coordinated production operation.

Electronic Wires

Electronic wire production often involves smaller products and specific insulation requirements. A stable extrusion process helps manufacturers maintain consistent forming and surface quality.

Network Communication Cables

Network communication wire and cable production also requires careful process control. Depending on the cable structure, the extrusion process may be only one part of the complete manufacturing route, so equipment selection should consider the complete product process.

Charging Pile Cables

As charging equipment becomes more common, charging pile cable production has become another application area for cable manufacturing equipment. Different charging cable designs may use different insulation and sheath materials, which is why configuration needs to be confirmed based on the customer's product.

General Industrial Cables

Industrial wire and cable manufacturers can also use customized extrusion production lines for insulation and sheath applications. The key is matching the line with the actual cable structure rather than choosing equipment based only on a model number.

For power cables with extruded insulation, IEC 60502-1:2021 specifies construction, dimensions, and test requirements for certain power cables rated at 1 kV and 3 kV. For PVC insulated cables up to 450/750 V, IEC 60227-1:2024 defines general requirements, while IEC 60227-4:2024 covers particular requirements for certain PVC sheathed cables for fixed wiring. These standards are useful references when defining the product specification, but the applicable standard should always be confirmed for the actual cable being manufactured. IEC 60502-1 and IEC 60227-1 are official IEC references. IEC 60227-4 provides the relevant sheathed-cable reference.

6. How We Manufacture, Test, Pack, and Deliver the Production Line

One thing I always emphasize is that manufacturing a Cable Extrusion Production Line does not finish when the machine frame is assembled. A complete line needs to be checked as a system.

Requirement Confirmation

Before production, we confirm the customer's product specifications, materials, production capacity, equipment configuration, factory conditions, and delivery requirements.

This stage may sound basic, but it prevents many problems later. If a customer needs to produce several cable sizes, for example, that information should be discussed before tooling and downstream equipment are finalized.

Equipment Manufacturing

After the configuration is confirmed, we organize manufacturing according to the agreed technical requirements. Wuxi Shuochuan integrates R&D, manufacturing, and sales, allowing technical discussions to connect more directly with equipment production.

The company has obtained more than ten utility model patent certificates. These patents reflect its ongoing work in equipment development and technical improvement.

Assembly and Testing

Before shipment, the complete production line is assembled, tested, and inspected according to the agreed requirements. We pay attention to equipment coordination rather than checking only individual machines.

Control systems, mechanical components, feeding, extrusion, downstream equipment, and take-up arrangements all need to work together as expected.

Technical Documents and Accessories

Standard delivery generally includes the complete Extruder Production Line, necessary components, technical documents, accessories, and other items specified in the order. The exact delivery list depends on the signed contract and confirmed configuration.

Packaging

Long-distance transportation can be rough on industrial equipment. Equipment may experience loading, unloading, vibration, humidity, and repeated handling during transportation.

For this reason, we normally use moisture-resistant materials, protective cushioning, and strong export wooden cases or pallets according to the equipment and transportation requirements.

Transportation

Transportation can be arranged by sea, air, or land depending on the destination, equipment size, delivery schedule, and customer's requirements.

For large production lines, sea transportation is commonly considered because of equipment size and shipping arrangements, while other transportation methods may be selected for different delivery situations.

7. Why Choose Wuxi Shuochuan for an 80 Cable Insulation Sheath Production Line?

Choosing a cable extrusion equipment supplier is not only about buying a machine. In my view, the more important question is whether the supplier can understand the production process and continue to support the customer after the order is confirmed.

R&D, Manufacturing, and Sales in One Company

Wuxi Shuochuan Electromechanical Equipment Manufacturing Co., Ltd. integrates R&D, manufacturing, and sales. This structure allows customer requirements to move more directly between technical discussions and manufacturing.

Experience Across Different Cable Applications

Our product range covers photovoltaic wire and cable production lines, automotive wire production lines, electronic wire production lines, network communication wire production lines, charging pile cable production lines, general cable production lines, and related extrusion equipment.

This application range gives us a practical understanding that different cable products require different equipment configurations.

Focus on Energy Efficiency and Practical Operation

We develop automated equipment with attention to efficiency, energy saving, and human-machine operation. For a production line, these points matter every day. Operators need equipment they can understand and maintain, while manufacturers need a system that can support stable production.

Quality Control Throughout the Process

The company states that it has passed ISO 19001 quality management system certification. Because the commonly recognized international quality management standard is ISO 9001, customers should verify the current certificate number, issuing body, scope, and validity directly with the company before using certification information in procurement documentation.

Our working principle is simple: quality first, continuous improvement, and honest service. We believe equipment should be built around real production needs instead of unnecessary complexity.

Flexible Customization

We understand that many wire and cable manufacturers have their own product structures and factory layouts. That is why we confirm material, cable construction, product dimensions, production requirements, line configuration, and delivery conditions before manufacturing.

This approach helps us build a High-efficiency 80 Cable Insulation Sheath Production Line that is matched to the customer's application rather than treating every order as exactly the same.

8. Frequently Asked Questions About the High-efficiency 80 Cable Insulation Sheath Production Line

Q1: What does “80” mean in the High-efficiency 80 Cable Insulation Sheath Production Line?

The “80” is part of the equipment model or configuration name. It should not automatically be interpreted as a fixed production speed, output, or maximum cable diameter. The actual capability depends on the complete line configuration, material, cable structure, tooling, and production conditions.

Q2: What materials can the 80 Cable Insulation Sheath Production Line process?

The applicable material depends on the specific equipment configuration. Different insulation and sheath materials have different processing characteristics. We recommend providing the material name and product requirements before equipment selection so that the extrusion system can be properly matched.

Q3: Can this line be used for photovoltaic cable production?

Yes, the line can be configured for photovoltaic wire and cable applications when the equipment, material, tooling, and downstream systems are matched to the required cable structure and production process.

Q4: Can it produce automotive wires?

Yes. Automotive wire is one of the application areas covered by our cable production equipment. The exact configuration should be confirmed according to the wire structure, material, product size, and production requirements.

Q5: Can the production line be customized?

Yes. We normally confirm product specifications, materials, production capacity, equipment configuration, factory conditions, and delivery requirements before production. This allows the line to be configured according to the customer's actual manufacturing needs.

Q6: What is the production lead time?

Production lead time normally depends on the extruder model, complete line configuration, customization requirements, and order quantity. We confirm the expected delivery schedule with the customer before production starts.

Q7: How is the production line tested before shipment?

Before shipment, the complete production line is assembled, tested, and inspected according to the agreed requirements. The purpose is to check equipment coordination and confirm that the delivered system matches the approved configuration.

Q8: How is the equipment packaged for international transportation?

We normally use moisture-resistant materials, protective cushioning, and strong export wooden cases or pallets according to the equipment and transportation requirements. The final packaging method depends on the equipment structure and shipping conditions.

Q9: What payment terms are available?

Payment terms are normally arranged according to the contract. A common arrangement includes a deposit before production and the balance before shipment, but the exact terms should be confirmed in the final commercial agreement.

Q10: How should I request a quotation for an 80 Cable Insulation Sheath Production Line?

The most useful information includes the cable type, conductor structure, insulation or sheath material, cable size range, expected production capacity, number of products, factory location, and any required standards or special functions. The more complete the product information, the more accurately we can recommend a suitable configuration.

Final Thoughts

A good High-efficiency 80 Cable Insulation Sheath Production Line is not defined by one number on a machine nameplate. Its real value comes from how well the complete system fits the customer's product and production process.

From material feeding to extrusion, from the extrusion head to cooling, and from traction to take-up, every section needs to work together. For this reason, I prefer to discuss cable structure, material, product size, production capacity, factory layout, and future production plans before talking about the final equipment configuration.

At Wuxi Shuochuan Electromechanical Equipment Manufacturing Co., Ltd., we bring together R&D, manufacturing, and sales to provide practical extrusion equipment for wire and cable manufacturers. Our product range covers high-speed extruders, photovoltaic cable production lines, automotive wire production lines, electronic wire production lines, network communication cable production lines, charging pile cable production lines, take-up and unwinding equipment, and related auxiliary systems.

Our approach is straightforward: understand the product first, configure the equipment carefully, manufacture according to the confirmed requirements, test the complete line before shipment, and provide honest service throughout the process.

If you are planning a new 80 Cable Insulation Sheath Production Line, replacing an existing extrusion system, or expanding your wire and cable production capacity, we can discuss your actual product requirements and work out a suitable line configuration together.
