In a continuous Production Line, length is one of the simplest things to measure, but it is also one of the easiest things to overlook. When wire, cable, plastic, rubber, or another continuous product keeps moving through a production line, operators need to know how much material has passed through the process. This is where our Horizontal Meter Counter for Length Measurement provides a practical solution.

At Wuxi Shuochuan Electromechanical Equipment Manufacturing Co., Ltd., we develop and manufacture industrial automation equipment for real production environments. Our product range includes high-speed extruders, wire and Cable Production lines, take-up and unwinding equipment, Auxiliary Equipment, and related automation systems. Because we work with complete production lines, we understand that a meter counter should not simply display a number. It needs to work naturally with the equipment around it.

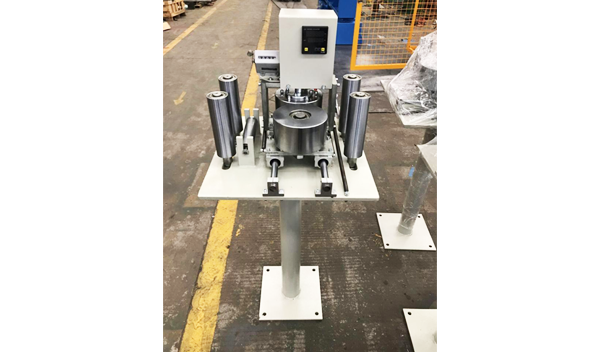

Our Horizontal Meter Counter is designed for continuous length measurement and production monitoring. Its horizontal arrangement can be adapted to suitable production layouts, while the counting system provides operators with useful length information during operation.

We do not believe in putting unnecessary specifications on a product page just to make a machine look complicated. The correct measurement configuration depends on the material, line speed, product structure, installation position, operating environment, and customer's requirements. We therefore discuss these points before confirming the final equipment arrangement.

For us, reliable measurement starts with understanding how the product actually moves through the factory.

1. What Is a Horizontal Meter Counter?

A Horizontal Meter Counter is an industrial device used to monitor the length of continuously moving material. In simple terms, it tracks material movement and converts that movement into a length value that operators can read and use.

The product name describes both the application and the equipment arrangement. “Meter Counter” refers to length counting, while “Horizontal” describes the installation or working orientation of the equipment. The actual mechanical design can vary depending on the production line and customer requirements.

Our Horizontal Meter Counter for Length Measurement is mainly intended for industrial applications where material moves continuously. Typical examples include Wire Production, cable manufacturing, extrusion, plastic processing, rubber processing, and other continuous material production.

Imagine a Cable Production Line running for several hours. The material passes through different processes before it reaches the take-up system. Without a suitable length measurement device, an operator may need to estimate or manually check how much material has been produced.

A meter counter makes this much easier. The production team can monitor the measured length during the process and use the information for production records, material management, winding, cutting, and other operations.

Of course, the meter counter does not solve every production problem by itself. Measurement quality depends on correct installation and proper operation. Material movement, tension, vibration, surface condition, mechanical contact, component wear, and system setup can all influence the final result.

That is why we treat the Horizontal Meter Counter as part of the complete production system rather than as an isolated device.

Basic Measurement Idea

The basic idea is quite easy to understand:

1. The continuous material moves through the measurement area.

2. The measuring mechanism follows or detects the material movement.

3. The system collects movement information.

4. The movement information is converted into a length value.

5. The operator uses the displayed value for production monitoring and related operations.

The exact measurement mechanism and control arrangement depend on the final configuration. We confirm these details according to the customer's production requirements instead of assuming that one design will suit every application.

2. How Does the Horizontal Meter Counter Work?

Although the basic principle is simple, stable length measurement requires careful attention to the actual production environment.

In a common industrial arrangement, moving material passes through a measuring section. A measuring element follows the material movement, and the system detects the corresponding movement. This information is processed and converted into a length reading.

The measurement result can then be used by the operator or combined with other production equipment.

For example, in a cable production line, length information may be considered together with extrusion, cooling, diameter monitoring, take-up, and winding processes. In this way, the meter counter becomes part of the production monitoring system.

One point we always emphasize is that the measuring mechanism must maintain a suitable relationship with the moving material. If the material slips, vibrates too much, or moves in an unstable way, the measurement result may be affected.

This table is a practical engineering guide, not a guaranteed performance specification. Every production line has its own conditions, and the final configuration should be confirmed according to the actual application.

Why the Horizontal Arrangement Can Be Useful

A horizontal meter counter can be convenient when the material path and surrounding equipment are arranged horizontally. It may help simplify installation in certain production-line layouts and provide a clear material path through the measuring section.

However, we do not claim that a horizontal configuration is automatically better for every application. The best arrangement depends on the product, line layout, available space, material direction, and operating conditions.

That is why we prefer to look at the whole production line before recommending the final installation arrangement.

3. Main Features of Our Horizontal Meter Counter

Our design philosophy is simple: industrial equipment should be useful, understandable, and suitable for the working environment.

Continuous Length Counting

The main purpose of the equipment is continuous length measurement. Instead of manually checking the length of long moving material, operators can use the meter counter to monitor length during production.

This is particularly useful for wire and cable production, extrusion lines, plastic processing, and other manufacturing processes where material is produced continuously.

Horizontal Configuration

The horizontal arrangement is suitable for production lines where the material path and available installation space support this type of configuration.

We consider the relationship between the meter counter and nearby machines before finalizing the installation position.

Clear Measurement Information

A meter counter is only useful when operators can understand the information it provides. We therefore focus on practical measurement display and straightforward operation.

The final interface and functions depend on the equipment configuration agreed with the customer.

Flexible Industrial Configuration

Different products require different measurement arrangements. Wire and cable may have different surface conditions, diameters, flexibility, and Production Processes. Plastic and rubber products can behave differently again.

For this reason, we discuss the material and production conditions before confirming the meter counter configuration.

Production Line Integration

Our experience with extrusion equipment and cable production lines allows us to consider the meter counter as part of a larger automated system.

This can be important when customers want to connect measurement information with other production processes.

Practical Maintenance

Industrial equipment needs routine inspection. Measuring parts, mechanical components, electrical connections, and mounting conditions should be checked according to actual use.

Regular maintenance is not an optional extra when measurement information is important to production management.

The comparison above describes the practical role of each feature. It should not be interpreted as a fixed technical specification for every Horizontal Meter Counter we manufacture.

4. Measurement Accuracy, Calibration and Technical Considerations

When customers ask us about a meter counter, one of the first questions is usually: “How accurate is it?” That is a reasonable question, but we believe the answer needs more context.

A measurement number is not meaningful simply because it has many decimal places. The complete measurement system matters.

For example, if the measuring component slips against the material, improving the display resolution will not solve the problem. If the material is moving with unstable tension, the measurement result may also change. If the equipment is poorly aligned, the measurement system may not perform as expected.

In other words, good length measurement is a combination of equipment design, installation, operating conditions, inspection, and measurement management.

Calibration and Verification

ISO 10012:2026 explains that measurement management should provide confidence in the validity and reliability of measurement results. It also provides a framework for controlling measurement processes and related activities.

NIST also explains that measurement traceability involves a documented chain of calibrations linked to specified reference standards, with each link contributing to measurement uncertainty. Importantly, NIST notes that traceability alone does not guarantee that a measurement is fit for a particular purpose.

For industrial users, the practical meaning is easy to understand: if length measurement is important to your product quality, you should also pay attention to how the measuring equipment is checked and maintained.

NIST's guidance also points out that calibration, adjustment, verification, operating conditions, resolution, and repeatability are all relevant when characterizing a measuring system.

We use this kind of thinking when discussing industrial measurement equipment. We do not simply promise an accuracy number without understanding the actual measurement application.

Why We Avoid Universal Accuracy Claims

Suppose two factories use the same meter counter. One factory measures a relatively stable cable product, while another measures a soft and flexible material under changing tension. The measurement conditions are not identical.

Therefore, we prefer to confirm the application first and then discuss the appropriate configuration and verification method.

This approach may sound less exciting than giving one big accuracy number, but it is much more useful when the equipment is actually installed on a production line.

5. Applications and Industries

Our Horizontal Meter Counter is mainly intended for industrial production environments where continuous material length needs to be monitored.

Wire Manufacturing

Wire manufacturing is one of the natural applications for a Length Counter. Wire may move continuously through extrusion, cooling, inspection, and take-up processes.

A Horizontal Meter Counter for wire production can provide useful length information during the production process and help operators monitor how much material has passed through the line.

Cable Manufacturing

Cable production often involves long continuous products. A Horizontal Meter Counter for cable manufacturing can be integrated into a suitable production line to support length monitoring.

This can be useful for production records, winding, cutting, packaging, and material management.

Cable Extrusion

Our company manufactures high-speed extruders and different wire and cable production lines. This means we are familiar with the environment in which a meter counter may operate.

In an extrusion line, the counter may be positioned after a suitable process stage where continuous material movement can be monitored.

Plastic Extrusion

Plastic profiles, tubes, strips, and other continuous products may also require length counting. The suitable measurement method depends on the product shape, surface, flexibility, production speed, and line arrangement.

Rubber Processing

Continuous rubber products may also benefit from length measurement. Rubber can behave differently from rigid products, so the measuring arrangement should be considered carefully.

Industrial Automation

Length information can also be useful in automated production systems. When measurement data is combined with other process information, operators can gain a clearer picture of what is happening on the production line.

We see this as one of the important roles of a modern Industrial Meter counter: not simply counting length, but providing useful information to the production process.

For cable-related applications, IEC 60228:2023 provides requirements for conductors used in a wide range of electric power cables and cords. It covers conductor cross-sectional areas, wire numbers and sizes, and resistance requirements. It does not define the performance of a particular meter counter, but it provides useful industry context for cable manufacturing.

6. Manufacturing Process, Quality Inspection and Delivery

We believe that a good industrial product starts with good communication. Before we manufacture a Horizontal Meter Counter, we first need to understand what the customer actually wants to measure.

Step 1: Technical Communication

We discuss the material, production process, measurement position, installation conditions, required functions, production line layout, and other relevant requirements.

For customers using the counter in a wire or cable production line, we also consider how the equipment relates to extrusion, cooling, take-up, unwinding, and other production equipment.

Step 2: Configuration Confirmation

After the application is understood, we confirm the proposed configuration with the customer.

This stage is important because the correct meter counter arrangement depends on the actual production environment. We do not want to manufacture equipment based on assumptions that have not been discussed.

Step 3: Manufacturing and Assembly

Our company integrates R&D, manufacturing, and sales. During manufacturing, components are prepared and assembled according to the confirmed technical requirements.

We pay attention to mechanical structure, installation, electrical connections, measurement components, and the relationship between the counter and its supporting equipment.

Step 4: Inspection and Testing

Before shipment, the equipment is assembled, inspected, and tested according to the agreed technical requirements.

We consider this an important step because the machine will eventually become part of the customer's production system. Identifying problems before shipment is much better than leaving the customer to discover them after installation.

Step 5: Packaging

The packaging method depends on equipment size, structure, quantity, and transportation requirements.

Protective film, cartons, wooden cases, steel frames, and other suitable materials may be used to reduce the risk of moisture, dust, impact, scratches, and movement during transportation.

Step 6: Delivery

After the equipment has passed the agreed inspection process and packaging is completed, transportation can be arranged.

We can work with sea freight, rail transportation, air freight, or other suitable methods depending on the destination and customer requirements.

Production Cycle

After technical specifications and order details are confirmed, our typical production and delivery cycle is around 30–90 days. The actual schedule depends on the final equipment configuration, production plan, order quantity, and related project requirements.

Payment Terms

Payment terms are confirmed in the contract. A common arrangement is a deposit followed by the balance before shipment. Different arrangements can be discussed when required by the project.

7. Why Work With Wuxi Shuochuan?

For industrial equipment, the supplier's understanding of the application can be just as important as the equipment itself.

At Wuxi Shuochuan Electromechanical Equipment Manufacturing Co., Ltd., we integrate research and development, manufacturing, and sales. Our work is focused on industrial automation and equipment used in real manufacturing environments.

Experience With Wire and Cable Production

Our main products include high-speed extruders, three-in-one BV extrusion automatic production lines, three-in-one plus one BVVB automated production lines, photovoltaic wire and cable production lines, automotive Wire Production Lines, electronic wire production lines, network communication wire production lines, cable production lines, charging pile cable production lines, take-up and unwinding equipment, auxiliary equipment, and related raw materials.

Because of this product background, we understand that length measurement often needs to work together with extrusion and material handling equipment.

R&D and Manufacturing Integration

We are an innovative technology enterprise integrating R&D, manufacturing, and sales. We have obtained more than ten utility model patent certificates, reflecting our continued investment in practical equipment development.

For us, innovation does not mean adding complicated features simply for the sake of technology. It means finding better ways to make industrial equipment easier to use, more suitable for production, and more convenient to manage.

Quality Management

According to the company information provided to us, Shuochuan has passed ISO 19001 quality management system certification. Our internal approach focuses on process management from product development through manufacturing and delivery.

Our corporate spirit is “Quality First, Continuous Improvement, and Honest Service.” We believe these principles are especially important for B2B industrial equipment because our customers are purchasing equipment for actual production, not simply for display.

Customer-Oriented Configuration

We understand that different customers have different production conditions. A standard product may provide a useful starting point, but the final configuration should match the actual application.

We therefore encourage customers to provide as much useful production information as possible before the order is confirmed.

Long-Term Practical Thinking

We do not view delivery as the end of the project. A machine needs to be transported, installed, operated, inspected, and maintained after it reaches the factory.

That is why we consider packaging, transportation, operating conditions, and maintenance requirements during the project discussion.

8. FAQ About Horizontal Meter Counter for Length Measurement

What is a Horizontal Meter Counter used for?

It is used to measure or count the length of continuously moving materials. Typical applications include wire manufacturing, cable production, extrusion, plastic processing, rubber processing, and other industrial production lines.

Why choose a horizontal meter counter?

A horizontal configuration can be suitable for production lines where the material path and available installation space support horizontal measurement. The final arrangement should be selected according to the actual production line.

Can it be used for cable production?

Yes. Cable production is one of the main application areas we consider. The final configuration depends on cable type, production process, measurement position, and installation conditions.

Can it be used with an extrusion machine?

Yes. A meter counter can be integrated into a suitable extrusion production line. The installation position and measurement arrangement should be confirmed according to the specific production process.

Can the meter counter measure plastic products?

It can be considered for suitable continuous plastic products. Product surface, flexibility, shape, movement, and production conditions should be reviewed before the final configuration is confirmed.

Can it measure rubber products?

It may be suitable for certain continuous rubber applications. Because rubber can be flexible and may have different surface properties, the measurement arrangement should be selected according to the actual product.

Does the equipment have a fixed accuracy?

We do not recommend using one universal accuracy figure for every application. Measurement performance depends on the equipment configuration, material, installation, operating conditions, and measurement method. We confirm the relevant requirements with the customer before production.

How should I choose the right meter counter?

We recommend starting with the material, product structure, production speed, measurement location, installation space, operating environment, and required measurement function. These details allow us to discuss a suitable configuration.

How long is the production period?

After the technical specifications and order details are confirmed, the typical production and delivery cycle is around 30–90 days. The exact schedule depends on the final configuration and production arrangement.

How do you inspect the equipment before delivery?

Before shipment, the equipment is assembled, inspected, and tested according to the agreed technical requirements. The purpose is to identify and address potential problems before the equipment leaves our factory.

How is the meter counter packaged?

Packaging depends on the equipment structure and shipping requirements. Protective film, cartons, wooden cases, steel frames, or other suitable protective materials may be used.

What transportation methods are available?

We can arrange sea freight, rail transportation, air freight, or other suitable transportation methods depending on the destination, equipment dimensions, delivery requirements, and customer preference.

What are the payment terms?

Payment terms are normally specified in the contract. A deposit and balance before shipment is a common arrangement, while other mutually agreed terms can be discussed for specific projects.

Can the Horizontal Meter Counter be integrated into an existing production line?

It may be possible depending on the existing line layout and control system. We need to review the installation position, material path, measurement requirements, and available interfaces before confirming the integration plan.

What information should I provide when requesting a quotation?

Useful information includes the material being measured, product type, production process, production line layout, measurement position, expected operating conditions, required measurement function, and any existing equipment that the counter needs to work with.

Conclusion

Length measurement may look simple, but in a real factory it is closely connected with material movement, production speed, machine layout, operator work, and quality management.

Our Horizontal Meter Counter for Length Measurement is designed to provide a practical way to monitor continuous material length in industrial production. It can be used in wire manufacturing, cable production, extrusion, plastic processing, rubber processing, and other suitable applications.

We focus on practical configuration rather than unrealistic promises. The final equipment should match the customer's material, production process, installation conditions, and measurement requirements.

At Wuxi Shuochuan Electromechanical Equipment Manufacturing Co., Ltd., we combine R&D, manufacturing, and sales experience to develop industrial automation equipment for real production environments. Our experience with extruders, wire and cable production lines, take-up and unwinding equipment, and auxiliary systems helps us understand how a meter counter fits into the wider production process.

For customers looking for a Horizontal Meter Counter for Length Measurement, a Horizontal Meter Counter for cable production, or an industrial length counting solution for continuous materials, we are ready to discuss the application and develop a suitable configuration based on actual production needs.

Technical Reference Sources

• ISO 10012:2026 – Quality management — Requirements for measurement management systems.

• NIST Policy on Metrological Traceability – Guidance on calibration chains, measurement uncertainty, and traceability.

• NIST Traceability Considerations for the Characterization and Use of Measuring Systems – Guidance on calibration, adjustment, verification, operating conditions, resolution, and repeatability.

• IEC 60228:2023 – Conductors of insulated cables.
