At Wuxi Shuochuan Electromechanical Equipment Manufacturing Co., Ltd., we design Cable Production equipment around a simple idea: a machine should work steadily on the factory floor, not only look good on a specification sheet. Our 630 Rewinding Machine Technology is developed for controlled rewinding, reel transfer, length management, and organized take-up of wire and cable products using reels within the corresponding machine design range.

Rewinding sounds like an easy job. One reel releases cable and another reel collects it. In real production, however, there are several things happening at the same time. Reel diaMeter changes continuously, cable tension changes with speed, the traverse guide must move correctly, the meter counter must follow the material, and the drive system has to accelerate and stop without producing loose or overly tight layers.

That is why we see a 630 Cable Rewinding Machine as more than a rotating reel stand. It is a coordinated system involving pay-off, tension control, guiding, Length Measurement, traversing, take-up, braking, drive control, and operator safety.

Our company develops and manufactures high-speed extruders, BV automatic extrusion lines, BVVB Production Lines, photovoltaic Cable Production Lines, automotive Wire Production lines, electronic Wire Production Lines, communication cable production lines, charging cable production equipment, take-up and pay-off systems, and related Auxiliary Equipment. This wider production experience gives us a practical understanding of what happens before and after rewinding.

For buyers searching for a 630 Rewinding Machine Technology supplier, 630mm cable rewinding machine, automatic Wire Rewinding Machine, cable reel rewinder, or 630 wire and cable rewinding equipment, we recommend starting with the actual cable and reel rather than only asking for motor power or maximum speed.

The correct machine should match your reel diameter, reel width, loaded reel weight, cable outside diameter, target length, production speed, tension requirement, factory voltage, and upstream or downstream equipment. We confirm these points before finalizing a technical configuration.

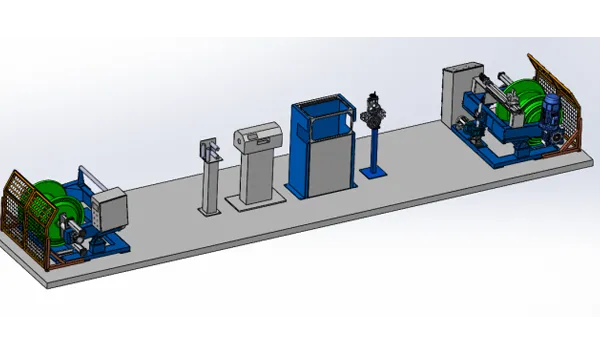

1. How 630 Rewinding Machine Technology Works

The basic working process is straightforward. Cable is released from a source reel, passes through guiding and measuring components, and is rewound onto another reel. The important part is keeping every section coordinated throughout the process.

When an empty take-up reel begins winding, its effective winding diameter is relatively small. As more cable is added, the diameter becomes larger. This means the relationship between reel rotational speed and cable linear speed keeps changing.

If the take-up reel runs too fast, cable tension can rise. This may stretch flexible material, tighten lower winding layers, deform insulation, or cause unstable feeding from the source reel. If the reel runs too slowly, the cable may become loose, sag between machine sections, or form poor winding layers.

For this reason, 630 Rewinding Machine Technology normally combines controlled drive speed with a tension-management method. Depending on the required configuration, this may involve an inverter-controlled motor, magnetic powder tension device, Dancer mechanism, pneumatic system, torque control, servo control, or coordinated PLC logic.

Pay-Off Control

The rewinding process starts at the pay-off reel. A good pay-off system should release the cable smoothly instead of allowing the reel to run freely.

As the source reel becomes smaller, its mechanical condition changes. Braking force therefore needs to be appropriate for the cable type and production speed. Thin electronic wire may require low and sensitive tension. A heavier insulated cable can need a different control range.

Depending on customer requirements, we can discuss passive or active pay-off configurations. An active pay-off uses a drive to help control reel rotation, while a passive system normally relies more heavily on braking and downstream pulling force.

Guiding and Straightening

After leaving the source reel, the cable passes through guiding components. Their job is to keep the cable on a predictable path and prevent unwanted movement.

For some products, a straightening structure may also be required. This is especially useful when the material has taken a strong curve from storage on the original reel.

Guide-wheel dimensions, material, alignment, and position should match the cable. We do not want guide components to create unnecessary bending or surface pressure.

Length Measurement

One common reason for using a wire rewinding machine with meter counter is to divide one large production reel into several smaller customer reels.

The operator can set or monitor the required length, and the measuring system records cable movement during rewinding. Depending on the selected control system, the machine can slow down near the preset value and stop when the target is reached.

Actual measurement tolerance depends on several factors, including the measuring-wheel structure, cable surface, cable diameter, wheel pressure, acceleration, speed, and control method. For projects with strict length tolerances, we recommend defining the acceptable deviation in the technical agreement before production.

Traverse Control

The traverse mechanism moves the cable guide from one side of the take-up reel to the other. This movement determines how the cable is arranged across the reel width.

If traverse pitch is too wide, visible spaces can form between cable turns. If the pitch is too narrow, turns may overlap. If the reversal position is wrong, cable can collect near one flange.

A properly adjusted traverse system therefore helps create a more uniform finished reel.

For factories producing many cable diameters, adjustable traverse parameters are particularly useful. Instead of changing the complete mechanical setup for every order, operators can adjust settings according to cable diameter and reel dimensions.

Take-Up and Braking

The take-up drive rotates the receiving reel while the control system coordinates its speed with the rest of the machine.

Stopping also matters. A fully loaded reel has more inertia than an empty reel. A machine that accelerates smoothly but stops roughly can still cause cable movement, loose layers, or unnecessary mechanical shock.

We therefore consider acceleration, deceleration, reel weight, drive torque, and braking method when selecting a configuration.

2. Main Features That Matter in a 630 Cable Rewinding Machine

When buyers compare several machines, specification sheets can quickly become confusing. One supplier emphasizes speed, another emphasizes motor power, and another lists dozens of electrical components.

From our experience with wire and cable equipment, several practical features matter more during everyday operation.

Stable Tension Control

Tension stability is one of the most important parts of 630 Rewinding Machine Technology.

The correct tension keeps the material under control without putting unnecessary load on the cable. This is particularly important for electronic wires, small insulated conductors, automotive wires, photovoltaic cables, and other products where surface condition or conductor geometry needs to remain stable.

We select the tension-control method according to the actual product rather than assuming one tension range is suitable for every cable.

Adjustable Rewinding Speed

A machine should not force every product to run at one fixed speed.

During setup, operators normally need a low-speed mode so they can confirm cable routing, traverse position, reel alignment, and tension. After stable operation is confirmed, production speed can be increased.

Different cable constructions may also require different maximum practical speeds.

Smooth Acceleration and Deceleration

Fast starts can create sudden tension peaks. Sudden stops can loosen the finished reel. Smooth drive control reduces these changes and makes operation easier.

For higher automation configurations, drive parameters can be adjusted through an inverter or PLC system so that acceleration and deceleration are better matched to reel size and cable weight.

Uniform Cable Arrangement

A finished reel should not have one side piled high while the other side remains low. It should also avoid frequent crossed turns and random layers.

Good traverse control helps operators produce a neater reel and can make later pay-off easier.

Flexible Reel Compatibility

A machine described as “630” does not mean every 630 mm reel in the world has exactly the same structure.

We normally ask for:

• Reel flange diameter

• Reel barrel diameter

• Reel width

• Traverse width

• Center-hole dimensions

• Shaft requirements

• Empty reel weight

• Maximum loaded reel weight

• Reel material

A reel drawing is strongly recommended for customized orders.

Operator-Friendly Controls

Operators should be able to understand the functions they use every day. Start, stop, jog, speed adjustment, length setting, traverse adjustment, and alarm information should be clearly arranged.

Depending on the machine configuration, we can discuss PLC and touchscreen control, inverter adjustment, fault display, parameter storage, or other automation functions.

Safety Protection

A rotating reel stores considerable mechanical energy, especially when it is loaded. Safety design therefore needs to be considered from the beginning.

Depending on the project, machine protection may include guards, emergency-stop switches, electrical overload protection, door switches, controlled braking, and other measures.

The final protection level should also follow the installation country's regulations and the customer's factory safety requirements.

Industry Reference: Published 630-Class Equipment Parameters

Source note: The comparison above uses publicly available technical information from CAPSTIAN cable pay-off/take-up equipment, Dosing CableTech 630 wire rewinding equipment, and Shineworld SW 800/630 rewinding equipment. Published values vary considerably because each machine is designed for a different material and process. These values are industry references only and are not guaranteed specifications of Shuochuan equipment.

This comparison explains an important point for buyers: the words 630 rewinding machine do not define line speed, cable diameter, loading capacity, or automation level by themselves.

Two machines can both use 630 mm reels but have completely different mechanical structures and production purposes.

3. How We Help Buyers Select the Right 630 Rewinding Machine Configuration

We prefer to select equipment from production conditions instead of starting from a standard catalog model.

Before preparing a final technical proposal, the following information is particularly useful.

Cable Outside Diameter

Cable diameter affects guide size, traverse pitch, reel capacity, bending behavior, and practical rewinding speed.

A small electronic wire and a thick power cable cannot use the same settings simply because they both fit on a 630 mm reel.

Conductor and Cable Construction

We also want to know what is inside the cable.

The product could be a solid conductor, stranded conductor, flexible conductor, insulated single-core wire, multicore cable, shielded cable, or finished sheathed cable.

IEC 60228:2023, for example, covers conductor types including solid, stranded, Milliken, copper, aluminium, aluminium-alloy and flexible copper conductors. Its nominal cross-sectional-area scope runs from 0.5 mm² to 3,500 mm². This broad range illustrates why cable handling equipment must be selected around the actual conductor and finished cable rather than one generic setting.

Reel Weight

Maximum loaded reel weight is one of the most important mechanical parameters.

It influences shaft or pintle design, bearings, frame strength, motor selection, braking, lifting method, and operator handling.

A machine that can fit a 630 mm flange is not automatically capable of safely handling every loaded 630 mm reel.

Required Production Speed

We recommend telling us your normal production speed rather than only asking for the highest possible speed.

For many factories, stable operation at 150 m/min may be more valuable than purchasing a machine advertised for a much higher speed that the actual cable can rarely use.

Higher speed normally requires more attention to balancing, drive response, tension control, braking, guide design, guarding, and reel quality.

Finished Reel Length

If the machine is mainly used to divide bulk production into fixed-length customer reels, tell us your common delivery lengths.

For example, a factory may regularly prepare 100 m, 305 m, 500 m, 1,000 m, or customized-length reels. These requirements influence the recommended measuring and stopping logic.

Production Direction

Machine direction is easy to overlook during purchasing.

If a rewinder will be connected to an existing line, we need to know whether production flows from left to right or right to left, the center height of the material path, and the available installation area.

Automation Level

Not every buyer needs the most complicated machine.

A small factory performing occasional reel transfer may prefer a simple and economical system. A plant rewinding different cable orders every day may gain more value from PLC recipes, automatic length control, servo traverse, fault alarms, and improved reel handling.

Configuration Comparison by Production Requirement

Source note: This selection table is compiled from commonly published industrial cable pay-off, take-up, and rewinding configurations. Public 630-class equipment demonstrates the use of magnetic powder tension control, motorized drives, pneumatic or electric clamping, PLC/HMI control, and different reel-handling arrangements depending on the process.

4. Applications of 630 Rewinding Machine Technology

Our 630 Rewinding Machine Technology can be discussed for several wire and cable manufacturing applications. The final configuration changes according to the product.

Electronic Wire

Electronic wire factories often process smaller-diameter products and many specifications. Orders may change frequently, so operators need equipment that is easy to adjust.

A rewinding machine can transfer wire from production reels to customer reels, prepare inspection samples, divide production lots, or replace unsuitable reels.

For small wires, smooth tension and accurate guiding are especially important.

Automotive Wire

Automotive wire later enters processes such as cutting, stripping, terminal crimping, and wire-harness assembly. A neat reel can make downstream pay-off more stable.

During rewinding, we aim to avoid unnecessary stretching or surface damage and maintain orderly reel formation.

Photovoltaic Cable

PV cable manufacturing normally involves continuous insulation or sheathing extrusion, cooling, testing, marking, and take-up.

A rewinder can be added when the factory needs to divide production reels, change packaging reels, inspect finished cable, or prepare specified delivery lengths.

BV and Building Wire

Our company manufactures automated BV and BVVB extrusion equipment, so we understand that winding is directly connected with extrusion productivity.

When a production line creates wire faster than downstream reel handling can manage it, the entire line can lose efficiency.

A properly selected 630mm Wire Rewinding Machine can support reel organization, fixed-length processing, inspection, or inventory preparation.

Communication and Network Cable

Communication products may require controlled handling because excessive tension or poor bending can influence later processing.

The rewinding configuration should therefore be selected according to the exact cable construction rather than using settings developed for heavier power cables.

Charging and New-Energy Cable

Charging cables and related new-energy products may have larger diameters and more flexible constructions.

Reel weight, cable bending behavior, guide-wheel diameter, tension, and take-up torque become particularly important when handling these products.

Production Inspection

Rewinding is also useful for quality inspection.

When cable moves from one reel to another, operators can visually inspect the surface and, depending on the line design, integrate additional inspection or testing equipment.

Some published industrial rewinding systems combine rewinding with spark testing for insulation-defect detection, showing how a rewinding station can become part of a Cable Quality-control process rather than simply a reel-transfer device.

Rework and Reel Replacement

Sometimes the cable itself is acceptable but its original reel is damaged, unsuitable for shipment, or different from the customer's requested spool.

A rewinder allows the cable to be moved to another reel while controlling speed and tension.

5. Our Manufacturing, Assembly and Testing Approach

At Shuochuan, we integrate R&D, manufacturing, and sales. We have obtained more than ten utility model patent certificates and have established a quality-management system covering equipment development and production.

For us, manufacturing a 630 Rewinding Machine means making several mechanical and electrical systems work together.

Machine Frame

The frame supports the rotating reel, drive system, bearings, traverse mechanism, and related components.

Rewinding involves continuous rotation, acceleration, deceleration, and changing reel weight. A rigid and properly aligned structure helps reduce unwanted vibration and supports more stable operation.

During fabrication and assembly, mounting positions for drive components, shafts, bearings, guides, and electrical devices need to remain consistent.

Rotating Components

Reel shafts, pintles, bearings, couplings, pulleys, and drive components need to match the expected load and speed.

This is another reason why we ask for maximum loaded reel weight before finalizing the machine.

Oversizing every component adds unnecessary cost, while undersizing mechanical components can reduce reliability.

Traverse Assembly

We check whether the traverse guide moves smoothly through its working range and whether reversal points can be adjusted according to reel width.

For a customer producing several wire diameters, we also consider how easily the operator can change traverse settings.

Drive and Electrical Control

Depending on the selected machine level, the electrical system may include AC motors, frequency inverters, PLCs, touchscreen HMIs, sensors, meter counters, emergency-stop circuits, overload protection, and other components.

Factory voltage and frequency should be confirmed before electrical design. Export projects can require different supply voltages and electrical arrangements.

Machine Assembly

After mechanical fabrication, components are assembled and adjusted as a complete system.

We pay attention to reel positioning, guide alignment, traverse movement, drive direction, fastener condition, guard installation, and cable path.

Functional Testing

A typical pre-delivery inspection may include:

• Machine start and stop

• Motor rotation direction

• Speed adjustment

• Acceleration and deceleration

• Reel clamping

• Reel loading functions where applicable

• Traverse movement

• Traverse reversal position

• Meter counting

• Tension-device response

• Emergency-stop operation

• Sensor response

• Alarm functions

• Control-panel operation

• Abnormal vibration or noise inspection

When customers can supply their real cable and reel samples, practical testing becomes much more useful. The machine can then be evaluated using conditions closer to the customer's actual production.

Factory Acceptance Test

For customized equipment, we recommend defining the Factory Acceptance Test, or FAT, during technical confirmation rather than after the machine is completed.

A good acceptance agreement can state the reel dimensions, cable specification, target operating speed, required length measurement, traverse result, electrical configuration, control functions, and required safety checks.

Clear acceptance criteria reduce misunderstandings and give both sides a practical standard for evaluating the finished equipment.

Recommended Procurement and FAT Checklist

Source note: The checklist reflects standard engineering inputs required when selecting industrial reel handling and cable rewinding systems. Published 630-class machines show major differences in cable range, reel capacity, speed, drive power, tension method, and clamping system, confirming that reel diameter alone is not sufficient for machine selection.

6. Production Cycle, Delivery, Packing and International Shipment

Machine performance is only one part of an international equipment order. Buyers also need to know when the machine can be finished, how it will be tested, how it will be packed, what documents will be supplied, and how it will reach the factory.

Typical Production Cycle

Our reference production cycle for rewinding equipment is normally approximately 30–60 days, depending on machine specifications, automation level, purchased components, customization requirements, and current manufacturing schedule.

A relatively standard machine normally requires less engineering work than a customized system with servo traverse, special tension control, automatic reel handling, inspection equipment, or interface communication with an existing extrusion line.

The confirmed delivery time is stated in the final commercial agreement.

Technical Confirmation Before Production

Before manufacturing begins, we recommend confirming the main technical parameters.

For customized projects, this can include machine layout, reel dimensions, cable range, line speed, voltage, operating direction, control system, motor configuration, and special functions.

Early confirmation is important. Changing a 630 mm reel to a completely different reel structure after mechanical fabrication has started may require changes to shafts, guards, traverse travel, lifting devices, or frame dimensions.

Delivery Standard

Before shipment, the machine is assembled, tested, and inspected according to the agreed technical requirements and our production procedures.

The delivery package can include, according to the contract:

• Main 630 rewinding equipment

• Electrical control system

• Specified auxiliary components

• Standard accessories

• Operating manual

• Electrical documentation

• Packing list

• Machine-related technical documents

• Installation or commissioning guidance

Payment Method

For many international equipment orders, our standard reference payment method is 30% T/T deposit and 70% balance before shipment.

Other commercial terms may be discussed according to project size, order structure, and contract conditions.

The signed sales contract or proforma invoice remains the final basis for payment.

Export Packing

Industrial machinery may experience truck vibration, port handling, container movement, humidity, and long-distance ocean transport before reaching the customer's factory.

We therefore normally use moisture-resistant wrapping together with reinforced fixation and export-standard wooden cases, wooden bases, or pallets where appropriate.

Moving machine parts can be secured before transport. Sensitive areas such as control panels, displays, sensors, electrical interfaces, and precision assemblies receive additional protection where required.

Transportation

For most overseas machine projects, sea freight is the most practical transportation method.

Road, rail, or combined transport can also be arranged depending on the destination and project.

Packing dimensions and machine weight information can be provided for freight planning after the final machine configuration is confirmed.

Installation and Commissioning

We try to complete as much assembly and testing as practical before shipment.

After arrival, site work may include positioning, leveling where required, electrical connection, reel installation, cable threading, parameter setting, and trial operation.

Technical documentation and installation guidance can be supplied according to the project arrangement.

7. Why Work With Shuochuan for 630 Rewinding Machine Technology?

There are many wire and cable equipment suppliers in the market. We believe the difference becomes clearer when the machine has to connect with an actual Production Process.

We Understand More Than the Rewinding Section

Our main product range includes high-speed extrusion machines, BV extrusion lines, BVVB automated lines, photovoltaic cable lines, automotive wire lines, electronic wire lines, network communication wire lines, charging cable lines, take-up and pay-off equipment, and auxiliary machinery.

Because of this, we can discuss how a rewinder works with the equipment around it.

If the 630 Rewinding Machine needs to receive cable from an extrusion line, pass through a spark tester, work with a Diameter Gauge, synchronize with a dancer, or prepare cable for packaging, these connections can be considered during machine design.

R&D and Manufacturing Are Integrated

We are an equipment manufacturer integrating research and development, manufacturing, and sales.

Our company has obtained more than ten utility model patent certificates. We use this engineering background to improve machine structures, automation arrangements, operating convenience, and Production Efficiency.

For us, useful innovation does not always mean making a machine more complicated. A better guide position, easier reel change, clearer HMI, smoother traverse adjustment, or more accessible maintenance point can bring real value to operators.

We Support Customized Configurations

A cable factory producing automotive wire has different needs from a plant producing photovoltaic cable. A factory running one product for weeks has different needs from another plant changing orders several times per shift.

We therefore support technical discussions based on real production requirements.

The most useful information you can send us includes:

• Wire or cable specification

• Cable outside diameter range

• Reel drawings

• Maximum reel weight

• Required production speed

• Required fixed lengths

• Factory voltage and frequency

• Existing production-line photos

• Available floor space

• Required automation functions

Quality Control From Manufacturing to Testing

Our corporate principle is Quality First, Continuous Improvement, and Honest Service.

We apply this idea by confirming technical requirements before production, checking key components during manufacturing, assembling complete equipment, testing machine functions, and preparing equipment for delivery.

We prefer clear technical communication over simply promising that one standard model can process every cable.

We Build for Real Production

A specification is only useful if it produces a better result in the factory.

For that reason, when evaluating a 630 Rewinding Machine Manufacturer, we recommend asking practical questions:

• Can the supplier confirm your actual reel drawing?

• What is the maximum loaded reel weight?

• How is tension controlled?

• How is traverse pitch adjusted?

• How is cable length measured?

• How does the machine slow down near the target length?

• How is the reel loaded and clamped?

• Can the machine work with your existing production line?

• What functions are included in FAT?

• What documentation is supplied?

These questions often tell you more about a machine than simply comparing maximum line speed.

8. 630 Rewinding Machine Technology FAQ

What is 630 Rewinding Machine Technology?

630 Rewinding Machine Technology refers to equipment and control methods used to transfer wire or cable between reels, with a machine configuration designed around 630-class reel applications. The system can combine pay-off, tension control, length measurement, guiding, traversing, take-up, braking, and automated control.

Does “630” mean the machine can only use one reel size?

Not necessarily. The actual supported range depends on the machine design. Public industrial equipment, for example, includes configurations covering PN400-PN630 or PND500-PND630. We confirm the actual minimum and maximum reel dimensions for each Shuochuan project before production.

What wire and cable products can be rewound?

Depending on configuration, rewinding equipment can be used with electronic wire, automotive wire, photovoltaic cable, building wire, communication cable, power cable, charging cable, and other suitable wire and cable products.

Final compatibility depends on cable diameter, construction, weight, bending characteristics, surface material, reel type, and required speed.

What is the maximum speed of a 630 rewinding machine?

There is no universal maximum speed for all 630 machines.

Public industry examples range from around 220–300 m/min for some 630 take-up/traverse configurations to a published 600 m/min for a specialized rewinding and spark-test system. This variation shows why maximum speed must be matched to machine structure and cable application.

Our actual speed specification is confirmed according to the Shuochuan configuration ordered.

Can the machine control cable tension automatically?

Yes, automatic or semi-automatic tension solutions can be discussed depending on the application.

Possible approaches include magnetic powder control, dancer mechanisms, torque control, pneumatic control, inverter coordination, or other systems.

Can I use different cable diameters on one machine?

Yes, provided they remain within the designed machine range.

Operators may need to adjust guide components, traverse pitch, tension settings, speed, and reel parameters when changing products.

Can the 630 Rewinding Machine measure cable length?

A length-measuring system can be integrated for fixed-length rewinding.

If accurate delivery length is important, tell us the required tolerance so the measuring and control configuration can be selected accordingly.

Can you add PLC and touchscreen control?

Yes. PLC, touchscreen HMI, frequency inverter, servo control, parameter storage, alarms, and other automation functions can be discussed according to the machine configuration.

Can the machine include a spark tester?

Spark testing can be discussed when required for an appropriate cable-production or inspection process. Public industry equipment shows that rewinding and spark testing can be combined into one inspection station.

Can the rewinder connect with an extrusion production line?

Yes, depending on production layout and control requirements.

Because we manufacture extrusion lines and related auxiliary equipment, we can discuss line direction, center height, speed coordination, dancer control, measurement, and other interfaces.

What information is required for a quotation?

Please provide your cable type, cable diameter, reel dimensions, maximum loaded reel weight, required line speed, target rewinding lengths, factory voltage, and required automation functions.

Reel drawings and photos of your existing production line are also very helpful.

What is the normal production cycle?

A typical reference production cycle is approximately 30–60 days, depending on specifications, automation, customization, component availability, and production schedule.

What are the standard payment terms?

Our common reference payment term is 30% T/T deposit and 70% balance before shipment. Other arrangements can be discussed according to the project. Final payment conditions follow the signed commercial agreement.

How is the machine packed?

We normally use moisture-resistant protection, reinforced fixation, and export-suitable wooden cases, wooden bases, or pallets depending on the equipment size and shipping requirements.

Can you customize a 630 Rewinding Machine?

Yes. We can discuss reel dimensions, loaded reel weight, cable range, take-up drive, pay-off structure, tension control, traverse system, meter counter, automation level, electrical configuration, safety protection, and production-line interface.

How should I compare different 630 rewinding machines?

Do not compare only price and maximum speed.

Compare reel range, loaded reel capacity, cable diameter range, tension-control method, traverse control, braking, reel loading, meter counting, drive system, safety protection, FAT procedure, technical documentation, spare parts, and after-sales support.

Why can two 630 rewinding machines have very different prices?

Because “630” normally describes only part of the reel-size range. One machine may use manual reel handling and basic speed control, while another uses powered loading, closed-loop tension, servo traverse, PLC recipes, automatic length control, testing equipment, and additional safety systems.

The correct comparison should therefore be based on complete technical configuration.

Choose the Right 630 Rewinding Machine Technology for Your Production Line

A rewinding machine does not need to be complicated to be useful. It needs to fit the cable, fit the reel, fit the production speed, and fit the way your operators work.

At Wuxi Shuochuan Electromechanical Equipment Manufacturing Co., Ltd., we develop 630 Rewinding Machine Technology as part of a wider wire and cable production system. Our experience covers extrusion, take-up, pay-off, auxiliary equipment, automotive wire, photovoltaic cable, electronic wire, communication cable, BV wire, BVVB cable, and other production applications.

If you are upgrading an existing rewinding station, adding fixed-length rewinding capacity, building a new cable production line, or replacing older reel-handling equipment, we recommend starting with your actual production data.

Send us your cable diameter, reel drawing, maximum reel weight, required speed, target winding length, factory voltage, and production-line layout. With this information, we can discuss a more suitable 630 wire and cable rewinding machine configuration rather than simply offering a generic machine.

Our goal is straightforward: stable tension, smooth reel rotation, accurate material guiding, practical controls, reliable rewinding, and a machine configuration that makes sense for everyday factory production.

Contact us to discuss your 630 Rewinding Machine Technology requirements and obtain a configuration based on your actual wire and cable manufacturing process.

Industry Reference Sources

IEC 60228:2023 – Conductors of Insulated Cables: International Electrotechnical Commission. The standard specifies conductor nominal cross-sectional areas from 0.5 mm² to 3,500 mm² and includes requirements for various copper, aluminium, aluminium-alloy, solid, stranded and flexible conductor constructions.

CAPSTIAN Cable Pay-Off and Take-Up Equipment: Public product specifications include 630 mm pay-off and take-up configurations, PN400-PN630 reel ranges, magnetic powder tension adjustment, and published maximum take-up speeds of 220–300 m/min for selected 630-class equipment.

Dosing CableTech 630 Wire Rewinding Machine: Public specifications describe a specialized rewinding configuration using Ø400-630 mm small reels, PLC/HMI control, integrated spark testing, and a published maximum line speed of 600 m/min.

Shineworld SW 800/630 Rewinding Machine: Public specifications list 630/800 mm pay-off bobbins, 500/630 mm take-up bobbins, a 5.5 kW AC variable-frequency take-up motor, and applications including galvanized wire and conductor rewinding.

Important: Third-party technical values shown on this page are provided solely for industry comparison and buyer education. They do not represent guaranteed specifications of Wuxi Shuochuan Electromechanical Equipment Manufacturing Co., Ltd. Final Shuochuan specifications, performance values, configuration, acceptance criteria, delivery scope, and commercial terms are those confirmed in the signed technical and commercial agreement.
