At Wuxi Shuochuan Electromechanical Equipment Manufacturing Co., Ltd., we design wire and Cable Production equipment around actual factory work. Our SC Integrated 630 Rewinding Machine is developed for manufacturers that need a compact, stable, and easy-to-manage solution for rewinding wire and cable onto reels around the 630 mm class.

The word “integrated” is important here. Instead of treating pay-off, tension control, Length Measurement, cable guiding, traverse movement, take-up, and electrical control as unrelated parts, we design them to work as one coordinated system. This helps reduce unnecessary manual adjustment and makes the rewinding process easier for operators to understand.

A Rewinding Machine may look simple from the outside. Cable leaves one reel and goes onto another. In actual production, however, the process is affected by reel diaMeter, cable weight, tension, line speed, traverse pitch, acceleration, braking, and reel loading. If these factors are not matched correctly, finished reels may become loose, uneven, crossed, too tight, or difficult to pay off later.

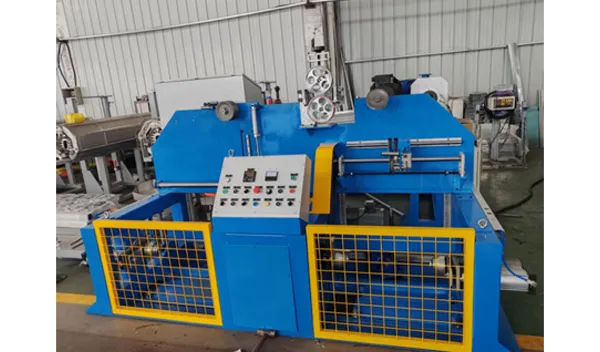

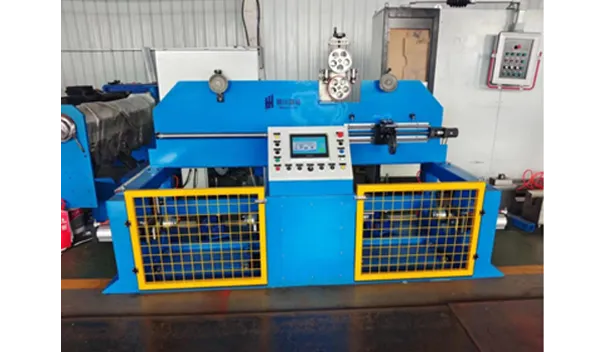

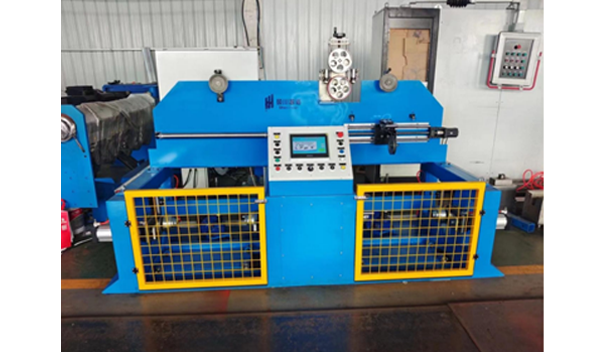

Our goal with the SC Integrated 630 Rewinding Machine is straightforward: keep the cable moving smoothly, control tension, arrange the cable neatly across the reel, manage the required length, and give operators practical controls for daily production.

We manufacture more than rewinding equipment. Our product range includes high-speed extruders, BV automatic extrusion lines, BVVB automated Production Lines, photovoltaic wire and Cable Production Lines, automotive wire lines, electronic wire lines, network communication wire lines, charging cable lines, take-up and pay-off systems, and related Auxiliary Equipment.

Because of this, we understand how a 630 Cable Rewinding Machine fits into a complete wire and cable Production Process. Whether the machine is used after extrusion, before packaging, during inspection, or for reel conversion, we can discuss the whole production flow rather than only the rewinding station.

1. How the SC Integrated 630 Rewinding Machine Works

The working principle is easy to follow. The original reel releases the wire or cable. The material passes through guiding and tension-control components, moves through a length-measuring section, and then enters the take-up section. A traverse mechanism moves from side to side so that the cable is distributed across the receiving reel.

The challenge is keeping these movements synchronized.

At the beginning of rewinding, the receiving reel may have a relatively small effective winding diameter. As cable builds up layer by layer, the winding diameter increases. This means the relationship between reel rpm and cable linear speed changes during production.

If the take-up reel rotates too quickly, cable tension may rise. If it rotates too slowly, slack may appear between machine sections. This is why reliable 630 Rewinding Machine Technology needs speed coordination and suitable tension control.

Controlled Pay-Off

The process begins at the source reel. The cable should leave this reel smoothly instead of rotating freely without control.

Depending on cable size and process requirements, the pay-off section may use braking, magnetic powder tension, active motorized control, Dancer feedback, or another suitable method.

For smaller electronic wires, a sudden tension increase can be much more serious than it is for a heavier cable. We therefore prefer to select the tension system according to the actual material instead of using one fixed solution for every customer.

Cable Guidance

After leaving the pay-off reel, the material passes through guide wheels or guide assemblies. The cable path should be clear and stable, with unnecessary bending kept to a minimum.

Guide-wheel size matters. A wheel that is too small for a larger cable can create excessive bending. Poor alignment can also cause the cable to rub against the side of a guide.

When required, straightening components can be added to help reduce the memory left by the original reel.

Length Measurement

Many customers use an integrated cable rewinding machine because they need to divide a large production reel into smaller reels of fixed length.

A measuring device records the cable passing through the machine. Depending on the control configuration, the operator can enter a target length before production. The system can then monitor the measured value and stop when the required length is reached.

Measurement accuracy is influenced by cable surface, measuring-wheel pressure, wheel diameter, material slip, line acceleration, and the selected counting method. If your customer requires strict delivery-length tolerance, we recommend defining this tolerance before machine production.

Traverse Movement

Traverse movement is one of the most visible parts of rewinding quality.

The cable guide moves across the reel width while the reel rotates. The movement must match cable diameter and reel rotation. If traverse pitch is too large, spaces appear between turns. If it is too small, turns may overlap.

The reversal points also need to match the usable reel width. If they are set incorrectly, cable may accumulate near one flange.

Depending on the machine configuration, the SC Integrated 630 Rewinding Machine can use adjustable traverse control to make product changeover easier.

Take-Up Control

The receiving reel is driven at a controlled speed. During startup, the operator can use a lower speed to check reel alignment, cable position, and traverse movement. After stable operation is confirmed, the production speed can be increased.

Acceleration and deceleration are also important. A loaded 630 mm reel has more rotating inertia than an empty reel. Sudden braking may disturb the finished winding, so drive settings should be selected according to the real load.

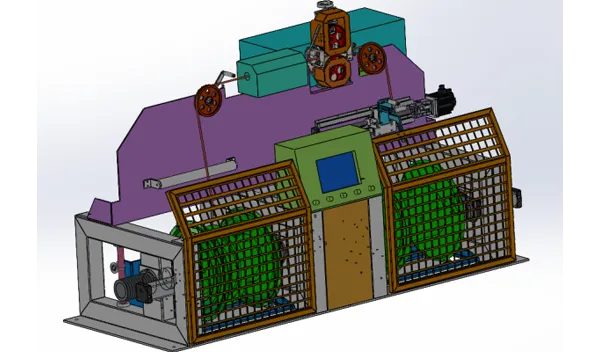

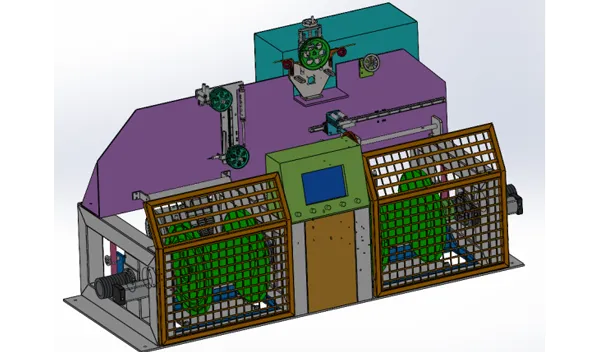

2. What Makes an Integrated 630 Rewinding Machine Different?

Not every rewinding machine has the same structure. Some factories use separate pay-off stands, separate meter counters, separate tension equipment, and an independent Take-up Machine. This arrangement can work, especially when each component already exists in the factory.

An integrated system is intended to bring key functions into a more coordinated machine layout.

For many factories, this can simplify installation, reduce the distance between process sections, improve operator access, and make the control logic easier to manage.

Source note: This comparison is based on common industrial layouts for cable pay-off, rewinding, traverse, and take-up equipment. Publicly available 630-class equipment shows both independent stands and combined take-up/traverse arrangements. For example, published equipment includes 630 mm shaftless single take-up stands, dual-bobbin take-up and traverse systems, and integrated pay-off arrangements.

More Compact Layout

Factory floor space matters, especially when a rewinding station is added to an existing production area.

An integrated structure can help reduce unnecessary space between individual units and make the cable path shorter and clearer.

More Coordinated Controls

When several separate machines are used, operators may need to adjust speed at one location, tension at another, and length settings at a third position.

An integrated configuration can centralize key functions so that daily operation becomes easier.

Better Process Visibility

Operators need to see what the cable is doing.

They should be able to watch the source reel, guide system, measuring section, traverse point, and receiving reel without constantly moving between separate machines.

A practical layout can therefore reduce unnecessary operator movement and make abnormal winding easier to notice.

3. Main Technical Features of the SC Integrated 630 Rewinding Machine

Adjustable Rewinding Speed

Different wires and cables require different production speeds. A thin electronic wire may allow relatively fast operation, while a thicker or heavier cable may need a lower speed.

We therefore use adjustable drive control instead of treating maximum speed as the only important performance value.

For buyers, we recommend focusing on the speed your production really needs.

Stable Tension Management

Tension determines whether the cable stays controlled between pay-off and take-up.

Too much tension may stretch the product, deform insulation, compress lower winding layers, or increase mechanical load. Too little tension may produce slack cable and irregular reel formation.

The proper solution depends on cable diameter, conductor structure, insulation material, line speed, and reel weight.

Uniform Traverse

Good traverse control gives the finished reel a more consistent shape and helps reduce crossed or piled cable.

For manufacturers producing several cable specifications, adjustable traverse parameters are particularly useful because the guide movement can be matched to different product diameters.

Reel Compatibility

The number “630” describes the general reel class, but reel flange diameter alone is not enough for machine selection.

We normally ask customers to provide:

• Minimum reel flange diameter

• Maximum reel flange diameter

• Reel width

• Barrel diameter

• Center-hole dimensions

• Maximum loaded reel weight

• Reel material

• Required winding width

A reel drawing is one of the most useful documents a buyer can send us.

PLC and HMI Options

For higher automation requirements, PLC and touchscreen control can be discussed.

The operator may use the interface to view production length, speed, machine status, alarms, and process parameters.

For factories producing many products, stored parameter recipes can also make changeover more convenient when included in the selected control system.

Emergency and Safety Controls

A rewinding reel is a rotating mechanical component, so safety cannot be ignored.

Depending on project requirements, protection can include emergency stops, guards, overload protection, interlock switches, electrical protection, controlled braking, and other suitable measures.

Final safety configuration should be confirmed according to machine design, destination regulations, and the customer's internal factory standards.

Industry Reference Data for 630-Class Cable Handling Equipment

Sources: Publicly available technical information from Capstian cable pay-off and take-up equipment, S&A portal pay-off/take-up equipment, and Supermac/Kinrei take-up and pay-off systems. These figures show how different 630-class machines can be configured for different loads, cable sizes, and speeds.

These values are provided only as industry references. They are not guaranteed specifications of the SC Integrated 630 Rewinding Machine. Final reel range, line speed, load capacity, motor power, cable diameter, and control functions are confirmed in the technical agreement for each Shuochuan order.

The table also shows why buyers should not compare machines only by the number “630.” One machine may be intended for small wires and higher speed, while another handles heavier reels and larger cables.

4. Applications: Where We Use the SC Integrated 630 Rewinding Machine

The SC Integrated 630 Rewinding Machine can support several wire and cable production applications when the machine configuration is matched correctly to the product.

Electronic Wire Production

Electronic wire manufacturers often produce many cable specifications and may need frequent reel changes.

An integrated rewinding machine can be used to divide production reels, prepare finished reels, transfer material from damaged spools, or prepare wire for later processing.

Because electronic wires can be relatively small, stable tension and smooth guiding are particularly important.

Automotive Wire Manufacturing

Automotive wires may later enter high-speed cutting, stripping, crimping, and harness production equipment.

Poorly wound reels can create unstable downstream pay-off. Uniform rewinding helps make later processing easier and can reduce manual intervention at the next machine.

Photovoltaic Cable Production

PV cable production includes conductor processing, insulation extrusion, cooling, testing, marking, and take-up.

After production, cable may need to be transferred from a larger production reel to smaller reels for testing, storage, or customer delivery.

For this application, the machine should avoid unnecessary surface damage and maintain suitable cable tension.

BV and Building Wire

We manufacture automated BV and BVVB extrusion production lines, so this is an application we understand well.

Building wire production often requires efficient coordination between extrusion, cooling, testing, measuring, rewinding, coiling, and packaging.

The 630 Wire Rewinding Machine can provide an intermediate or final reel-handling solution depending on the customer's production process.

Communication Cable

Communication and network cable may require careful tension and bending control.

The exact machine configuration should therefore reflect cable construction, outside diameter, shielding structure, and downstream processing requirements.

Charging Cable and New-Energy Cable

Charging cables can be larger, heavier, and more flexible than basic electronic wire.

For these products, reel support, guide-wheel diameter, cable bending, tension, and take-up torque deserve more attention.

Inspection and Rework

Rewinding machines are not used only for normal production.

They can also support inspection, rework, reel replacement, fixed-length preparation, and batch separation.

When the cable moves from one reel to another, operators can inspect its surface. Additional measuring or testing equipment may also be integrated where required.

Conductor Construction Matters

Cable handling equipment needs to match the conductor and finished cable structure.

IEC 60228:2023 covers conductor cross-sectional areas from 0.5 mm² to 3,500 mm² and includes solid, stranded, Milliken, copper, aluminium, aluminium-alloy, and flexible copper conductors used in different cable applications.

This wide range explains why a cable rewinder cannot be selected simply by reel diameter. Flexible Copper Wire, a larger power conductor, and a small insulated electronic wire can all require different tension, guide, and speed settings.

5. How to Select the Right SC Integrated 630 Rewinding Machine Configuration

When customers ask us for a quotation, we prefer to start with production data.

A short list of accurate information is far more useful than asking only, “How much is a 630 rewinding machine?”

Confirm the Cable Diameter

Tell us the minimum and maximum outside diameter you plan to process.

Cable diameter affects guide size, traverse pitch, bending behavior, reel capacity, and practical operating speed.

Confirm Reel Dimensions

Send a reel drawing whenever possible.

Two reels can both have a 630 mm flange but different widths, barrel diameters, center holes, and loaded weights.

Public 630-class machinery demonstrates this difference clearly. Some published double-reel systems use 400-630 mm reel ranges and list maximum loads around 600 kg, while other 630-class systems publish different loading and cable limits.

Confirm Maximum Reel Weight

Maximum loaded reel weight affects the frame, bearings, reel shaft or pintles, drive torque, braking, lifting, and clamping system.

This is one of the parameters buyers should never estimate casually.

Confirm Normal Production Speed

Tell us the speed you actually plan to use every day.

It is easy to advertise a high maximum speed, but stable production at your normal working speed is more important.

Higher speed may require more precise balance, stronger drive response, improved tension control, better guarding, and more careful reel quality.

Confirm Required Length Control

If you sell cable in fixed lengths, tell us your common reel lengths and acceptable tolerance.

Typical customer orders may involve hundreds or thousands of meters, but the exact requirement depends on your market.

Confirm Factory Layout

We also need the available machine area, cable path height, production direction, and nearby equipment.

If the machine will work with an existing extrusion or inspection line, photos and layout drawings are useful.

Source note: This procurement table is based on standard engineering inputs required when selecting wire and cable take-up, pay-off, and rewinding machinery. Public equipment specifications regularly identify bobbin size, cable diameter, motor power, reel load, take-up speed, lifting method, and tension method as core selection parameters.

6. How We Manufacture and Test the SC Integrated 630 Rewinding Machine

At Shuochuan, we integrate equipment R&D, manufacturing, and sales. We have obtained more than ten utility model patent certificates, and our quality-management approach covers product development through manufacturing and inspection.

For us, manufacturing a rewinding machine means controlling more than the frame.

Frame Fabrication

The machine frame supports the reel, motor, bearings, guide structure, traverse unit, and electrical components.

During rewinding, reel weight and rotating inertia change as cable transfers between reels. A rigid frame helps maintain alignment and reduces unnecessary movement.

Reel Support Structure

The reel support system may use shafts, pintles, cantilever structures, or another arrangement depending on the selected design.

We confirm reel dimensions and load before finalizing this section.

Public cable machinery also shows that 630-class equipment may use manual, pneumatic, electric, or hydraulic lifting and clamping depending on the application.

Drive Assembly

Motor, transmission, coupling, bearings, and reel-driving components must operate smoothly over the required speed range.

We also consider acceleration and braking rather than only continuous running speed.

Traverse Assembly

The traverse unit is installed and adjusted so that the cable guide moves smoothly across the required reel width.

Reversal points, guide position, travel range, and adjustment method are checked during assembly.

Electrical Control

Depending on configuration, the electrical system can include motors, variable-frequency drives, PLCs, touchscreens, sensors, meter counters, emergency-stop circuits, and overload protection.

We confirm voltage, frequency, and phase according to the customer's factory.

Pre-Delivery Functional Test

Before delivery, the equipment is assembled and checked according to the confirmed order.

Testing may include:

• Start and stop operation

• Motor rotation direction

• Speed adjustment

• Acceleration and deceleration

• Pay-off operation

• Reel clamping

• Traverse movement

• Traverse reversal

• Length measurement

• Tension-system response

• Emergency-stop function

• Sensor operation

• Alarm function

• Control-panel operation

• Abnormal vibration and noise inspection

If a customer can provide representative cable and reel samples, we recommend testing with actual material whenever practical.

Factory Acceptance Test

For customized projects, FAT conditions should be confirmed before manufacturing is completed.

The test can cover cable specification, reel size, target speed, tension behavior, length measurement, traverse result, control functions, and safety functions.

Clear acceptance requirements make the project easier for both sides because everyone understands how the machine will be evaluated before shipment.

7. Production Cycle, Payment, Packing and Delivery

Production Cycle

The typical production cycle for our rewinding equipment is approximately 30–60 days.

Actual lead time depends on the technical configuration, degree of customization, automation functions, purchased components, and production schedule.

A standard machine with conventional controls normally requires less engineering work than an integrated system with servo traverse, automatic length control, custom reel loading, additional inspection functions, or special connection with an existing line.

Payment Terms

Our common reference payment method is 30% T/T deposit and 70% balance before shipment.

Other payment arrangements can be discussed according to the project and commercial agreement.

The signed contract or proforma invoice remains the final basis for payment conditions.

Delivery Standard

Before shipment, the SC Integrated 630 Rewinding Machine is assembled, tested, and inspected according to the agreed technical parameters.

The delivery scope can include:

• Main rewinding machine

• Integrated electrical control system

• Specified pay-off and take-up components

• Standard accessories

• Operating manual

• Electrical information

• Packing list

• Relevant technical documentation

• Installation guidance according to the project

Export Packing

Long-distance machinery transport involves truck movement, port handling, container loading, vibration, humidity, and possible temperature changes.

We normally protect equipment with moisture-resistant wrapping, reinforced fixation, and export-suitable wooden bases, pallets, or wooden cases where appropriate.

Moving components are secured, while control panels, displays, sensors, and precision components receive additional protection when required.

Transportation

Sea freight is usually the most practical option for complete machines exported overseas.

Road, rail, or combined transportation may also be used according to destination.

After the final configuration is confirmed, packing dimensions and machine weight can be provided for logistics planning.

Installation and Commissioning

We complete as much machine assembly and testing as practical before shipment.

After arrival, site work normally includes positioning, electrical connection, reel installation, cable threading, parameter setting, and trial production.

Operating documentation and technical guidance can be supplied according to the agreed service scope.

8. Why Choose Shuochuan and SC Integrated 630 Rewinding Machine?

We believe a rewinding machine should be selected as part of the production process, not as an isolated piece of equipment.

Our experience in cable extrusion lines, BV and BVVB automatic lines, photovoltaic cable lines, automotive wire lines, electronic wire lines, communication cable lines, charging cable lines, and take-up/pay-off equipment gives us a broader view of how rewinding connects with production.

We Understand Upstream and Downstream Equipment

If the rewinding machine needs to work with an extruder, Diameter Gauge, spark tester, printer, dancer, Preheater, Tension Frame, or packaging unit, we can discuss these interfaces during the project.

This is especially useful when customers are building a new production line rather than purchasing one stand-alone machine.

We Support Customized Configuration

Different factories have different reels, products, layouts, voltages, and operating habits.

We therefore encourage customers to provide actual production information instead of selecting equipment only from a catalog image.

We Focus on Practical Automation

Automation should reduce operator work rather than add unnecessary complexity.

When PLC control, servo traverse, automatic measurement, fault alarms, or other functions genuinely improve the production process, we can discuss them.

When a simpler machine is enough, we do not believe every customer needs the most complicated configuration.

We Test Before Shipment

Machine assembly and functional testing are completed before delivery according to the agreed project scope.

For customized machines, clear FAT conditions help verify that the equipment matches the technical agreement.

We Provide Export-Oriented Support

International machine orders involve more than manufacturing.

Packing, electrical standards, documentation, shipment, installation, spare parts, and technical communication all matter.

We provide the documentation and guidance agreed for each project to help customers move from equipment delivery to commissioning more smoothly.

SC Integrated 630 Rewinding Machine FAQ

What is the SC Integrated 630 Rewinding Machine?

It is a wire and cable rewinding system designed around the 630 reel class and intended to combine key rewinding functions such as cable pay-off, tension management, guiding, length measurement, traverse movement, take-up, and electrical control in a coordinated machine arrangement.

What does “integrated” mean?

It means that several process functions can be designed as one coordinated rewinding system instead of using completely separate machines for each stage.

Does the machine only use 630 mm reels?

Not necessarily. The actual reel range depends on the final configuration.

Industry equipment commonly shows 630-class machines covering ranges such as 400-630 mm or 500-630 mm. We confirm the exact reel range according to the customer's reel drawings.

What cables can be processed?

Depending on configuration, the machine may be used for electronic wire, automotive wire, photovoltaic cable, building wire, communication cable, charging cable, power cable, and other suitable wire and cable products.

Can it automatically measure cable length?

Yes, a meter-counting and preset-length control system can be configured.

The required length tolerance should be confirmed during technical discussion.

Can I adjust the rewinding speed?

Yes. Adjustable speed control is an important part of normal rewinding operation.

The practical speed range depends on cable size, reel weight, machine configuration, and production requirements.

Can you add automatic tension control?

Different tension-control solutions can be discussed, including magnetic powder control, dancer systems, active drives, and coordinated control depending on the product.

Can one machine process several cable diameters?

Yes, within the machine's designed operating range.

Operators may need to adjust tension, traverse pitch, guide settings, and speed when changing cable specifications.

Can it connect with an extrusion line?

Yes. Because we manufacture extrusion equipment and related cable machinery, we can discuss line direction, center height, speed matching, control interfaces, and layout.

Can the machine be customized?

Yes. Reel size, reel weight, cable diameter, speed, tension method, traverse system, measurement, reel loading, electrical voltage, PLC functions, and machine layout can be discussed according to the project.

What information should I provide for a quotation?

Please provide:

• Cable type

• Cable diameter range

• Reel drawing

• Maximum loaded reel weight

• Normal and maximum required speed

• Required reel length

• Factory voltage and frequency

• Production direction

• Required automation functions

• Available installation space

What is the normal production time?

The reference production cycle is approximately 30–60 days, depending on configuration and customization.

What payment terms do you normally use?

A common reference term is 30% T/T deposit and 70% balance before shipment. Final payment conditions follow the signed commercial agreement.

How is the machine packed for export?

We normally use moisture-resistant wrapping, reinforced fixing, and suitable export wooden bases, pallets, or cases according to the machine structure and transport method.

How should I compare different 630 rewinding machines?

Do not compare only maximum speed and price.

Check reel range, maximum loaded reel weight, cable diameter, tension method, traverse structure, length measurement, motor and drive system, reel loading method, control functions, safety protection, FAT requirements, technical documents, and after-sales support.

Talk to Us About Your SC Integrated 630 Rewinding Machine Project

If you are planning a new wire and cable production line, upgrading an existing rewinding station, adding fixed-length reel processing, or replacing older equipment, we recommend starting with your actual production data.

At Wuxi Shuochuan Electromechanical Equipment Manufacturing Co., Ltd., we can discuss an SC Integrated 630 Rewinding Machine configuration according to your cable diameter, reel dimensions, loaded reel weight, production speed, tension requirements, target length, automation level, and factory layout.

A suitable rewinding machine should do more than turn a reel. It should help your production team maintain stable cable movement, consistent tension, neat winding, reliable length control, and easier daily operation.

Send us your reel drawing and cable specification to discuss a suitable SC Integrated 630 Cable Rewinding Machine for your production process.

Industry Reference Sources: Public technical information from Capstian cable pay-off and take-up systems, S&A portal pay-off/take-up equipment, Supermac/Kinrei take-up and pay-off systems, Hengtai 630 mm motorized and magnetic pay-off equipment, and IEC 60228:2023 conductor information. Third-party values included above are provided for buyer education and industry comparison only. Final Shuochuan specifications are those stated in the signed technical agreement.
