When I talk with cable manufacturers about a High Speed Vertical Cage Strander, I usually start with a simple question: what kind of cable are you planning to make? The reason is straightforward. Stranding equipment is not something that should be selected only by looking at machine speed or appearance. The conductor structure, wire material, cable size, production target, take-up method, and the machines connected before and after the stranding process all matter.

At Wuxi Shuochuan Electromechanical Equipment Manufacturing Co., Ltd., we design and manufacture equipment for wire and Cable Production. Our product range covers high-speed extruders, BV extrusion automatic Production Lines, BVVB automated production lines, photovoltaic wire and Cable Production Lines, automotive Wire Production lines, electronic Wire Production Lines, network communication wire production lines, cable production lines, charging pile cable production lines, take-up and unwinding equipment, Auxiliary Equipment, and related raw materials.

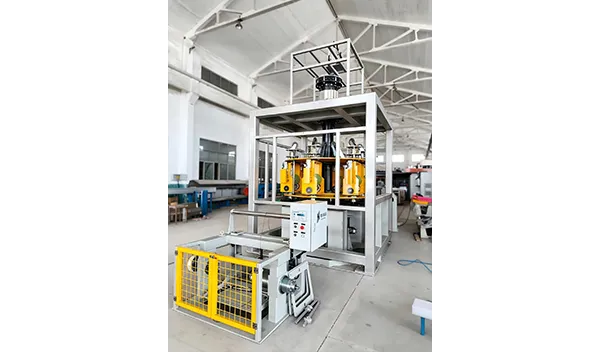

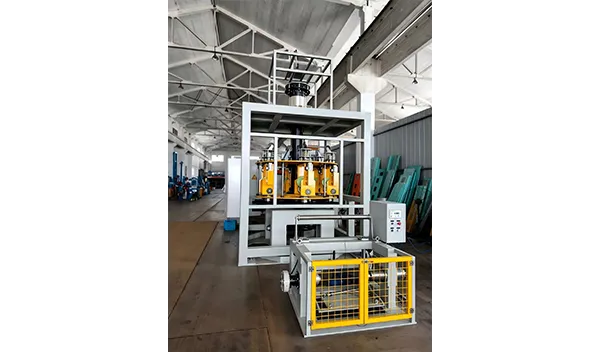

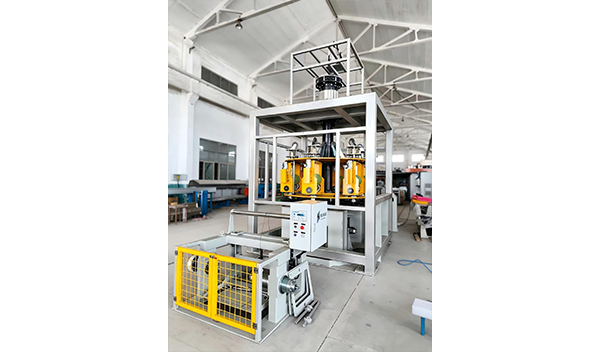

Our High Speed Vertical Cage Strander is designed for continuous and stable conductor stranding. It can be configured for different production requirements and integrated with related pay-off, tension-control, take-up, and downstream equipment. We do not treat the machine as a standalone rotating unit. We look at the whole Production Process because that is what customers actually deal with on the factory floor.

In a real cable factory, a machine may run for many hours every day. Operators need to load conductors, monitor tension, check the strand, handle reels, make routine adjustments, and keep the production line moving. So, in my view, a useful Stranding Machine should be stable, practical, understandable, and reasonably easy to maintain.

1. What Is a High Speed Vertical Cage Strander?

A High Speed Vertical Cage Strander is industrial equipment used to combine multiple individual wires or conductors into a controlled stranded conductor. The machine uses a cage-type rotating structure together with wire pay-off, guiding, tension-control, gathering, and take-up systems to create the required strand.

The basic idea is easy to understand. Imagine several individual copper or aluminium wires that need to become one conductor. They cannot simply be pulled together. Each wire needs to follow a defined path, and the wires need to be combined in a controlled way. The rotating cage creates the required movement while the guiding and tension systems help keep the individual wires in position.

The word “vertical” refers to the machine's general structural arrangement. Compared with a horizontal arrangement, a vertical cage structure can offer a different way of organizing the wire paths and machine footprint. Whether this arrangement is the right choice depends on the customer's cable product, workshop layout, production plan, and other equipment.

The word “high speed” should also be understood in the context of the complete production line. High-speed cable production is not simply about making one rotating component turn faster. If the conductor feeding, tension, guiding, gathering, and take-up systems cannot keep up with the required process, simply increasing speed will not automatically improve production.

That is why we focus on coordinated operation. The machine needs to maintain a suitable relationship between rotational movement and linear wire movement. The finished conductor should leave the stranding area in a stable condition and be collected properly for the next process.

Our Vertical Cage Strander Machine can be considered for a wide range of cable manufacturing applications, including power cables, electrical wires, automotive wires, photovoltaic cables, communication-related cable products, charging cables, and other suitable stranded conductor products.

The final configuration is confirmed according to the actual product. We do not recommend choosing a machine simply because a certain model appears suitable on paper. The cable construction comes first, and the equipment should be built around that requirement.

2. How Does a Vertical Cage Strander Work?

The working principle of a cage strander is based on controlled feeding, rotation, gathering, and take-up. Individual wires are supplied from pay-off positions. These wires are guided toward the central stranding area while maintaining suitable tension. The cage rotates around the production path, creating the movement needed to twist the wires together.

Once the wires reach the gathering point, they form the required stranded conductor. The finished conductor then travels toward the take-up system, where it is collected continuously.

Although the principle sounds simple, the actual machine involves many coordinated parts.

Wire Pay-Off

The process starts with individual wires supplied from pay-off units. Each wire needs to leave its reel smoothly. Sudden resistance, excessive tension, or poor reel alignment can affect the material path.

For this reason, pay-off equipment is not a minor accessory. It is an important part of the complete Cable Stranding Machine system.

Wire Guiding

After leaving the pay-off, each conductor follows a defined path. Guide components help keep the wires separated and positioned correctly before they reach the stranding area.

This becomes especially important when several wires are being processed at the same time. A small deviation in one wire can affect the way the whole group comes together.

Tension Control

Tension is one of the key factors in stable stranding. If one conductor is pulled much harder than another, the final strand may not have the expected structure.

Our engineering approach therefore considers the relationship between pay-off, wire tension, cage rotation, linear movement, and take-up. The exact arrangement depends on the machine configuration and production requirements.

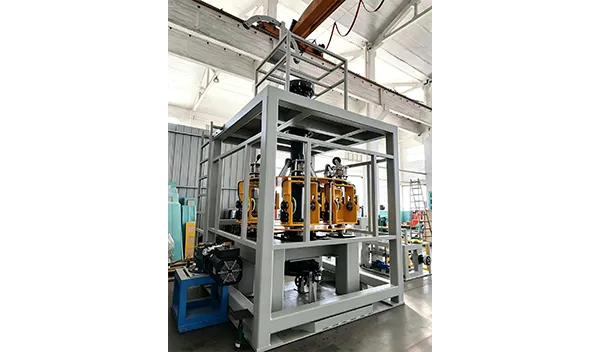

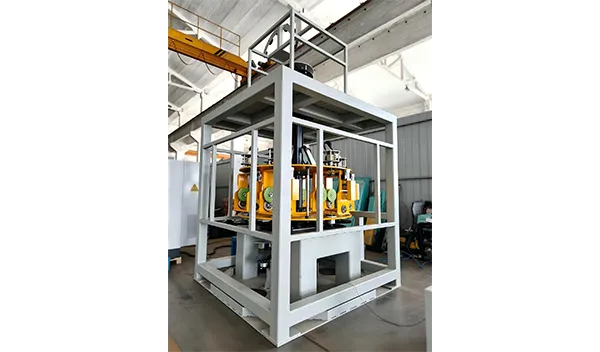

Vertical Cage Rotation

The cage is the main rotating structure of the machine. Its movement creates the twisting action that combines the individual wires into a stranded conductor.

For a high-speed application, mechanical balance, rotating components, bearings, drive control, and machine rigidity all become important. A fast machine that vibrates excessively is not a good production machine. Smooth operation is much more useful than a speed figure by itself.

Gathering and Take-Up

After the wires have been stranded, they need to be collected and wound onto a reel or passed to another process. The take-up system must work together with the stranding process.

If the take-up is not properly coordinated, even a well-designed stranding section can experience production problems. This is why we consider the complete line when discussing a customer's project.

Typical Process Flow

Wire Pay-Off → Guiding → Tension Control → Vertical Cage Rotation → Stranding Point → Gathering → Take-Up

The actual arrangement can be modified according to the cable structure, machine configuration, factory conditions, and production requirements.

3. Main Features of Our High Speed Vertical Cage Strander

When I describe the main features of our High Speed Vertical Cage Strander, I prefer to keep the discussion practical. A cable manufacturer does not need a long list of impressive-sounding words. The important question is whether the machine can make daily production easier and more stable.

Stable Continuous Stranding

The machine is designed for continuous conductor stranding. The goal is to keep wire movement, cage rotation, gathering, and take-up properly coordinated throughout production.

This is particularly important for long production runs. If the machine has to stop frequently for unnecessary adjustments, material waste and production downtime can increase.

High-Speed Production Capability

The machine is developed for high-speed industrial cable manufacturing applications. However, the suitable operating speed should always be determined according to the conductor structure, wire material, product size, machine configuration, and production conditions.

I would rather give a realistic operating range based on the actual project than promise a large number that does not match the customer's product.

Controlled Conductor Tension

Consistent tension helps individual wires enter the stranding section in a more controlled condition. This can contribute to more stable strand formation and reduce unnecessary adjustment during production.

Vertical Cage Structure

The vertical arrangement provides a different machine layout compared with horizontal cage equipment. This can be useful when planning factory space, material flow, operator access, and connections with other production equipment.

Flexible Line Integration

The machine can be integrated with different pay-off, take-up, control, and auxiliary systems according to the customer's requirements. For manufacturers that already have part of a cable production line, this can be important.

Practical Operation

Operators should be able to understand the main machine functions without having to fight with the equipment every day. We therefore pay attention to machine controls, material paths, adjustment points, and maintenance access during equipment development and assembly.

Source note: This table is an engineering-oriented product summary rather than a standardized performance table. Actual machine performance depends on the final configuration and customer requirements.

4. Technical Advantages: Why High-Speed Stranding Requires More Than Speed

There is a common misunderstanding in cable machinery: if a machine rotates faster, it must automatically produce more. In practice, it is not that simple.

When production speed increases, every part of the system has to respond properly. Wire feeding becomes more sensitive. Tension changes can become more noticeable. Mechanical vibration becomes more important. Take-up coordination becomes more demanding. Operators may also have less time to react to small production changes.

That is why we look at several factors together.

Mechanical Stability

A rotating cage needs good mechanical balance and suitable structural strength. At higher operating speeds, even a small mechanical problem can become more noticeable.

Bearings, shafts, rotating components, supporting structures, and related parts need to be selected and assembled carefully. The purpose is simple: keep the machine running smoothly and reduce unnecessary vibration.

Drive and Control Coordination

The drive system controls the movement of the rotating structure and needs to work with the rest of the production line. Depending on the configuration, electrical control can include drive equipment, sensors, control devices, safety functions, and other components.

IEC 60204-1 is an important reference for electrical equipment of machines. The IEC describes requirements covering areas such as power drive systems, electromagnetic compatibility, overcurrent protection, protective bonding, emergency stop functions, control circuit protection, and technical documentation.

Better Material Control

High-speed operation makes the wire path more important. The conductor should not move randomly inside the machine. It needs to follow a controlled route from pay-off to stranding point and finally to take-up.

This is why guide design, reel alignment, tension, and take-up coordination should be considered together.

Reduced Unnecessary Downtime

In a cable factory, production time has real value. A machine that runs steadily for long periods is easier to plan around than one that constantly requires attention.

Routine maintenance can never be eliminated, but a sensible machine design can make inspection and adjustment more manageable.

Safety-Oriented Design

A cage strander contains moving and rotating parts, so machine safety must be considered from the design stage. ISO 12100:2010 provides general principles and a methodology for machinery risk assessment and risk reduction. ISO explains that the standard addresses hazard identification, risk estimation and evaluation, risk reduction, and documentation and verification of the risk assessment process.

For our equipment, safety should not be treated as a sticker added after the machine is built. Guards, emergency-stop functions, electrical protection, operator access, and maintenance procedures all need to be considered according to the actual machine design.

Source: Safety-related principles are referenced from ISO 12100:2010 and electrical machine-equipment requirements from IEC 60204-1:2016+A1:2021. These standards provide general engineering frameworks; they do not mean that every machine automatically conforms to every requirement simply because the standards are mentioned. Project-specific compliance must be evaluated according to the final machine and destination market.

5. Cable Industries and Applications

The High Speed Vertical Cage Strander is mainly intended for wire and cable manufacturers. However, different cable products require different conductor structures, so machine configuration needs to follow the product.

Power Cable Manufacturing

Power cables are one of the most common areas where stranded conductors are used. Multiple individual wires are combined to form a conductor with the required structure.

IEC 60228:2023 specifies nominal cross-sectional areas from 0.5 mm² to 3,500 mm² for conductors in electric power cables and cords of a wide range of types. It also includes requirements concerning wire numbers, wire sizes, and resistance values. The standard covers solid, stranded, and Milliken copper, aluminium, and aluminium alloy conductors within its stated scope.

This is useful information when discussing conductor production because it shows how much variation exists in cable conductor design. A manufacturer cannot simply use one stranding configuration for every power cable.

Electrical Wire

Electrical wire production may require stranded conductors for flexibility and handling. The exact construction depends on the finished wire and applicable product standard.

Our equipment can be configured for suitable electrical wire applications based on conductor material, wire structure, production requirements, and downstream insulation equipment.

Automotive Wire

Automotive cable manufacturers often care about conductor flexibility, stable production, and consistent finished dimensions. The stranding process is one part of this manufacturing chain.

For automotive applications, we recommend discussing the complete conductor structure before machine selection rather than choosing equipment from the product name alone.

Photovoltaic Cable

Photovoltaic cable production is another application where reliable conductor processing matters. A photovoltaic cable production line may include conductor stranding, insulation extrusion, cooling, testing, take-up, and other processes.

Our company also manufactures photovoltaic wire and cable production lines, so we can discuss the relationship between the stranding stage and downstream extrusion equipment.

Charging Cable

Electric vehicle charging cables and related products can contain conductors with specific construction and flexibility requirements. The suitable stranding process depends on the cable design.

We can evaluate the conductor structure and discuss how a stranding machine can be connected with other equipment in a charging cable production line.

Communication and Electronic Cables

Electronic and communication-related cable products may have very different conductor structures from power cables. This is an important point for machine selection.

IEC 60228:2023 itself states that its scope does not apply to conductors for telecommunication purposes. That is a good reminder that manufacturers should always identify the actual cable product and applicable standard instead of assuming that one conductor standard covers everything.

Source note: Application descriptions reflect typical cable-manufacturing uses and should not be interpreted as a statement that every machine configuration is suitable for every cable. IEC 60228:2023 is specifically a conductor standard for insulated electric power cables and cords within its stated scope.

6. How We Manufacture, Test and Deliver the Machine

For customized industrial machinery, manufacturing starts before the first piece of metal is processed. It starts with understanding the customer's product.

At Wuxi Shuochuan Electromechanical Equipment Manufacturing Co., Ltd., we integrate R&D, manufacturing, and sales. We have obtained more than ten utility model patent certificates and have developed a range of automated equipment for wire and cable manufacturing.

When a customer contacts us about a High Speed Vertical Cage Strander, we first need to understand the production requirements. Depending on the project, this can include:

• Conductor material

• Wire or conductor size

• Number of individual wires

• Required conductor construction

• Target production capacity

• Required lay and stranding arrangement

• Pay-off requirements

• Take-up and reel requirements

• Factory space and equipment layout

• Electrical supply and control requirements

• Connection with existing production equipment

Once the technical information is confirmed, the equipment can move into the manufacturing stage.

Mechanical Processing

The machine frame, rotating components, shafts, supports, guides, and other mechanical parts are prepared according to the agreed design. For rotating machinery, alignment and balance are particularly important.

Component Assembly

After mechanical parts are prepared, the machine is assembled. We check the relationship between major moving components rather than looking at each part separately.

Electrical Installation

Electrical components are installed according to the agreed control configuration. Depending on the project, this may include drives, control cabinets, sensors, switches, safety devices, operator interfaces, and related wiring.

Running and Functional Testing

Before shipment, the machine is assembled, inspected, adjusted, and tested according to the agreed technical requirements. The purpose is to identify problems before the machine reaches the customer's factory.

We check mechanical movement, electrical functions, control operation, and related production functions applicable to the final configuration.

Typical Production and Delivery Period

For the High Speed Vertical Cage Strander, our typical production and delivery cycle is generally 30–90 days after technical specifications and order details have been confirmed.

The actual schedule can vary. A standard configuration and a highly customized project are not the same thing. Component availability, production workload, machine configuration, testing requirements, and shipping arrangements can all affect the final delivery date.

For this reason, we prefer to confirm the technical specification and commercial terms before giving the customer a firm project schedule.

7. Quality, Packaging, Payment and International Delivery

Buying industrial equipment from another country involves more than choosing a machine. The customer also needs to understand how the equipment will be inspected, packed, shipped, and handed over.

Quality Management

Our company has passed ISO 19001 quality management system certification according to the company information supplied for this project. Our quality approach covers the manufacturing process from technical preparation through production and inspection.

For customers who compare international machinery suppliers, it is useful to look beyond the certificate itself. A quality management system should support practical processes such as document control, production management, inspection, testing, corrective action, and continuous improvement.

Factory Inspection and Testing

Before shipment, the machine is inspected and tested according to the agreed technical requirements. Where the project requires specific testing or customer inspection arrangements, these can be discussed during the technical and commercial stages.

The goal is simple: reduce surprises after the machine reaches the customer's factory.

Payment Terms

Payment terms are confirmed in the sales contract. A common arrangement for customized machinery is a deposit after order confirmation and the remaining balance before shipment. Other arrangements can also be discussed according to the project and mutually agreed contract terms.

Transportation

Depending on the destination, machine dimensions, weight, delivery schedule, and logistics requirements, the equipment can be transported by sea, rail, or another suitable method.

For international industrial machinery, sea freight is often practical for larger equipment, but the best transportation method depends on the customer's location and delivery conditions.

Packaging

Industrial machinery needs strong protection during transportation. Before shipment, major components can be secured using steel frames, wooden cases, protective film, moisture protection materials, and other suitable packaging methods.

The specific packaging method depends on the machine structure and shipping conditions. The goal is to protect the equipment from moisture, dust, impact, and unnecessary movement during handling and transportation.

Source note: Production, payment, transportation, and packaging information in this table reflects our stated project practice and is not an international standard. Exact arrangements are confirmed for each order.

8. Why Choose Shuochuan for a High Speed Vertical Cage Strander?

There are many cable machinery suppliers available today. I do not believe the right choice should be based on a product photograph or a long list of marketing phrases.

For an industrial machine, the more useful questions are different: Can the supplier understand my cable? Can the machine be configured around my product? Can the manufacturer explain how the equipment will connect with my existing line? Will the machine be tested before shipment? And will someone answer my technical questions after delivery?

These are the questions we try to answer through our way of working.

R&D, Manufacturing and Sales in One Company

Wuxi Shuochuan integrates R&D, manufacturing, and sales. This means technical requirements can be discussed directly with the people involved in the equipment project.

For customized cable machinery, this is useful because small details matter. A change in conductor construction can affect the machine configuration. A change in reel size can affect the take-up section. A change in workshop layout can affect the equipment arrangement.

More Than Ten Utility Model Patents

Our company has obtained more than ten utility model patent certificates. These patents reflect our continuing work on equipment structure and technical development.

Of course, patents alone do not guarantee that a machine is suitable for a particular application. The important point is how technical development is translated into equipment that works in a real production environment.

Experience Across Cable Production Equipment

Our equipment range covers much more than one type of machine. We manufacture high-speed extruders, BV and BVVB automatic production lines, photovoltaic wire and cable production lines, automotive wire production lines, electronic wire production lines, network communication cable production lines, charging pile cable production lines, take-up and unwinding equipment, and auxiliary equipment.

This gives us a broader view of cable manufacturing. When we discuss a stranding machine, we can also consider what happens before and after stranding.

Focus on Practical Efficiency

Our company develops efficient, energy-saving, and human-machine-friendly automated equipment. For a factory, efficiency is not just about maximum speed. It also involves stable operation, reasonable material use, manageable maintenance, operator convenience, and smooth integration with other equipment.

Long-Term Customer Relationships

Our corporate spirit is “Quality First, Continuous Improvement, and Honest Service.” We believe this is particularly important for industrial machinery because a customer's relationship with the manufacturer does not end when the machine leaves the factory.

Technical clarification, installation, commissioning, spare parts, maintenance questions, and future equipment upgrades can all become part of the relationship.

9. Frequently Asked Questions About High Speed Vertical Cage Strander

What is a High Speed Vertical Cage Strander used for?

It is used to combine multiple individual wires or conductors into a controlled stranded conductor. Typical applications include power cables, electrical wires, automotive wires, photovoltaic cables, charging cables, and other suitable cable products.

What materials can the machine process?

The machine can be configured for suitable conductor materials such as copper, aluminium, or aluminium alloy, depending on the specific application. The material, wire size, number of wires, conductor construction, and production requirements should be confirmed before equipment design.

Is the machine suitable for power cable production?

Yes, suitable configurations can be used for power cable conductor production. The correct machine arrangement depends on the conductor size, construction, material, number of wires, required production capacity, and applicable product requirements.

Can it be used for photovoltaic cable production?

Yes. The stranding process can be part of a photovoltaic cable production line when the conductor structure matches the machine configuration. The complete line may also include extrusion, cooling, testing, take-up, and other processes.

What makes a high-speed strander different from an ordinary stranding machine?

The main difference is not simply a higher rotational speed. A high-speed machine needs coordinated mechanical design, drive control, wire feeding, tension control, guiding, and take-up. Increasing speed without controlling these factors can create vibration, wire instability, or production problems.

Can the machine be customized?

Yes. Cable production equipment is often configured according to the customer's actual product. We can discuss conductor material, wire structure, number of wires, cable construction, production target, pay-off, take-up, factory layout, electrical requirements, and other project details.

How long is the production cycle?

The typical production and delivery cycle is approximately 30–90 days after the technical specifications and order details are confirmed. The actual schedule depends on the machine configuration, customization, component availability, testing, and production workload.

How is the machine tested before delivery?

Before shipment, the equipment is assembled, inspected, adjusted, and tested according to the agreed technical requirements. Mechanical movement, electrical control, safety-related functions applicable to the configuration, and other relevant operating functions are checked before delivery.

How is the machine shipped?

Depending on the destination and machine dimensions, we can arrange transportation by sea, rail, or another suitable method. The final method is discussed according to the delivery schedule, destination, machine size, weight, and logistics conditions.

How is the machine packaged?

Major components can be protected with steel frames, wooden cases, protective film, moisture protection materials, and other suitable packaging methods. The equipment is secured to reduce movement and protect important components during transportation.

What information should I provide when requesting a quotation?

The more information we have, the more accurately we can recommend a machine configuration. Useful information includes conductor material, wire size, number of wires, conductor structure, target production capacity, required cable construction, reel requirements, workshop conditions, power supply, and existing equipment that the new machine needs to connect with.

Can the Vertical Cage Strander be integrated into a complete production line?

Yes. We can discuss integration with pay-off systems, take-up equipment, extrusion lines, testing equipment, and other auxiliary machines. The exact combination depends on the customer's finished cable product and production process.

10. Final Thoughts on Choosing a High Speed Vertical Cage Strander

A High Speed Vertical Cage Strander for Cable Manufacturing should be selected according to the actual cable product, not simply according to a machine name.

For one customer, the priority may be continuous production. For another, it may be conductor stability, floor-space planning, easier operation, or integration with an existing extrusion line. A good equipment supplier should be able to understand these differences.

From our side, we focus on the complete production process. We consider the wire pay-off, tension control, vertical cage, gathering point, take-up, electrical control, safety functions, factory layout, testing, packaging, and delivery as connected parts of the project.

Our experience in extrusion equipment and different cable production lines also helps us understand what happens before and after the stranding process. This is useful when a customer wants to build a complete production line rather than purchase a single machine.

At Wuxi Shuochuan Electromechanical Equipment Manufacturing Co., Ltd., we continue to follow our principles of quality first, continuous improvement, and honest service. We believe that industrial machinery should be practical, reliable, and designed around the customer's actual production requirements.

If you are looking for a High Speed Vertical Cage Strander, Vertical Cage Strander Machine, High Speed Stranding Machine, or Cable Stranding Machine, the best place to begin is with your cable specification. Once the product requirements are clear, we can work through the machine configuration, production schedule, testing, payment, packaging, transportation, and installation requirements step by step.

That is how we prefer to build cable machinery: understand the product first, design the equipment around the process, test it before shipment, and keep communication clear throughout the project.
