This equipment is mainly used for extruding silicone rubber wire and cable insulation and sheaths. It can produce single-core and multi-core wire and cable insulation or sheaths in one extrusion and continuous vulcanization molding.
Main Technical Specifications
| Item | Specification |
| Applicable Materials | Extrusion of cold‑feed materials such as silicone rubber |
| Vulcanization Process | Oven vulcanization, water cooling |
| Extruded Outer DiaMeter | 1.8‑6 mm (conductor cross‑section: 0.75‑4 mm², insulation thickness: 0.4‑1.5 mm) |
| Main Unit Center Height | 1000 mm |
| Operation Direction | To be confirmed according to site layout |
| Equipment Color | Main color: Blue RAL5015; Rotating parts: Orange‑red RAL3020 |
| Electric Cabinet Color | Beige RAL1013 |
| Voltage | 3‑400 V |
SC-50 New Energy Silicone Rubber Drying Tunnel Vulcanization Production Line
When I talk about silicone rubber production equipment with customers, I usually start with one simple question: what does the material need during the actual Production Process? This question sounds basic, but it can make a big difference when choosing a machine. Silicone rubber is not processed in exactly the same way as ordinary plastic materials, and the drying and vulcanization stages need to be properly controlled if we want a stable finished product.
Our SC-50 New Energy Silicone Rubber Drying Tunnel Vulcanization Production Line is designed for continuous silicone rubber processing, especially for applications connected with new energy products, wires, cables, electrical components, and other products that require flexible, heat-resistant, or insulating silicone rubber materials.
At Wuxi Shuochuan Electromechanical Equipment Manufacturing Co., Ltd., I look at a production line as a complete system rather than a collection of separate machines. Feeding, extrusion, drying, vulcanization, temperature control, conveying, and take-up need to work together. When these sections are properly matched, the operator has a much easier job and the production process becomes more predictable.
The SC-50 Silicone Rubber Production Line is therefore developed around practical production needs. It is not just about getting silicone rubber through a machine. It is about maintaining a steady process from the beginning of extrusion to the final product.
Silicone rubber is widely valued for its flexibility, temperature resistance, weather resistance, electrical insulation, and long-term stability in demanding environments. These characteristics make it useful in many modern industries. At the same time, silicone rubber processing requires suitable heating and vulcanization conditions. A properly designed drying tunnel can help turn the extruded material into a more stable finished product.
For this reason, when I discuss a new energy silicone rubber drying tunnel vulcanization production line with a customer, I focus on the actual material, product structure, production method, line arrangement, and expected working conditions before confirming the final configuration.
The SC-50 New Energy Silicone Rubber Drying Tunnel Vulcanization Production Line is an integrated production system designed to support continuous extrusion, drying, and vulcanization of silicone rubber materials.
In simple terms, silicone rubber material enters the production process, is formed through the extrusion section, and then passes through a controlled drying and vulcanization environment. The purpose of the tunnel is to provide suitable processing conditions so the extruded silicone rubber can reach the required physical condition.
Vulcanization is an important step in silicone rubber processing. During this stage, the material changes from a soft, freshly formed state into a more stable rubber product. The exact process conditions depend on the silicone rubber formulation, product design, production speed, and equipment configuration.
That is why I avoid giving customers one fixed operating condition for every application. A silicone rubber wire and a silicone rubber sealing profile, for example, may have very different production requirements. The equipment should be configured according to the real application.
The “SC-50” designation identifies our product model, while the actual machine configuration is confirmed according to the customer's production requirements. I recommend that buyers always check the complete technical specification rather than judging a machine only by the model number.

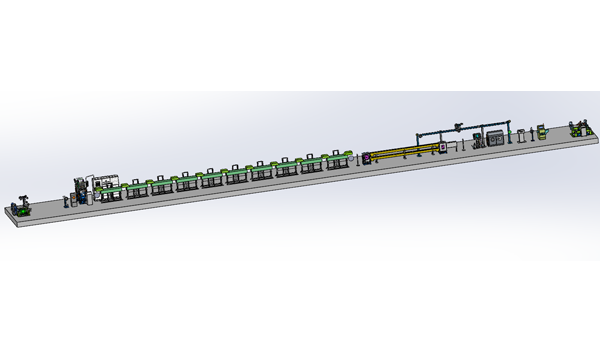

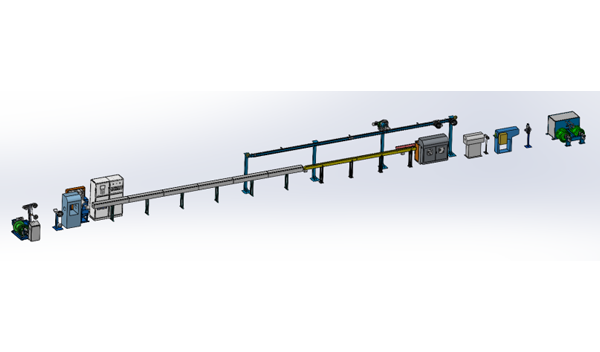

A typical silicone rubber production process can include several connected stages:
Material Feeding → Silicone Rubber Extrusion → Product Forming → Drying → Vulcanization → Cooling or Further Processing → Take-up
The exact configuration can be adjusted according to the customer's product and production method.
For wire and cable applications, for example, the silicone rubber may be extruded around a conductor. The newly formed insulation then needs to pass through a controlled processing environment. After vulcanization and cooling, the finished cable can continue to the take-up section.
In this type of production, every stage affects the next one. If extrusion is unstable, the drying tunnel cannot completely solve the problem. If the vulcanization process is not properly matched to the material, the final product may also be affected.
That is why I always prefer to evaluate the complete production line instead of focusing on a single machine section.
| Production Section | Main Function | Why It Matters |
|---|---|---|
| Material Feeding | Provides silicone rubber material to the extrusion process | Stable feeding supports continuous extrusion |
| Extrusion | Forms the silicone rubber around or into the required product shape | Helps establish product dimensions and surface quality |
| Drying Tunnel | Provides a controlled heating environment | Supports the required material processing conditions |
| Vulcanization | Helps silicone rubber develop its required stable structure | Important for final physical properties |
| Cooling | Reduces product temperature after processing | Helps prepare the product for downstream handling |
| Take-up | Collects the finished wire or continuous product | Supports organized continuous production |
Source: Shuochuan product information and general silicone rubber extrusion and vulcanization practice. Actual line configuration depends on the customer's material and product requirements.
One of the easiest ways to understand this machine is to follow the material through the production line.
First, the silicone rubber material is prepared for extrusion. The feeding system sends the material into the extruder at a controlled rate. The purpose is to keep the material supply steady so the extrusion section can work continuously.
Inside the extruder, the material is processed and pushed forward. The extrusion section forms the silicone rubber into the required shape. For wire and cable applications, this may mean forming silicone rubber insulation around a conductor.
After extrusion, the freshly formed product enters the drying tunnel. This is where the production line becomes different from many ordinary plastic extrusion systems. Silicone rubber often needs a carefully controlled heating and vulcanization process to achieve the required final condition.
The drying tunnel provides a controlled environment for this stage. Heating conditions are managed according to the machine configuration and the customer's material requirements. The product moves continuously through the tunnel while the vulcanization process takes place.
Once the material has completed the required processing stage, it can move toward cooling or other downstream sections. For continuous wire and Cable Production, a take-up system can then collect the finished product into an organized roll.
For me, the drying tunnel is one of the key parts of this type of production line. It is not simply a long heated chamber. It needs to provide a suitable and reasonably stable processing environment along the product path.
Temperature stability is important because uneven processing conditions can affect the final silicone rubber product. The actual requirements depend on the silicone material, product size, production speed, and formulation.
The tunnel also needs to work well with the upstream extrusion process and downstream take-up equipment. If the product travels through the line too quickly or too slowly for the selected process, the overall result may be affected.
This is why we consider the extrusion and vulcanization sections together when developing a complete line.
When I describe the SC-50 silicone rubber extruder to customers, I prefer to talk about practical features rather than use a long list of technical words.
The production line is designed for continuous silicone rubber processing. Instead of repeatedly stopping and starting the process, the connected equipment supports a steady workflow. This is especially useful for wire, cable, and other continuous products.
The drying tunnel provides a controlled heating environment for silicone rubber processing. This helps the material move through the vulcanization stage under defined production conditions.
Stable material feeding is important for extrusion quality. We pay attention to the feeding section because inconsistent material supply can create problems further down the line.
The extruder, drying tunnel, vulcanization section, cooling section, and take-up equipment need to work together. Our production line is developed as a coordinated system rather than several unrelated machines.
Customers may process different silicone rubber materials and produce different products. For this reason, the final configuration is discussed according to the customer's production requirements rather than using one fixed setup for every project.
Automation is useful only when people can operate it comfortably. We focus on practical human-machine interaction so that operators can understand the process, monitor production, and make necessary adjustments more easily.
Before shipment, we assemble, test, and inspect the equipment according to the agreed specifications. This gives us an opportunity to check the complete machine before it reaches the customer's factory.
Buying a silicone rubber extrusion line is a serious investment. From my perspective, the most important question is not simply whether the machine can extrude silicone rubber. The real question is whether the machine can support the customer's actual production process over the long term.
There are several points I recommend checking before placing an order.
| Selection Factor | Questions to Ask | Practical Importance |
|---|---|---|
| Material | What type of silicone rubber will be processed? | Material properties affect extrusion and vulcanization requirements |
| Product | What product will be manufactured? | Product size and structure affect line configuration |
| Vulcanization | What processing conditions does the material require? | The drying tunnel needs to match the material process |
| Production Speed | What continuous production target is required? | Upstream and downstream equipment must be coordinated |
| Automation | How much operator involvement is expected? | Helps determine control and operating requirements |
| Factory Layout | How much installation space is available? | The line needs to fit the customer's production area |
| Future Production | Will the customer process other products later? | Can influence the flexibility of the equipment configuration |
Source: Shuochuan engineering and product information; general industrial silicone rubber extrusion practice.
I also recommend checking how the manufacturer handles testing. A machine can look good during a sales discussion, but the real test begins when all sections operate together.
For this reason, we pay attention to the relationship between extrusion, drying, vulcanization, cooling, and take-up. The line needs to operate as one production system.
Temperature is one of the most important process factors in silicone rubber vulcanization. However, I do not recommend using one generic temperature value for every silicone rubber product.
Different formulations and product designs can require different conditions. The machine should therefore provide suitable temperature control based on the confirmed process requirements.
Stable temperature conditions can help reduce process variation. When the material receives a more consistent processing environment, manufacturers have a better chance of maintaining stable product quality.
Another point that is sometimes overlooked is line speed coordination. The extruder, tunnel, cooling section, and take-up system cannot be considered independently.
If the take-up speed changes significantly while the extrusion process remains unchanged, the product may be affected. Likewise, if the product spends too little time in the vulcanization section, the required processing result may not be achieved.
That is why I prefer a complete-line approach when discussing a silicone rubber extrusion production line.
The SC-50 New Energy Silicone Rubber Drying Tunnel Vulcanization Production Line is particularly relevant to industries where silicone rubber is used for insulation, protection, sealing, or other demanding applications.
New energy is one of the important application directions for modern silicone rubber processing. Products used in new energy systems may need insulation, heat resistance, flexibility, and stable performance over long operating periods.
Our equipment can be considered for suitable silicone rubber production processes related to new energy components and products. The exact application should always be confirmed according to the material and final product requirements.
Wire and cable manufacturing is a major application area for silicone rubber extrusion. Silicone insulation can be useful where flexibility, temperature resistance, and electrical insulation are required.
For continuous cable production, the extrusion and vulcanization stages need to work smoothly together. The SC-50 line is designed around this type of continuous production concept.
Modern vehicles contain many wires and electrical components. Certain automotive applications require flexible and heat-resistant insulation materials. Silicone rubber can be suitable for specific applications where these properties are needed.
Silicone rubber is also used in electrical and electronic applications because of its insulation and temperature-resistant characteristics. The production equipment can support suitable silicone rubber processing requirements for these industries.
Some specialized communication and signal-related cables use silicone or other flexible insulation materials. Production requirements vary, so material compatibility and product design should be confirmed before equipment selection.
Silicone rubber is widely associated with medical and healthcare products because of its flexibility and material properties. However, equipment used for regulated medical applications must be matched to the required material grade, production environment, and appliCable Quality requirements.
Silicone rubber can also be used for seals, tubes, profiles, protective components, and other industrial products. The production method varies depending on the product shape and material formulation.
| Industry | Typical Silicone Rubber Direction | Important Considerations |
|---|---|---|
| New Energy | Insulation and protective components | Heat resistance, flexibility, and electrical requirements |
| Wire & Cable | Silicone-insulated wires and cables | Extrusion stability and vulcanization control |
| Automotive | Heat-resistant wire and electrical products | Material and application requirements |
| Electrical & Electronics | Insulating and protective products | Electrical and thermal requirements |
| Communication | Specialized cable applications | Product structure and material compatibility |
| Medical | Silicone rubber products | Material grade and applicable production requirements |
| Industrial Sealing | Profiles, tubes, and sealing products | Product shape and material formulation |
Source: General silicone rubber application knowledge and Shuochuan product information. Actual equipment suitability depends on the customer's material, product, and production process.
A production line like the SC-50 is not completed in one afternoon. There are several steps between the first customer inquiry and final delivery.
We normally begin by discussing the customer's production requirements. I want to know what material will be processed, what product will be manufactured, what type of production process is required, and how the equipment will be installed in the factory.
We then confirm the technical specifications, configuration, production requirements, delivery schedule, and other important details with the customer.
After the order and technical details are confirmed, manufacturing begins. Mechanical structures, electrical components, control systems, extrusion sections, and other equipment sections are assembled according to the agreed configuration.
Once assembly is completed, we test and inspect the machine before shipment. The purpose is simple: make sure the equipment operates properly according to the agreed requirements.
The production cycle depends on the specific model, configuration, customization requirements, and order quantity. A standard configuration may have a different schedule from a highly customized production line.
Instead of promising one fixed delivery period to every customer, we confirm the actual schedule after the technical configuration has been finalized.
Standard delivery generally includes the complete silicone rubber production line or agreed machine configuration, necessary components, technical documents, and accessories specified in the order.
For customized projects, the final delivery list is confirmed in the sales contract and technical documents.
Payment terms are normally arranged according to the contract. A common industrial equipment arrangement is a deposit before production, followed by the balance before shipment. Exact terms are confirmed with the customer before the order is finalized.
We can arrange transportation by sea, air, or land depending on the destination, machine size, and delivery schedule. For large production lines, sea transportation is often considered because of equipment size, but the final method depends on the project.
Packaging is another practical part of equipment delivery. Long-distance transportation can involve loading, unloading, vibration, humidity, and changes in storage conditions.
We normally use moisture-resistant materials, protective cushioning, and strong export wooden cases or pallets to help protect the equipment during transportation. The packaging method is adjusted according to the equipment structure and shipment requirements.
| Delivery Stage | Our Main Work | Customer Benefit |
|---|---|---|
| Technical Confirmation | Confirm material, process, configuration, and specifications | Reduces misunderstandings before manufacturing |
| Production | Manufacture and assemble the equipment | Builds the agreed production system |
| Testing | Test equipment operation and inspect key sections | Helps identify issues before shipment |
| Documentation | Prepare technical documents and agreed accessories | Supports installation and operation |
| Packaging | Protect equipment for transportation | Reduces risks during handling and shipping |
| Transportation | Arrange sea, air, or land shipment | Delivers equipment to the customer's destination |
Source: Shuochuan production, testing, delivery, payment, transportation, and packaging information.
When customers compare silicone rubber extruder manufacturers, I believe they should look beyond the machine name and price. A production line is a long-term investment, so the manufacturer's engineering background and ability to communicate are also important.
Wuxi Shuochuan Electromechanical Equipment Manufacturing Co., Ltd. is an innovative technology enterprise integrating R&D, manufacturing, and sales. Our business is focused on automated equipment for wire, cable, extrusion, and related production processes.
We have obtained more than ten utility model patent certificates. For me, these patents are not simply numbers to place in a brochure. They reflect our continued work on equipment development and technical improvement.
Our main products include high-speed extruders, three-in-one BV extrusion automatic production lines, three-in-one plus one BVVB automated production lines, photovoltaic wire and Cable Production Lines, automotive Wire Production lines, electronic Wire Production Lines, network communication wire production lines, cable production lines, charging pile cable production lines, take-up and unwinding equipment, Auxiliary Equipment, and related raw materials.
This product background is useful when developing a new energy silicone rubber extrusion line because silicone rubber production often needs to connect with wire, cable, take-up, unwinding, and other production equipment.
We also focus on energy efficiency and practical human-machine operation. In an actual factory, operators need to understand the equipment quickly. Maintenance staff need reasonable access to machine sections. Production managers need stable operation and clear process control.
The company has stated that it has passed ISO 19001 quality management system certification. Because certification information should always be checked against the latest official certificate, customers can request the current certification documents during the purchasing process.
Our company follows the working principle of “Quality First, Continuous Improvement, and Honest Service.” I believe this is particularly important for customized industrial equipment because the relationship does not end when the machine leaves the factory.
For us, successful equipment delivery means that the machine has been properly configured, manufactured, tested, documented, packaged, and prepared for the customer's production environment.
It is a production line designed for continuous silicone rubber processing, integrating extrusion with controlled drying and vulcanization processes. It is particularly suitable for applications related to new energy, wires, cables, electrical products, and other silicone rubber products.
The line is designed for silicone rubber processing. The exact material compatibility should be confirmed according to the customer's silicone rubber formulation, product requirements, and production process.
The drying tunnel provides a controlled heating environment for the extruded silicone rubber during the required processing and vulcanization stages. The actual conditions depend on the material and production requirements.
Yes. Silicone rubber extrusion is widely used in wire and cable manufacturing. The exact line configuration for silicone-insulated wire depends on conductor type, insulation structure, product size, production requirements, and other technical conditions.
Yes. We can discuss customization based on material characteristics, product requirements, factory layout, automation needs, and production workflow. The final configuration is confirmed before manufacturing.
Typical application areas include new energy, wire and cable, automotive, electrical and electronics, communication, medical products, sealing products, and other industrial applications where silicone rubber is required.
The production cycle depends on the model, configuration, customization requirements, and order quantity. We confirm the production and delivery schedule after the technical details are agreed.
After assembly, we test and inspect the equipment according to the agreed specifications. This allows us to check the machine before it is shipped to the customer's factory.
Standard delivery generally includes the complete agreed machine or production line, necessary components, technical documents, and accessories specified in the order.
We normally use moisture-resistant materials, protective cushioning, and strong export wooden cases or pallets. The final packaging method depends on the equipment structure and transportation requirements.
Payment terms are normally arranged according to the contract. A common arrangement is a deposit before production and the remaining balance before shipment. Exact terms are confirmed with each order.
Yes. Transportation can be arranged by sea, air, or land according to the destination, equipment size, delivery schedule, and customer requirements.
For me, the most important part of a SC-50 New Energy Silicone Rubber Drying Tunnel Vulcanization Production Line is not one isolated machine section. It is how the complete production process works together.
Silicone rubber extrusion requires stable feeding and forming. The drying tunnel needs to provide a suitable processing environment. Vulcanization needs to be matched to the material and product. Cooling and take-up need to coordinate with the upstream process. When all these parts work together, the production line becomes much easier to manage.
This is especially relevant to new energy and wire and cable applications, where manufacturers may require flexible, heat-resistant, electrically insulating silicone rubber products. The right equipment can help make the production process more stable and repeatable.
At Wuxi Shuochuan, we start from the customer's actual application. We confirm the material, product, production process, machine configuration, factory conditions, and delivery requirements before manufacturing. We then assemble, test, inspect, package, and arrange transportation according to the agreed project requirements.
If you are looking for an SC-50 silicone rubber extruder, a new energy silicone rubber production line, or a silicone rubber drying tunnel vulcanization production line manufacturer, I recommend discussing the complete production process with us first. Once we understand what you are producing and how you plan to produce it, we can work toward a more suitable equipment configuration.
Our goal is straightforward: build equipment that can do real work, keep improving our technology, communicate honestly with customers, and help create a stable production process.
