When a wire or cable needs a reliable insulation layer, the wrapping process matters more than many people think. The material itself is important, but the way it is fed, wrapped, controlled, and processed can also affect the final cable structure. This is where our Concentric Thin Film High-Frequency Sintering Mica Machine (Servo) comes into use.

At Wuxi Shuochuan Electromechanical Equipment Manufacturing Co., Ltd., we design and manufacture equipment for wire and Cable Production. Our product range includes high-speed extruders, Automatic Extrusion Production Lines, photovoltaic wire and Cable Production Lines, automotive Wire Production lines, electronic Wire Production Lines, communication cable Production Lines, charging pile cable production lines, take-up and unwinding equipment, wrapping equipment, and related Auxiliary Equipment.

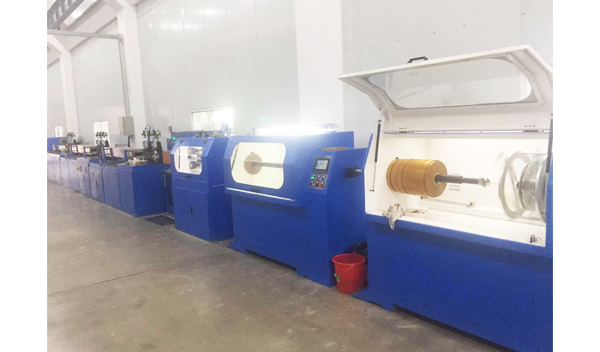

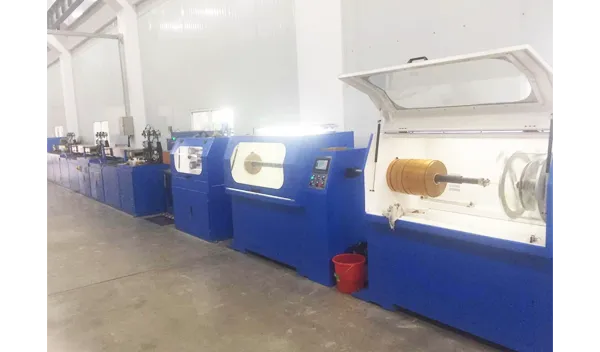

Our concentric thin film high-frequency sintering mica machine is developed for continuous wrapping and related insulation processing. The machine combines a concentric wrapping structure with servo-driven movement, giving us a practical way to manage material feeding and production movement during operation.

The exact configuration can be adjusted according to the customer's wire structure, wrapping material, Production Process, and working conditions. We do not treat every cable project as exactly the same. Before production, we first discuss the actual cable application and then confirm the equipment configuration.

For mica-based insulation applications, material selection also needs care. The IEC 60371 series covers insulating materials based on mica, including mica paper and mica-based products used for electrical insulation. For example, IEC 60371-3-8 specifies mica paper tapes for flame-resistant security cables, while IEC 60371-3-7 covers polyester film mica paper with an epoxy resin binder for single conductor taping.

1. What Is a Concentric Thin Film High-Frequency Sintering Mica Machine?

In simple words, this machine is used to process insulating material around a wire or cable in a controlled and continuous way. The product name contains several important parts: concentric, thin film, high-frequency sintering, mica, and servo.

Concentric refers to the way the wrapping process is arranged around the cable or conductor. The goal is to keep the material path stable and centered during production.

Thin film describes the type of material handling involved in the process. Thin insulation materials require more careful control than thick and rigid materials because they can be affected by tension, alignment, wrinkles, and feeding speed.

High-frequency sintering refers to the heating or bonding process used in the relevant production configuration. The exact heating method and process paraMeters should be confirmed according to the customer's material and cable design rather than assumed from the product name alone.

Mica is an important insulation material in many electrical applications. Mica-based materials are covered by international standards for electrical insulating materials. The IEC 60371 series provides definitions, general requirements, and specifications for different mica-based insulation materials.

Servo is another key part of the machine. Servo-driven equipment allows us to control machine movement more accurately than a simple fixed-speed drive arrangement. In a wrapping line, controlled movement helps coordinate material feeding and the cable production process.

So, rather than looking at this machine as only a mica wrapping machine, we see it as part of a complete wire and cable insulation process. The machine needs to work together with the material, conductor, upstream equipment, downstream equipment, and the production requirements of the customer.

Why does concentric wrapping matter?

A wire is normally a long continuous product. Once production starts, the material keeps moving. If the wrapping material moves from side to side, loses tension, or feeds unevenly, the final insulation layer may not have the consistency that the customer expects.

That is why we pay attention to material alignment and the cable path during equipment design. A stable mechanical structure makes the machine easier to operate and also makes the production process easier to repeat.

Source: IEC 60371-1 and IEC 60371-3 series. These standards define and specify different mica-based insulating materials and applications.

2. How Does the Machine Work?

The basic process is not difficult to understand. We prepare the wire or cable core, install the selected wrapping material, guide the material through the wrapping section, control the material movement, and then carry out the required processing step according to the production configuration.

The actual machine structure can be customized, but a typical working process can be understood in several stages.

Stage 1: Material preparation

Before starting production, the operator prepares the mica or other specified wrapping material. The material must be suitable for the intended cable structure.

This step sounds simple, but it is important. Thin materials can be sensitive to handling. Damaged edges, incorrect material width, poor storage conditions, or unsuitable tension can affect the wrapping process.

Stage 2: Wire or cable feeding

The wire or cable core enters the production line and follows a defined mechanical path. The feeding system needs to keep the product moving steadily.

We pay attention to the relationship between the cable path and wrapping head because the wrapping material needs to follow the cable rather than move independently from it.

Stage 3: Concentric wrapping

The wrapping section applies the selected material around the cable. The concentric structure helps maintain a controlled material path around the product.

Depending on the cable design, the required wrapping method may be different. Some applications require particular overlap or coverage. Therefore, we normally confirm the material, cable construction, and production requirements before finalizing the machine configuration.

Stage 4: Servo-controlled movement

The servo system is used to control machine movement. This is useful when the production process requires coordinated and repeatable motion.

For us, servo control is not simply about adding a servo motor to a machine. The more important point is how the servo system works together with the material feeding and production movement.

Stage 5: High-frequency sintering or related processing

After wrapping, the material can enter the required sintering or bonding process according to the machine configuration and material requirements.

We do not recommend using one fixed process value for every material. Mica-based products, film mica paper, and other insulation materials can have different processing requirements. The actual process should therefore be confirmed through material information, customer requirements, and production testing.

Stage 6: Continuous production

Once the process is stable, the machine can support continuous wire and cable production. The operator monitors the material condition, cable movement, wrapping result, and machine operation during production.

This continuous working method is useful for cable manufacturers because wire production is normally not a one-piece operation. Production Efficiency depends not only on machine speed but also on stable operation over a long working period.

3. Main Features of Our Servo Mica Sintering Machine

Concentric wrapping structure

Our machine is designed around a concentric wrapping concept. This helps keep the wrapping material organized around the wire or cable during continuous processing.

For thin insulation materials, stable movement is especially important. A well-organized material path can make daily operation easier for the production team.

Servo-driven control

The servo system gives the machine controlled movement and supports repeatable operation. For production lines that need coordinated motion, this type of control can be useful.

We also pay attention to the interaction between the servo system, mechanical structure, and material feeding system. Good control is not only an electrical issue. The mechanical parts also need to work together correctly.

Suitable for continuous wire production

Wire and cable production normally involves long lengths of continuous material. Our machine is therefore designed as part of a continuous manufacturing process rather than as a simple standalone hand-operated wrapping device.

Flexible configuration

Different customers can have very different production requirements. Some may focus on electrical wire, while others may produce communication cable, automotive wire, photovoltaic cable, charging cable, or other specialized products.

For this reason, we discuss the cable structure, wrapping material, production requirements, and working conditions before confirming the final equipment configuration.

Practical operator control

Industrial equipment should not be difficult to understand. We try to keep the operating logic clear so that production workers can learn the basic operation without unnecessary complexity.

Designed for integration

The machine can be considered as part of a larger wire and cable production system. Depending on the project, it may work with upstream feeding equipment and downstream take-up or other cable processing equipment.

4. Technical Advantages and Material Considerations

The technical value of a mica wrapping and sintering machine is not based on one single component. It comes from the whole process.

We normally look at five things: material feeding, tension control, cable alignment, machine movement, and process stability.

Material feeding

Thin wrapping materials need a stable feeding path. If the material is pulled too strongly, it may be damaged. If the tension is too low, the material may not stay in the desired position.

This is why material feeding is one of the first points we discuss when a customer asks us to design or configure a machine.

Wrapping consistency

A cable insulation process should be repeatable. The operator should not have to make large manual adjustments every few minutes.

Our goal is to make the machine movement and material path stable enough to support continuous production.

Servo synchronization

Servo control can help coordinate machine movement with the production process. This is useful when the customer needs controlled and repeatable motion.

However, servo control alone does not automatically guarantee a perfect cable. Material quality, machine setup, cable structure, tension, and process parameters all matter.

Mica material requirements

Mica is not simply one universal material. Different mica-based products can have different structures and uses.

IEC 60371-1 provides definitions and general requirements for mica-based insulating materials. Other parts of the IEC 60371 series cover particular materials and applications. For example, IEC 60371-3-7 addresses polyester film mica paper with an epoxy resin binder for single conductor taping.

This is why we prefer to confirm the customer's actual material before making detailed equipment recommendations.

Electrical insulation is a system

Another important point is that the wrapping machine does not determine the entire insulation performance of the finished cable. The material, conductor, wrapping structure, manufacturing process, and final cable design all play a role.

IEC 60626-1:2023, for example, covers definitions and general requirements for combined flexible materials used for electrical insulation. It also states that material selection for a particular application depends on the actual requirements of that application rather than on one specification alone.

5. Applications in Wire and Cable Manufacturing

Our equipment is mainly intended for wire and cable production applications where controlled wrapping and insulation processing are required.

Electrical wire

Electrical wire production often requires stable insulation around the conductor. A controlled wrapping system can become part of the insulation manufacturing process when the selected cable structure calls for wrapped material.

Power cable

Power cable construction can contain several layers, depending on the cable design. Wrapped materials may be used in particular insulation or protection structures.

IEC cable standards show that cable construction can include different layers and components depending on the cable type. For this reason, equipment should be matched to the actual cable design instead of being selected only by product name.

Communication cable

Communication cable production requires controlled manufacturing because the cable structure can contain relatively small and delicate components. Stable material movement can help support consistent production.

Automotive wire

Automotive wire is another possible application area. Automotive cable production often requires repeatable processing and stable quality because the final product may be installed in environments with vibration, temperature changes, and limited installation space.

Photovoltaic wire and cable

Photovoltaic cable production is an important part of our wider product range. Depending on the cable structure, wrapping or insulation equipment can be included in the complete production process.

Electronic wire

Electronic wires can have relatively small dimensions and specific insulation requirements. For these products, controlled material handling becomes especially important.

Charging cable

Charging pile cables and related charging cables are also part of our cable production equipment portfolio. The exact equipment configuration depends on the customer's cable design and required manufacturing process.

Industry reference: IEC 60172:2020 includes test procedures for tape-wrapped winding wires and explains the evaluation of temperature index for certain tape-wrapped wires. It also shows why insulation systems need to be evaluated according to the actual wire and material structure.

6. How We Manufacture and Deliver the Machine

We do not see manufacturing as simply assembling components and sending the machine out. For a custom industrial machine, the work starts before the workshop.

Step 1: Technical discussion

We first discuss the customer's product and production requirements. Important information can include the cable structure, wrapping material, production method, working conditions, and required equipment connection.

This step helps us avoid a common problem in industrial equipment purchasing: buying a machine that looks suitable on paper but does not match the actual production process.

Step 2: Equipment configuration

After the technical requirements are clear, we confirm the machine configuration. The wrapping section, drive system, control system, feeding structure, and related components are selected according to the agreed production requirements.

Step 3: Mechanical manufacturing

Our manufacturing process includes mechanical component preparation, machining, assembly, electrical installation, control system integration, and adjustment.

Because the machine is used in continuous production, we pay attention to the relationship between mechanical movement and electrical control.

Step 4: Assembly and adjustment

After the main components are assembled, we check the machine structure and movement. We then carry out the necessary adjustments according to the agreed technical requirements.

Step 5: Test operation

Before delivery, each machine is assembled, inspected, and tested according to the confirmed technical requirements.

Where practical, we also check the machine's running condition, control response, material path, and general operating stability before shipment.

Step 6: Packaging and shipment

Our typical production and delivery cycle is around 30–90 days after the technical specifications and order details have been confirmed.

For transportation, we can arrange sea freight, rail transportation, or another suitable method according to the destination and equipment dimensions.

For packaging, we normally use protective film, steel frames, wooden cases, or other suitable packaging materials. The purpose is simple: reduce the risk of moisture, dust, impact, and movement during transportation.

7. Why Choose Wuxi Shuochuan for Cable Wrapping Equipment?

There are many manufacturers of wire and cable equipment. We believe the real difference is not only the machine appearance. It is how the manufacturer understands the customer's production process and how carefully the equipment is built and tested.

We understand wire and cable production

Our product range covers more than one type of machine. We work with extrusion, wrapping, take-up, unwinding, and other cable production equipment. This gives us a broader view of the complete production line.

When a customer asks about a wrapping machine, we can therefore look at the upstream and downstream process as well.

We focus on practical equipment

We prefer equipment that production workers can understand and maintain. A machine may have many functions, but if daily operation is difficult, those functions do not provide much value.

Our design approach is to keep the process clear, stable, and suitable for actual factory use.

We support customized configurations

Wire and cable products are not all the same. Different customers may use different materials, structures, production speeds, and working conditions.

For this reason, we discuss the application first and then confirm the equipment configuration.

We have an established quality management approach

Wuxi Shuochuan Electromechanical Equipment Manufacturing Co., Ltd. integrates research and development, manufacturing, and sales. The company has obtained more than ten utility model patent certificates and has passed ISO 19001 quality management system certification according to the company information provided for this product page.

Our company philosophy is simple: Quality First, Continuous Improvement, and Honest Service. We try to apply this idea not only to the finished machine but also to communication, production, inspection, and after-sales support.

We provide support before shipment

We do not want the customer to receive a machine and then discover that important production information was never discussed. Technical confirmation before manufacturing is therefore an important part of our workflow.

Payment terms can be arranged according to the contract, commonly using a deposit and balance before shipment or another mutually agreed arrangement.

Our goal is straightforward: make the equipment match the customer's actual production needs and make the purchasing process easier to understand.

8. Frequently Asked Questions

What is this machine mainly used for?

Our Concentric Thin Film High-Frequency Sintering Mica Machine (Servo) is designed for continuous wrapping and related insulation processing in wire and cable production. It is suitable for applications using mica and other specified wrapping materials according to the customer's cable structure and production requirements.

Can the machine process different wrapping materials?

The machine can be configured according to the material used in the customer's production process. Mica-based materials, film mica paper, and other suitable wrapping materials may have different processing requirements, so we recommend confirming the exact material before equipment configuration.

Why is servo control used?

Servo control provides controlled machine movement and supports repeatable operation. In a continuous wrapping process, coordinated movement can help maintain a stable production process.

Does the machine work with all types of cables?

No machine should be described as suitable for every cable without checking the actual product. Our equipment can be configured for different wire and cable applications, but we need to confirm the cable structure, material, production requirements, and working conditions first.

Can you customize the equipment?

Yes. We can discuss customized configurations according to the customer's production requirements. The final configuration is confirmed after technical communication.

How long does production take?

After technical specifications and order details are confirmed, our typical production and delivery cycle is around 30–90 days. The actual schedule depends on the equipment configuration and project requirements.

How do you test the machine before delivery?

Before shipment, the machine is assembled, inspected, and tested according to the agreed technical requirements. We check the equipment's general operating condition and make the necessary adjustments before packaging.

How do you package the equipment?

We normally use protective film, steel frames, wooden cases, or other suitable packaging methods. The packaging method is selected according to the equipment structure, dimensions, destination, and transportation requirements.

How can the machine be transported?

We can arrange sea freight, rail transportation, or other suitable transportation methods depending on the destination and equipment dimensions.

What information should I provide when asking for a quotation?

It is helpful to provide the cable type, conductor or cable structure, wrapping material, required production process, target production conditions, and any existing line information. If you have drawings or technical documents, we can review them before confirming the machine configuration.

Conclusion: A Practical Solution for Mica Wrapping and Cable Insulation

Our Concentric Thin Film High-Frequency Sintering Mica Machine (Servo) is built around a simple idea: keep the wrapping process stable, controlled, and suitable for continuous wire and cable manufacturing.

The concentric structure helps organize the wrapping process. The servo system supports controlled machine movement. The material handling system is designed around the actual wrapping material and cable structure. The high-frequency sintering or related processing section is configured according to the production requirements.

We also understand that a machine is only one part of a complete cable production system. The final result depends on material selection, cable construction, machine configuration, operating conditions, and inspection.

That is why we prefer to discuss the complete application before manufacturing. Our team can work with customers producing electrical wires, power cables, communication cables, automotive wires, photovoltaic cables, electronic wires, charging cables, and other wire and cable products.

For customers looking for a servo mica wrapping machine, high-frequency mica sintering machine, Concentric Film Wrapping Machine, or mica insulation machine for wire and cable production, we can discuss the application and equipment configuration based on the actual production requirements.

Our typical production and delivery cycle is 30–90 days after technical specifications and order details are confirmed. Before shipment, we assemble, inspect, and test the machine according to the agreed requirements. We can also arrange suitable packaging and transportation according to the destination.

For us, the purpose of industrial equipment is not to make the specification sheet look complicated. It is to help the production team do its job in a stable and practical way. That is the standard we follow when developing and manufacturing wire and cable equipment.

Technical References

• IEC 60371-1:2003 — Specification for insulating materials based on mica — Definitions and general requirements.

• IEC 60371-3-7:1995 — Polyester film mica paper with an epoxy resin binder for single conductor taping.

• IEC 60371-3-8:1995 — Mica paper tapes for flame-resistant security cables.

• IEC 60626-1:2023 — Combined flexible materials for electrical insulation — Definitions and general requirements.

• IEC 60172:2020 — Test procedure for determining the temperature index of enamelled and tape-wrapped winding wires.
